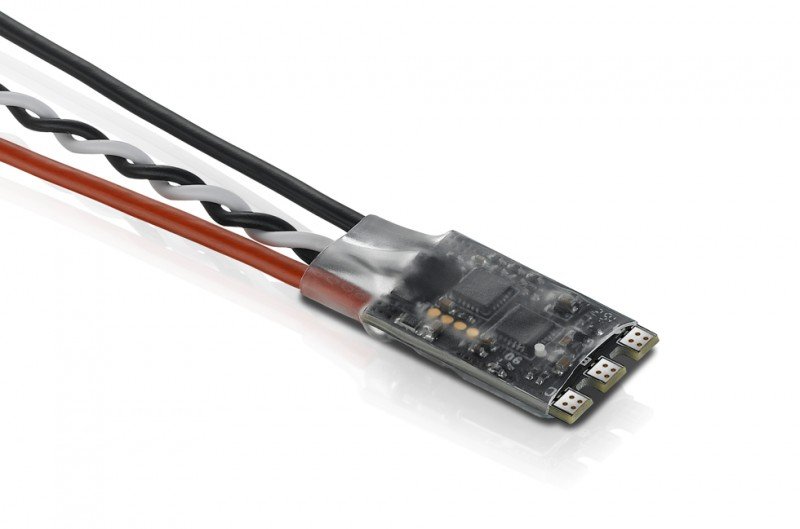

HOBBYWING XRotor micro 35A BLHeli - 30901070  [HW-30901070]

Super Small & Light

ESCs with extremely small size and lightweight are
specially created for competition FPV drones.

Quality Components

The utilization of F396 48MHz MCU, brought in MOSFETs (Toshiba MOSFETs for
20A &35A ESCs, Fairchild MOSFETs for 30A ESCs), ceramic capacitors
and 3-in-1 drive IC , 3-ounce copper, 4 layers of PCBs alongside
quality components guarantees less heat, greater effectiveness and rapider response.

BLHeli Firmware Ready

Users can flash or update the BLHeli firmware via the signal cable (on ESCs), and system 4 ESCs simultaneously after
linking their trip controller on BLHeliSuite software if the trip controller uses the CleanFlight firmware.

Damped Light Mode &
OneShot125 Mode Supported

Damped light mode improves the engine retardation and allows
users to brake the FPV drones better. Active-freewheeling
technology improves driving effectiveness, flight time and temperature
dissipation. The ESCs support OneShot125 high rate throttle
sign and regular throttle sign (within 500Hz) modes.

Twisted-Pair Signal Cable Reduces Interference

The twisted-pair throttle signal cable effectively reduces disturbance manufactured in alert
transmission and makes the journey a lot more stable and reliable.

Specifications

• Cont./Peak Current : 35A/50A
• LiPo Cells : 3-6S LiPo
• BEC production : No

Wires & Connectors

• Output Wires : No wires but solder tabs
• Input Connectors : No
• Output Connectors : No
• Throttle number Calibration : Supported
• Stick Programming : Stick Programming/BLHeliSuite
• DEO : perhaps not Supported
• OneShot Mode : Supported
• Timing : Supported
• Light Color : perhaps not Supported
• Motor Rotation : Supported

Size & Weight

• Size : 36.5x16.7x5.5mm
• Weight : 10g

Applications

• FPVs with 150-330mm Diagonal Wheelbase
