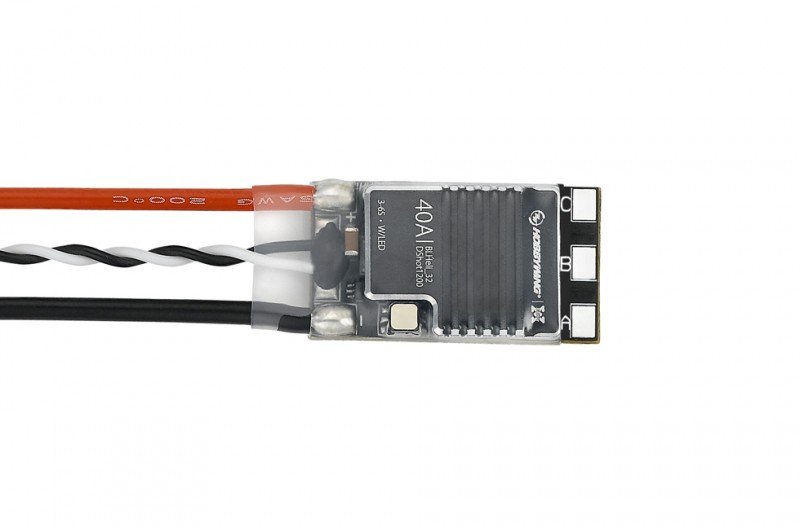

HOBBYWING XRotor Micro 40A BLHeli_32 DShot1200 - 30901015  [HW-30901015]

Powerful Hardware &
Original Third-generation BLHeli_32 Firmware

The utilization of high-performance 32-bit ARM microprocessor (which operates at 48MHz),
brought in high quality MOSFETs (Fairchild) & ceramic capacitors, 3-in-1 drive ICs,
3-ounce copper, 4 layers of PCBs, plus the third-generation BLHeli (BLHeli_32 firmware)
produces an ESC with additional functions & better performance particularly for FPV drones.

Hardware Generated PWM & Damped Light Mode

The ESC firmware utilizes equipment generated engine PWM for smooth throttle response and silent
operation. Damped light does regenerative breaking, causing quickly motor retardation, and it
inherently also does active freewheeling.

Multiple Programmable Items

The original BLHeli_32 firmware permits users to connect four
ESCs to your FC flashed with all the Cleanflight/Betaflight
firmware via sign cables (regarding the ESCs) setting basic
parameters of ESCs at the same time, update the firmware
or adjust advanced parameters on line at the same time.

Multiple Protections

Multiple security functions like engine
lock-up protection, temperature security,
low RPM energy protection, low-voltage
security and present protection effectively
prolong the service life associated with ESC.

Light-emitting Diode Indicator (only the XRotor 40A
BLHeli_32 has it) & Beacon Functionality

The light color associated with LED indicator on ESC is adjustable.
The Beacon functionality, that'll drive the engine to beep if the throttle sign has
been zero for certain time, efficiently helps finding lost crafts.

Specifications

• Cont./Peak Current : 40A / 60A
• LiPo Cells : 3-6S Lipo
• BEC production : No

Wires & Connectors

• Output Wires : No cables but solder tabs
• Input Connectors : No
• Output Connectors : No
• Firmware : BLHeli_32
• ESC Programming : Supported
• Stick Programming : BLHeliSuite
• DEO : Supported
• Throttle number Calibration : Supported
• Oneshot125 Mode : Supported
• Oneshot42 Mode : Supported
• MultiShot Mode : Supported
• Timing : Supported
• Motor Rotation : Supported

Size & Weight

• Size : 32.7x18.4x6.2mm
• Weight : 11.5g

Applications

• 130-300mm FPVs
