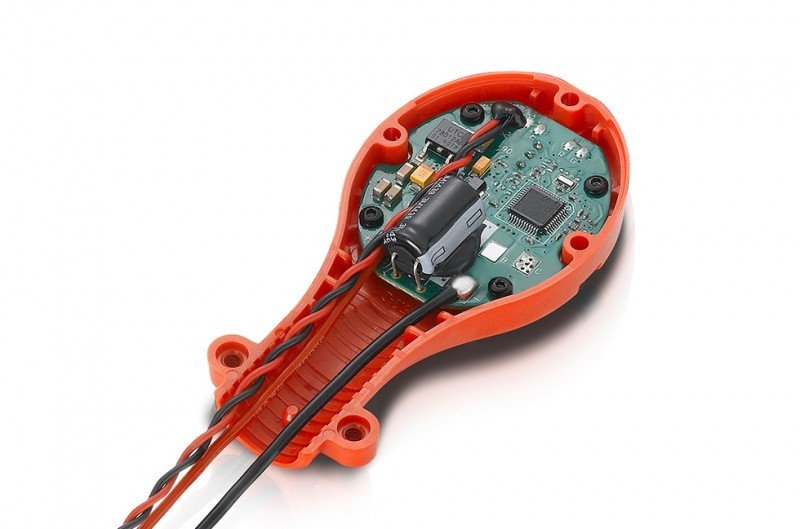

HOBBYWING XRotor PRO 25A Circular (Red Color) - 30902023  [HW-30902023]

HOBBYWING XRotor PRO 25A Circular (Red Color) - 30902023
Price:
USD$35.90
Brand:
Hobbywing
Model:
HW-30902023
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - System - Drone System category
Write a review
alt="HOBBYWING XRotor PRO 25A Circular (Red Color) - 30902023" title="HOBBYWING XRotor PRO 25A Circular (Red Color) - 30902023"
alt="HOBBYWING XRotor PRO 25A Circular (Red Color) - 30902023" title="HOBBYWING XRotor PRO 25A Circular (Red Color) - 30902023"

Simple Installation

Motor can be closely mounted onto the ESC, which greatly simplifies wiring and
installing of the propulsion system.


Popular Choice

The mount is excellently fitted to the popular 16mm
(outer diameter) carbon dietary fiber supply pipe.


Excellent Protection

The incorporated structure associated with the ESC and motor mount has
exemplary dustproof and splash evidence security.


DEO Technology

The DEO (Driving effectiveness Optimization) technology implemented
within the ESC has numerous advantages:
● Active braking. When reducing the throttle amount, the engine will
decelerate quickly. This feature enables pilots to quicker
perform all maneuvers like razor-sharp turns, altitude changes, and
unexpected braking.
● Higher driving effectiveness, longer trip time.
● Lower ESC heat and an even more dependable procedure .
* Different companies call this technology by different names;
“SimonK” calls it “Comp_PWM”, “BLHeli” calls it “Dampaning-light”
and Kontronik calls it “Active Freewheeling”.


Simple to Use

Highly smart and adaptive default settings like
auto-adjusting timing for simple procedure.





Item Specification


Product Number

30902022 (Black)/30902023 (Red)

Specifications

  • Cont./Peak Present : 25A/40A
  • LiPo Cells : 3-6S LiPo
  • BEC production : No

Wires & Connectors

  • Input Wires : Red-18AWG-300mm*1/Black-18AWG-300mm*1
  • Output cables : No
  • Input Connectors : No
  • Output Connectors : No

Features

  • Throttle Range Calibration : Supported
  • Stick Programming : Supported
  • DEO : Supported
  • OneShot Mode : Not Supported
  • Timing : Supported
  • Light colors : maybe not Supported
  • Motor Rotation : perhaps not Supported

Size & Weight

  • Size : 89.3x44.5x20.9mm
  • Weight : 50.5g(w/ Motor Mount)
