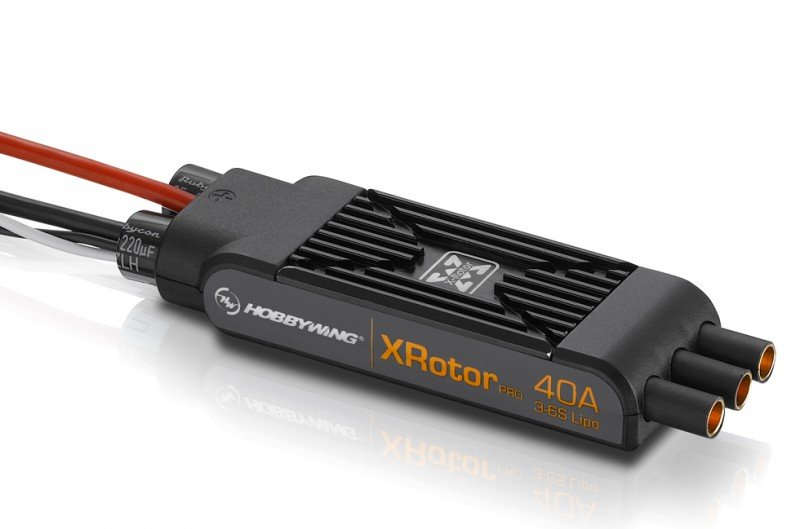

HOBBYWING XRotor Pro 40A (Version B) - 30902041  [HW-30902041]

Newly Designed Shape

A completely new structural design that's enclosed within an
exquisite solid plastic case that delivers the all-round protection
and security for the ESC. The newly designed ESC
can be easily put into a carbon-fiber pipe using the I. D. of 23mm.

Car Timing Adjustment & Preset Parameters for Highly
smart Operation

Auto timing adjustment and preset parameters
relevant to many applications exceptionally
simplify operation and optimize user experience.

Unique Core Program for fast Throttle
Response

The multi-rotor has made the need over ESC response become even harsher than usual.
Our newly unique core system for quick throttle reaction price means an even more stable hover and
quick motion during trip. With the XRotor 3D and professional series ESC’s new fast reaction price,
the ESC can handle difficult and brand new challenges relaxed.

Driving effectiveness Optimization(DEO)
tech for Better Performance

Driving effectiveness Optimization (DEO) Technology is adopted for a higher driving efficiency

Open Cooling Fin

A high-performance aluminum folded fin heat sink is combined
aided by the especially designed heat-conductive slotted structure that
brings exemplary heat-dissipating impact. This will be an incredibly
Simplified Operational Procedure.

Specifications

• Cont./Peak active : 40A/60A
• LiPo Cells : 3-6S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-16AWG-500mm*1/Black-16AWG-500mm*1
• Output cables : No
• Input Connectors : No
• Output Connectors : 3.5mm Gold Connectors (Female)
• Throttle number Calibration : Supported
• Stick Programming : Supported
• DEO : Supported
• OneShot Mode : perhaps not Supported
• Timing : Supported
• Light Color : Not Supported
• Motor Rotation : Not Supported

Size & Weight

• Size : 73.5x21.8x11.0mm
• Weight : 45g

Applications

• 550 Class Multirotors
