HOBBYWING XRotor Pro 40A (Version A) - 30902042  [HW-30902042]

HOBBYWING XRotor Pro 40A (Version A) - 30902042
Price:
USD$41.20
Brand:
Hobbywing
Model:
HW-30902042
Condition:
Brand New
Write a review
alt="HOBBYWING XRotor Pro 40A (Version A) - 30902042" title="HOBBYWING XRotor Pro 40A (Version A) - 30902042"

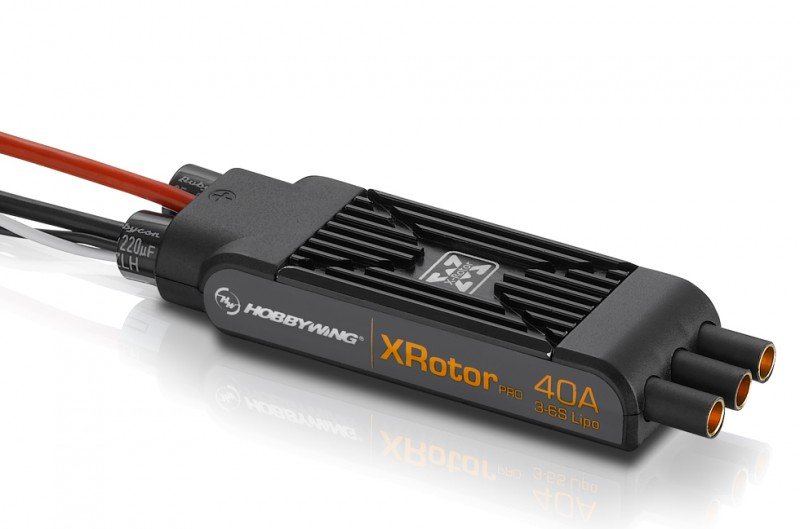

The XRotor Pro 40A Version A 30902042 produced by Hobbywing, is classified in R/C Models - System - Drone System

Newly Designed Shape

A unique structural design that's enclosed within an
exquisite solid synthetic instance that delivers the all-round protection
and protection the ESC. The newly designed ESC
can be easily placed into a carbon-fiber tube using the I. D. of 23mm.


Car Timing Adjustment & Preset Parameters for Highly
Intelligent Operation

Auto timing adjustment and preset parameters
applicable to most applications excessively
simplify operation and optimize consumer experience.


Unique Core Program for fast Throttle
Response

The multi-rotor has made the demand over ESC response become even harsher than typical.
Our newly unique core program for rapid throttle response price means a more stable hover and
swift motion during journey. Aided by the XRotor 3D and Pro show ESC’s brand new rapid response rate,
the ESC are designed for difficult and brand new challenges at ease.


Driving effectiveness Optimization(DEO)
Technology for Better Performance

Driving effectiveness Optimization (DEO) Technology is adopted for an increased driving efficiency


Open Cooling Fin

A high-performance aluminum folded fin temperature sink is combined
using the particularly created heat-conductive slotted structure that
brings exceptional heat-dissipating impact. This is an Extremely
Simplified Operational Procedure.



Specifications

  • Cont./Peak Current : 40A/60A
  • LiPo Cells : 3-6S LiPo
  • BEC Output : No

Wires & Connectors

  • Input cables : Red-16AWG-500mm*1/Black-16AWG-500mm*1
  • Output cables : Black-16AWG-75mm*3
  • Input Connectors : No
  • Output Connectors : 3.5mm silver Connectors (Female)
  • Throttle Range Calibration : Supported
  • Stick Programming : Supported
  • DEO : Supported
  • OneShot Mode : perhaps not Supported
  • Timing : Supported
  • Light colors : maybe not Supported
  • Motor Rotation : maybe not Supported

Size & Weight

  • Size : 66.0x21.8x11.0mm
  • Weight : 50g

Applications

  • 550 Class Multirotors
