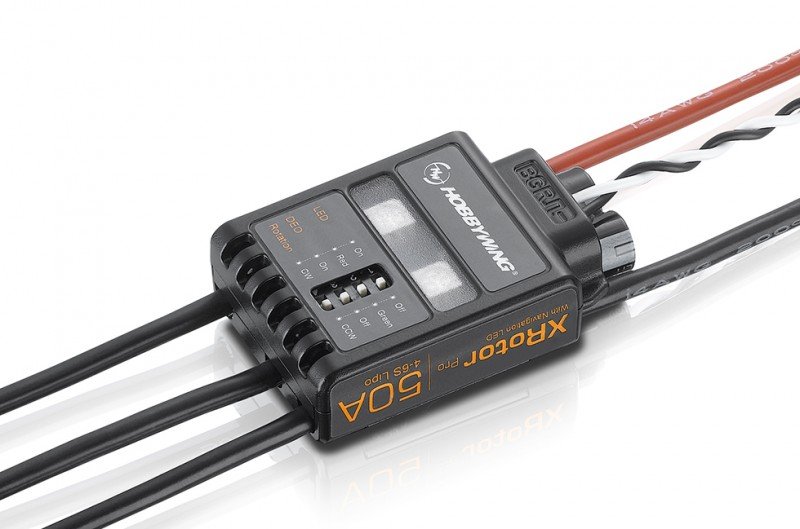

HOBBYWING XRotor PRO 50A - 30902052  [HW-30902052]

Fast Throttle Response

The unique core program used by this XRotor PRO 50A
notably improves ESC throttle reaction.

Simple to Use

Highly smart and adaptive standard settings like
auto-adjusting timing for easy operation.

Multiple benefits (/DEO Technology)

The DEO (Driving effectiveness Optimization) technology implemented in ESC has numerous advantages:
●Active braking. When reducing the throttle quantity, the engine will decelerate rapidly.
This particular feature enables pilots to quicker perform all maneuvers like sharp turns,
altitude changes, and sudden braking.
● greater driving effectiveness, longer flight time.
●Lower ESC heat and a far more reliable operation.

Safer (evening) Flight

The two high-visibility Red/Green navigation LEDs place on ESC
help you save the problem of mounting any extra LEDs.

DIP-switch Design

The DIP switches at the bottom of XRotor PRO 50A control the ON/OFF status and
color (Red/Green) of LEDs, the ON/OFF status of DEO function and motor direction.

Item Specification

Specifications

• Cont./Peak Current : 50A/70A
• LiPo Cells : 4-6S LiPo
• BEC Output : No

Wires & Connectors

• Input cables : Red-14AWG-400mm*1/Black-14AWG-400mm*1
• Output Wires : Black-14AWG-75mm*3
• Input Connectors : No
• Output Connectors : 3.5mm silver Connectors (Female)

Features

• Throttle number Calibration : Supported
• ESC Programming
