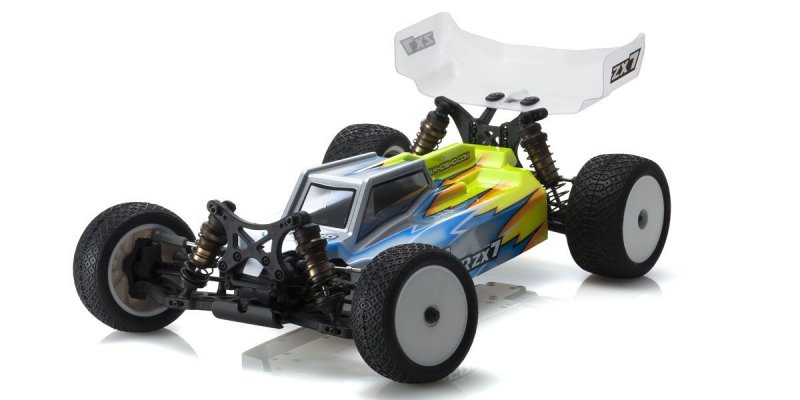

Kyosho 30048 - LAZER ZX7 1/10 EP 4WD Buggy KIT [KY-30048]

Price:

USD$0.00

Brand:

Kyosho

Model:

KY-30048

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - Off-Road - Buggy - Electric Powered category

Write a review

Description

The ZX7 4WD Buggy KIT produced by Kyosho in 1/10 scale AWD drivetrain assembly kit, is classified in R/C Models - Off-Road - Buggy - Electric Powered

Having maintained its brilliant record in major races throughout Japan and around the world with small improvements since its launch, the LAZER ZX-6 has completely developed in to the new ZX-7. Over now the sporting landscape changed significantly with many circuits using high-grip carpet and synthetic turf. Besides, the ability and rate of electric off road automobiles has increased dramatically. While maintaining the signature moderate control and powerful maneuverability associated with the ZX-6, the latest narrow primary framework design regarding the ZX-7 understands optimal rigidity and lighter weight while the brand new front suspension and new aero human anatomy with back wing design generates more downforce. These performance improvements get with the crucial aspects of dependability and durability also wider range for customized settings that'll result in the ZX-7 the key edge in contemporary race.

●Center midship motor and center shaft drive 4WD.
●A7075-T6 grade Duralumin upper deckless chassis.
●Equipped with floating resin servo mount.
●Side stiffener significantly improve framework rigidity in pitch way.
●Sliding motor mount provides simple removal/attachment of engine.
●4-wheel independent double wishbone suspension system has turnbuckle top hands.
●Front and rear include precision universal move shafts.
●Aluminum steering supply promises linear control feel.
●Includes X-GEAR high graphite grease and surprise springs.

Main framework consists of the exact same lightweight and high rigidity A7075 T6 material due to the fact ZX6.6, but plate depth has been paid off from 3.0mm to 2.5mm with increased milling to help make the framework lighter and optimize rigidity. Addition of the latest center stiffener ensures rigidity and improves upkeep by removing front and rear torque rods.

New design short gullwing type front sus arms allow much deeper stroke to generate traction. Along with quick sus hands, wide aluminum sus holders produce outstanding feel the ground.

New position of tie pole mounting gap the front knuckle increases steering angle. Hub carrier enables accuracy setting alterations of caster angle to 7°, 10°, 13° by changing bushes to match different road area conditions.

Aluminum shock caps had been applied to ZX6.6 but the ZX-7 changed to reinforced resin for enhanced stability on jump landings and gratification over rough areas.

Optimized duration of universal shafts minimizes difficulty in drive train and feature pin retention rings on front and back joint sections for reliability in meeting the demands of modern high-power lots.

New design rear upper bulk with reduced mounting of upper arm is integrated to the back suspension that earnestly moves to suit high-grip areas. Brand new design rear sus supply structure permits arm size to be changed with bushes within the sus shaft gap.

Instead associated with the center diff utilized in the ZX6.6, the ZX7 features a brand new lightweight direct slipper incorporating aluminum disk that do not only provides light throttle feel, but also dissipates temperature to attenuate energy loss. Additionally, cup joint covers on center shaft joints reduce using and avoid pin coming out.

Completely brand new design aero body features a center fin, narrow cabin, modified front screen angle with ribs and smoother part components for improved rectification for superior overall controllability and stability.

New back wing design improves traction performance and durability with 1.0mm depth. Bolt on attachment is better and delivers superior traction compared to previous hook & pin mounting.

TECHNICAL INFORMATION

Length 385mm
Width 248mm
Height 145mm
Wheelbase 278mm
Tread(F/R) 210mm / 200mm
Tires(F/R) Sold separately
Gear Ratio 2.5:1(2nd)
Weight 1,650g (approx.)
Motor Sold separately

KIT CONTENT

Unassembled chassis kit set
Clear human anatomy, wing
Hexagonal wrench (1.5, 2, 2.5mm)
Cross wrench
X-GEAR ball high graphite grease, surprise springs

REQUIREMENT TO OPERATE

2ch, 1 servo, 1 ESC R/C system
Motor
Battery for chassis
Tires
Tire inners
Battery charger
Paint for body
Batteries for transmitter
Tools
Damper oil
Differential oil
