Kyosho 30570SP - 1/27 R/C Electric Powered Touring Car - MINI-Z AWD MA-010 Chassis Assembly KIT SP Limited
Price:
USD$190.00
Brand:
Kyosho
Model:
30570SP
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review

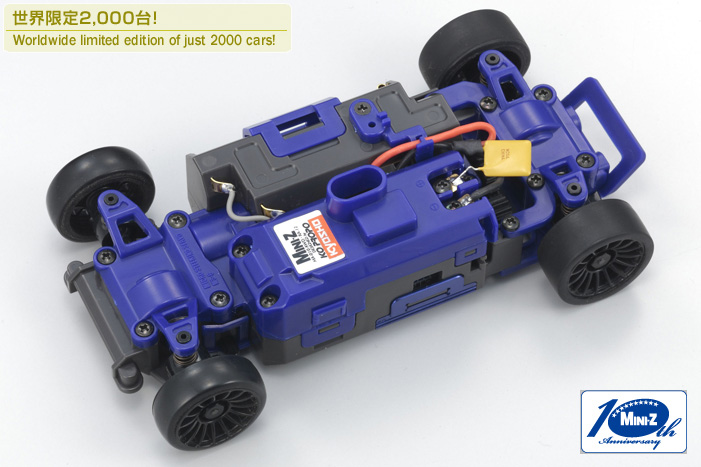

The R/C Electric Powered Touring Car MINI-Z AWD Assembly KIT SP Limited produced by Kyosho in 1/27 scale MINI-Z MA-010 series RTR (Ready-to-Run), is classified in R/C Models - On-Road - Mini-Z

Mini-Z 10 Year Anniversary AWD!
Unique kit without circuit board works with both 27MHz and 2.4GHz R/C systems!

Precision differential gears on front side and rear associated with shaft-driven energy train combine with the 4-wheel separate suspension inside special form of the Mini-Z AWD which includes full ball bearing specifications and aluminum motor owner. Designed purely for racing performance, the AWD chassis additionally produces superb drift driving control. As this special model is produced without circuit board, you can make use of your personal receiver-amp product and transmitter. Suitable for either 27MHz or ASF 2.4GHz units, this kit features a signature blue receiver cover amongst other special features that mark the tenth 12 months anniversary edition associated with Mini-Z. Unique in features and performance, just 2,000 kits are going to be released worldwide causeing the AWD a particular addition towards MINI-Z collection.

<SP Limited Special Features>
No.MDF003GBBlue / grey SP color chassis with a high effectiveness silver plated terminals
 Specially colored receiver cover (for ASF 2.4GHz, not sold individually)
No.MZW1Ball bearing set
No.MDW007-01Aluminum engine owner set
No.MDW008Aluminum motor cover
No.MDW018Ball differential set (front)
No.MDW023Xspeed V engine
 Multi offset wheels
 Nylon tires x 4
 Wide tires x 2

Required for procedure

  • Automobile Scale Collection human anatomy set for MA-010 (wheelbase M / L) *some human anatomy sets for MR-015 could also be used
  • R/C device / MD013 2.4GHz (ASF) or MD010 27MHz+MZW3 MZ crystal set
  • Transmitter / KT-18 (for 2.4GHz) or other brand name transmitters for Mini-Z (for 27MHz)
  • Batteries for transmitter
  • 4 x AAA-size batteries (alkaline or Ni-MH) for framework

Chassis Technical information
Length
127.5 mm(M)/131.5mm(L)
Width
65.0~72.0mm
Height
43.0mm
Wheelbase
90.0mm(M)/94.0mm(L)
Tread (F/R)
56.5~63.5mm / 56.5~61.0mm
Tire(F/R)
Φ25.0mm � 8.5mm / Φ25.0mm � 8.5mm, 11.0mm
Gear Ratio
7.2, 6.4, 6.0, 5.7, 4.3, 5.0, 4.5 : 1
Weight
130g (approx.)
Motor
Xspeed V Engine
