※As the Readyset includes the Syncro KT-531P transmitter operating on FHSS 2.4GHz, it can not be used in combination with ASF/MHS/FHS 2.4GHz systems.
●Readyset package enables model to enjoy directly after buying batteries.
●Fully pre-assembled framework with printed polycarbonate human anatomy.
●Real racing performance will please buggy owners. Great for interior practice.
●Includes Syncro KT-531P transmitter. Allows different setting corrections including steering angle.
●FHSS 2.4GHz R/C system removes the requirement to handle regularity bands.
●Frequency crystals aren't needed or over to 40 cars may be run at precisely the same time.
●Optional gyro unit set (sold individually) can be installed. Gyro sensitivity is by hand adjusted on the chassis.
●Most optional parts currently released for MINI-Z Buggy could be installed.
Shaft driven 4WD and 4-wheel separate suspension are condensed in MINI-Z’s compact size. The framework capabilities effortlessly over little bumps and gaps.
Main components including sealed diff gearbox are included inside the dust evidence framework. 15 ball bearings and a slipper clutch get this machine prepared for severe action.
Flat finish to underside of framework is achieved with contours for each part form. Efficient design allows tie-rods become changed simply by the removal of the framework address.
Includes connector for optional gyro product (sold individually) as well as the small volume allows gyro unit’s sensitivity become by hand adjusted.
4-wheel independent double wishbone suspension built with oil shocks. Delivers surefooted road keeping over a variety of various road surface conditions.
Realizes integrated coupling of drive shafts despite the constraints of its size. Additionally front suspension system hands create a 10-degree skid angle for improved rough-road performance.
Chassis features shell structure with battery boxes for each part. Tall rigidity extracts full effectiveness from suspension system.

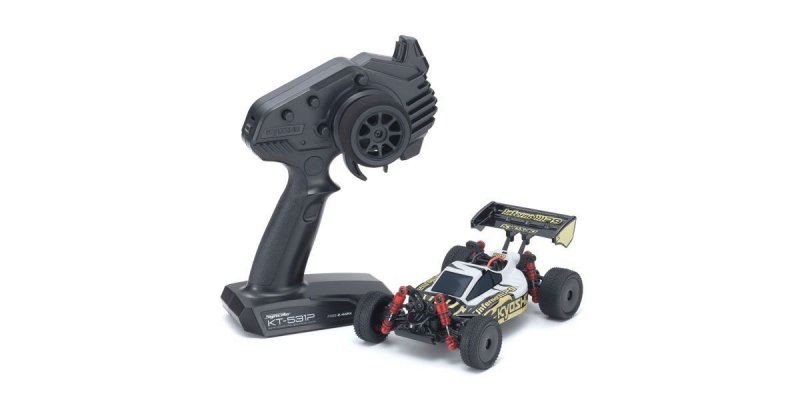

Readyset includes KT-531P transmitter along with other things. Needs only 4 batteries the transmitter to start enjoying practical buggy performance.
Optional Syncro Touch KT-432PT transmitter is recommended if increased precision and control reaction is necessary. Provides more precise establishing freedom with smartphone-like control.
TECHNICAL DATA
- Length167mm
- Width106mm
- Height68mm
- Wheelbase115mm
- Tread (F/R)89mm/89mm
- Tire(F/R)F37 x 13.5mm/F37 x 18.5mm
- Weight200g (approx.)
- Motor130 class
- BatteryAAA alkaline x 4
- R/C SystemKT-531P FHSS 2.4 GHz
KIT CONTENT
- Factory assembled framework with pre-installed R/C unit
- KT-531P transmitter
- Pre-painted polycarbonate human body completed with markings
- Pinion gears (11T, 13T, 15T)
- Spur gears (33T, 35T)
- Pinion gear tool
- Pairing stick
- Wheel wrench
- Spare nuts for wheels
REQUIREMENT TO PERFORM
- AAA alkaline batteries x 4 or NiMH batteries x 4 for chassis
- AAA alkaline batteries x 4 for KT-531P transmitter
