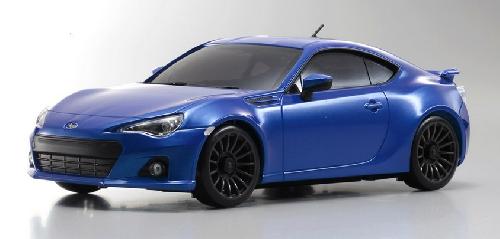

Kyosho 32151MB - MA-020 ASF BCS Subaru BRZ Metallic Blue Body/Chassis ASF 2.4Ghz Set [32151MB]

Price:

USD$253.80

Brand:

Kyosho

Model:

32151MB

GTIN:

4548565232031

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Mini-Z category

Write a review

Description

The ASF BCS Subaru BRZ Metallic Blue Body/ ASF 2.4Ghz Set produced by Kyosho in 1/27 scale MINI-Z MA-020 series RTR (Ready-to-Run), is classified in R/C Models - On-Road - Mini-Z

Because of the precision control traits regarding the shaft drive AWD, the MINI-Z AWD has captured the imagination of micro race fans around the globe. Now with all the MA-020 chassis, performance has developed to a level higher-level. Compatible with nearly all MINI-Z figures, the incorporation regarding the MR-03 front suspension structure minimizes change towards driving traits when wide tread environment is employed. As an example, wheel off set ended up being useful for wide tread figures, but on 020 chassis this is often accomplished by changing the suspension system arm and move shaft, which minimizes extortionate change towards the scrub radius and dramatically lifts cornering performance. Among the key top features of the MR-03 chassis is ‘VCS’ (variable camber suspension) that optimizes camber change in concert with suspension system stroke for effective grip and traction. The proven rear DWS (double wishbone suspension system) is standard and combines with all the revitalized front suspension system to reach free and precise control. The gyro, formerly just available as an optional update, is roofed too. While appreciating the performance of hold tires, a set of drift tires can also be included for an entirely various driving experience. The receiver product comes with RA-23T/FET featuring Chase Mode function. Chase Mode could be set therefore the overtake key can only be properly used a particular number of times per model (optional No.82080/I.C.S. USB adapter and computer are expected). This permits one to use a handicapping system by limiting how many rate bursts each car may use, permitting novices to compete on an even more even footing with experienced drivers. Obviously this model also works together the previous ASF 2.4GHz 2-channel transmitter for the MINI-Z Racer. As this set is packed without transmitter, it really is well suited for current owners of ASF 2.4GHz MINI-Z Racers and makes a cost-effective 2nd or even 3rd addition to your MINI-Z model lineup. The MA-020 chassis combines brand new front side suspension with a DWS device to deliver a brand new standard in AWD touring cars to help you experience.

TECHNICAL DATA

Length: 127.5(M)-135.5mm(L)
Width: 65-72mm
Height: 43mm
Wheelbase: 90(M)-98mm(LL)
Tread (F/R): 56.5-63.5mm / 56.5-61mm
Tire(F/R): 25.0 (sold separately)
Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5 : 1
Weight: 120g (approx.)
Motor: 130-class motor

KIT ARTICLES

Factory assembled framework with R/C unit installed
Pre-painted factory assembled synthetic human body completed with markings
Grip tires (set up)
Drift tires (included)
Pinion gear (15T, 17T, 19T, 21T)
Spur gear for wheelbases: 27T, 29T, 31T each for M, for L, for LL
Parts for changing wheelbase
components set for changing tread
Rear suspension system spacers for chassis height modification
Pinion gear tool
free nut
Wheel wrench
Pairing stick

REQUIRED FOR PROCEDURE

3-channel transmitter for MINI-Z appropriate for ASF 2.4GHz or Perfex KT-18 transmitter (or even utilizing the Chase mode)
AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
Batteries for transmitter
I.C.S. USB adapter (No.82080) for making use of I.C.S. functions and Chase Mode modification.
*Note: Overtake function may use R246 2.4GHz module adapter it is perhaps not assured with transmitters apart from Kyosho or KO 3-channel transmitters. Additionally, the 2-channel KT-18 transmitter may be used without Chase Mode.
