Kyosho 32171 - MA-020VE PRO SP Chassis Set   [KY32171]

Kyosho 32171 - MA-020VE PRO SP Chassis Set
Price:
USD$281.60
Brand:
Kyosho
Model:
KY32171
GTIN:
4548565312207
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"
alt="Kyosho 32171 - MA-020VE PRO SP Chassis Set" title="Kyosho 32171 - MA-020VE PRO SP Chassis Set"

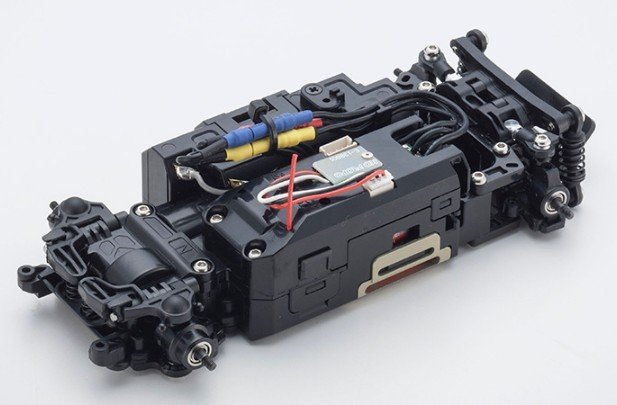

The PRO SP Set produced by Kyosho in 1/27 scale MINI-Z MA-020VE series assembly kit, is classified in R/C Models - On-Road - Mini-Z

Laden up with the powerful mixture of MHS (MINI-Z Hybrid Spread Spectrum) and Xspeed VE brushless motor, the MA-020VE PRO released in November 2015 relaunches as an SP chassis set including the previously optional engine coolant system to be the fastest MINI-Z in history. Laden with similar lightning fast 8500KV Xspeed VE brushless engine energy source whilst the MA-020VE professional, the SP Chassis Set is also built with an aluminum motor sleeve and motor cover to manage heat and extract every drop of energy through the brushless engine. The engine sleeve and engine address are anodized into the premium "SP" color, whilst the usually grey main chassis is anodized in intimidating black. Also, in what became a must-have racing item, the SP framework set includes a gyro device set as standard. Full of high-performance optional components, the MA-020VE professional SP Chassis Set is a base chassis built prepared for rushing battle. As with the MA-020VE professional, the SP Chassis Set works with with current ASF2.4GHz systems. As transmitter setting is immediately done whenever pairing, KT-18 and KO PROPO EX-1 transmitters could also be used.

  • MA-020VE PRO features brushless motor with formerly optional cooling system.
  • SP chassis specifications are identifiable because of the special red anodized motor sleeve and hard anodized motor cover.
  • Main framework is finished in formidable black.
  • Includes optional gyro unit set as standard.
  • Nickel plated hex screws are employed on all primary parts.
  • Features the MHS2.4GHz system using the fastest reaction rate in MINI-Z history.
  • Compatible with ASF2.4GHz systems. *Transmitter is sold individually.
  • Incorporates the "VCS" front suspension through the MR-03.
  • Double wishbone suspension (DWS) equipped on rear.
  • Full ball bearing specifications consist of a total of 14 precision ball bearings.
  • Equipped with wide rear suspension arms.

    • TECHNICAL DATA

  • Length: 126mm
  • Width: 65mm
  • Height: 28.5mm
  • Wheelbase: 90.0mm(M)-98.0mm(LL)
  • Tread (F/R): 65-76mm / 65-76mm
  • Tire(F/R): 25.0x8.5mm / 25.0x11mm(offered individually)
  • Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5 : 1
  • fat: 135g (approx.)
  • Engine: 8500KV Xspeed VE Brushless

    • KIT ARTICLES

  • Pre-assembled chassis set up with R/C product
  • Parts for front tread modification
  • components for wheelbase adjustment
  • Parts for changing to rear long suspension hands
  • Pinion gears: 15T17T19T21T
  • Spur gears: 27T, 29T, 31T each for MLLL
  • Pinion gear tools
  • Spare peanuts
  • Wheel wrench


    NEEDED FOR OPERATION

  • ASF2.4GHz KT-18 transmitter or MHS2.4GHz EX-6 transmitter
  • *Requires a transmitter appropriate for the Mini-Z HYBRID SPREAD SYSTEM (MHS)
  • Auto Scale Collection (human body, tires, tires)
  • 4 x AAA size alkaline or Ni-MH batteries for framework
  • 4 x AAA size batteries for transmitter
