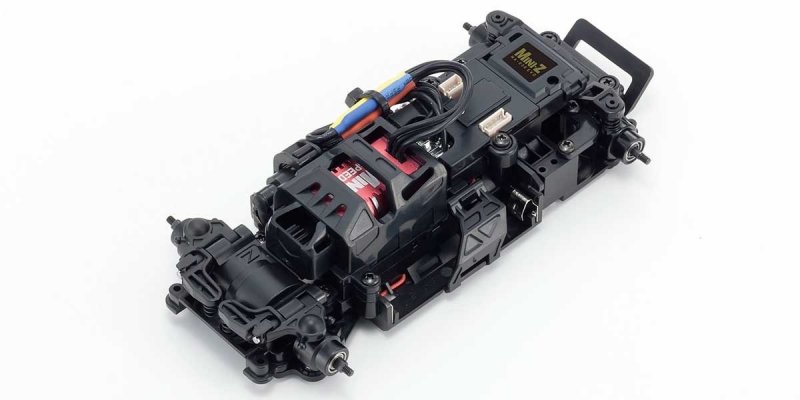

Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set  [KY-32180]

Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set
Price:
USD$181.00
Brand:
Kyosho
Model:
KY-32180
GTIN:
4548565367221
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set" title="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set"
alt="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set" title="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set"
alt="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set" title="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set"
alt="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set" title="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set"
alt="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set" title="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set"
alt="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set" title="Kyosho 32180 - MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set"
The MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Set produced by Kyosho in 1/27 scale MR-03 AWD series assembly kit, is classified in R/C Models - On-Road - Mini-Z

The separable receiver design pioneered regarding MR-03EVO is now available with all the new AWD model MA-030EVO, on the basis of the FWD MA-03F chassis. The MINI-Z had been initially fashioned with a receiver, servo and rate controller, however in the MR-030EVO the receiver ended up being built to be purchased and set up as a separate product to allow the model to be used with other makes of transmitter such as for example KYOSHO (KT18/EX-6/EX-6R/KT-531P/KT-432PT), KO (EX-2/EX-RR), Futaba (T7PX/T7XC/T4PM), Flysky (Noble NB4). In addition, the highest AWD series spec MA-020VE PRO included a 3-stage steering servo device, but the brand new MA-030EVO includes the also higher spec 5-stage gear type from MR-03. Additionally, a special CPU for servo control improves the control speed of positioning feedback and also the updated control program provides top steering feel of any AWD model through improved responsiveness and linear a reaction to motorist control. The one-piece heatsink and aluminum case on the KYOSHO SPEED HOUSE XSPEED 85 (8500KV) brushless motor keeps it cool for optimized performance. The I.C.S. manager permits accuracy environment modifications as well as the switch to a brushed motor, which was extremely hard with previous framework sets. Switch between drift and grip driving designs to see the best in AWD driving performance.


  • MA-030 AWD chassis is based on MINI-Z FWD MA-03F chassis.
  • Chassis set is sold with separate ESC and receiver unit.
  • Includes KYOSHO SPEED HOUSE 85 brushless motor (KV8500).
  • I.C.S manager allows precise setting control and make use of of either brushless or brushed motor.
  • Independent CPU control with an increase of processing speed provides even more precise control.
  • Full ball bearing requirements decreases drive loss.
  • Includes back dual wishbone suspension.
  • Compatible with L(94mm) and LL(98mm) wheelbases. Just LL(98mm) may be used with rear double wishbone suspension system set.
  • Appropriate for MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set for the various MR-03F chassis models

  • TECHNICAL DATA
    *Scale: 1/27.6
    *Length: 126.0mm
    *Width: 65.0 - 76.0mm (adjustable by wheel offset)
    *Height: 36.0mm
    *Chassis Type: MA-030
    *Wheelbase: 94.0mm (only with strut rear suspension system set up), 98.0mm (factory assembled)
    *Weight: 135g
    *Brushless 8500KV
    *Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
    *Tire Diameter (F/R): offered individually
    *Tire Width (F): sold individually
    *Tire Width (R): sold individually
    *Transmitter: perhaps not included
    *Top rate: approx. 17km/h
    *Runtime: approx. 50min.

    KIT CONTENTS
    CHASSIS SET ARTICLES
    *Factory-assembled chassis loaded with EVO primary unit installed
    *Pinion Gears (15T, 17T, 19T, 21T)
    *DWS conversion components *Front tread conversion parts
    *Pinion gear treatment device
    *Spare wheel nuts
    *Wheel wrench
    *Center shaft for L wheelbase
    *Wide back suspension hands for DWS
    *swing shafts (4 x long)
    *Spur gears (27T, 29T, 31T)

    NECESSARY FOR OPERATION
    REQUIRED FOR PROCEDURE
    *8 x AAA batteries
    *Auto Scale Collection (body, wheels and tires)
    *Transmitter
    *MINI-Z EVO receiver unit suitable for the transmitter utilized
