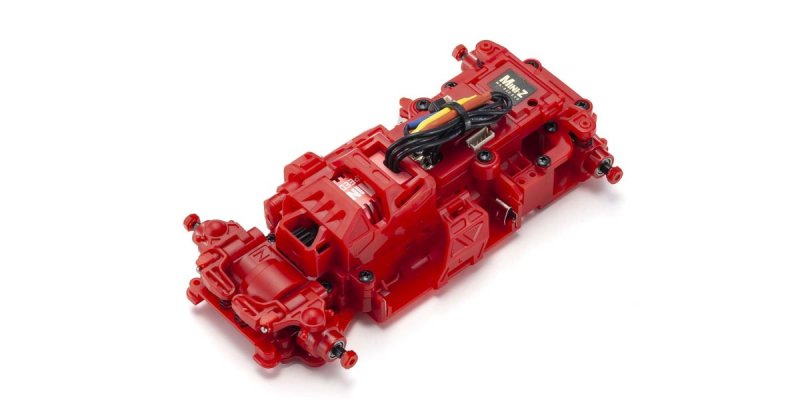

The MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Set Red Limited Limited edition produced by Kyosho in 1/27 scale MR-03 AWD series assembly kit, is classified in R/C Models - On-Road - Mini-Z
The MA-030EVO Red Limited equips with unique red color parts throughout the framework! The MINI-Z was originally fashioned with a receiver, servo and speed controller, however regarding MR-030EVO the receiver was made to be bought and installed as a different device to allow the model to be used with other makes of transmitter like KYOSHO (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO PROPO (EX-2/EX-RR/EX-NEXT), Futaba (T10PX/T7PX/T7XC/T4PM/T4PM Plus), and Flysky (Noble NB4). Additionally, the MA-030EVO is installed with a higher spec 5-stage gear kind servo. Also, a unique CPU for servo control improves the control speed of positioning feedback additionally the updated control system provides top steering feel ever through enhanced responsiveness and linear response to driver control. The one-piece heatsink and aluminum situation regarding KYOSHO SPEED HOUSE XSPEED 85 (8500KV) brushless motor keeps it cool for optimal performance. The I.C.S. supervisor permits accuracy environment alterations including a brushed motor compatibility function. Switch between drift and grip driving styles to experience the ultimate in AWD driving performance.
●MA-030 AWD chassis is dependant on MINI-Z FWD MA-03F chassis.
●Chassis set includes separate ESC and receiver unit.
●Includes KYOSHO SPEED HOME 85 brushless motor (KV8500).
●I.C.S supervisor allows exact setting control and make use of of either brushless or brushed engine.
●Independent CPU control with additional processing speed delivers more exact control.
●Full ball bearing specs decreases drive loss.
●Includes back double wishbone suspension system.
●Compatible with L（94mm） and LL（98mm） wheelbases. Only LL（98mm） can be utilized with back double wishbone suspension set.
●Compatible with MINI-Z AWD MHS/ASF2.4GHz System MA-030EVO Chassis Set Red Limited ?Limited version? for the different MR-03F chassis models
＜Mountable body＞
・MAZDA DEMIO XD Touring (MZP442)
・Toyota PRIUS PHV (MZP443)
・RENAULT MEGANE R.S. (MZP441)
・Honda CIVIC Type R (MZP445)
・SUBARU WRX STI (MZP440)
・NISSAN GT-R R35 (MZP417)
・NISSAN SKYLINE GT-R NISMO R32 (MZP437)
・NISSAN SKYLINE GT-R R34(MZP427）
・MITSUBISHI LANCER EVOLUTION X (MZP439)
・Audi R8 LMS(MZP444)
It is possible to replace the after wheels
・McLaren 12C GT3(MZP226)
・Lamborghini Murcielago LP670-4SV (MZP215)
・McLaren F1 GTR (MZP237) ※DWS perhaps not possible
・Audi R8 LMS 2015/2016 (MZP234)
・Honda NSX(MZP233)
・McLaren P1 GTR (MZP235) ※DWS not possible
・McLaren F1 GTR (MZP232) ※DWS not possible
AWD MA-030 chassis is based on the FWD MINI-Z MA-03F framework. Front midship layout of motor produces superior lateral and vertical weight circulation to understand exceptional maneuvering.
Take away the upper cover of this receiver along with the chassis to set up the receiver devices appropriate for KYOSHO, KO, FUTABA and Flysky transmitters.
Featuring superior VCS front suspension adopted from the past models. Settings can be modified with using any tools just by changing coil springs.
Back suspension system has the exact same strut device because the MA-03F chassis (standard environment at time of delivery). Not only is maintenance simple, settings could be changed with toe control rods and camber knuckles in accordance with conditions.
Precision back double wishbone suspension system set allows setting modifications through toe angle adjustment. May be used rather than normal strut type suspension system based on requirements.
*Only LL size wheelbase may be used with back double wishbone suspension set.
KYOSHO SPEED HOUSE brushless motor XSPEED 85 (8500KV) features a one-piece aluminum instance that realizes efficient temperature dissipation.
TECHNICAL INFORMATION
- Scale: 1/27.6
- Length: 126.0mm
- Width: 65.0 - 76.0mm (adjustable by wheel offset)
- Height: 36.0mm
- Chassis Type: MA-030
- Wheelbase: 94.0mm (only with strut back suspension system set up), 98.0mm (factory assembled)
- Weight: 135g
- Brushless 8500KV
- Gear Ratio: 7.2, 6.4, 6.0, 5.7, 5.3, 5.0, 4.5:1
- Tire Diameter (F/R): sold separately
- Tire Width (F): offered separately
- Tire Width (R): sold separately
- Transmitter: maybe not included
- Top rate: approx. 17km/h
- Runtime: approx. 50min.Length: 126.0mm
KIT CONTENT
- Factory-assembled framework loaded with EVO main product installed
- Pinion Gears (15T, 17T, 19T, 21T)
- DWS conversion parts *Front tread transformation parts
- Pinion gear elimination tool
- Spare wheel nuts
- Wheel wrench
- Center shaft for L wheelbase
- Wide back suspension system hands for DWS
- swing shafts (4 x long)
- Spur gears (27T, 29T, 31T)
REQUIREMENT TO OPERATE
- 8 x AAA batteries
- Auto Scale Collection (body, wheels and tires)
- Transmitter
- MINI-Z EVO receiver product appropriate for the transmitter used
