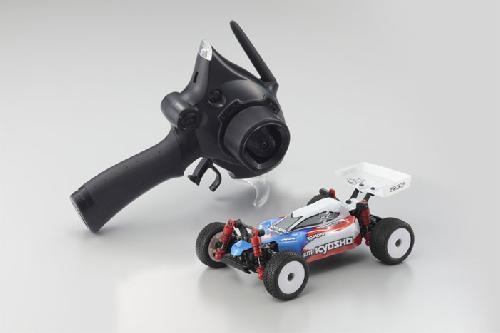

Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset  [KY32282JT]

Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset
Price:
USD$260.00
Brand:
Kyosho
Model:
KY32282JT
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
alt="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset" title="Kyosho 32282JT - 1/24 MB-010 with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo Readyset"
The with ASF 2.4GHz System LAZER ZX-5 FS Jared Tebo produced by Kyosho in 1/24 scale MINI-Z MB-010 series RTR (Ready-to-Run), is classified in R/C Models - On-Road - Mini-Z

Jared Tebo colored human body captures the character of off road race!
Dynamic palm-top size buggy performance packed into a user-friendly Readyset!

Advanced design options that come with the MINI-Z buggy consist of a drive train with 2-differential shaft-drive 4WD and slipper clutch to safeguard the gears, plus 4-wheel independent double-wishbone suspension loaded with oil shocks that surpass all performance objectives from the compact size. The world-class performance for the 1/10 size LAZER ZX-5 FS was focused into a palmtop size dynamo designed with body printed using the movie stars & stripes design of America's renowned buggy racer, Jared Tebo. Many precision components are protected inside the shell framework associated with the chassis that keeps out dirt and provides optimal rigidity. Also included could be the circuit board from the MINI-Z MR-03, particularly tuned for off-road buggy performance. The framework may be fitted with gyro (optional) and it is built with Chase Mode and ICS connectivity. 7-stage gear-type steering servo provides torque and accurate a reaction to deliver the MINI-Z's well-known linear steering feel and control. Completely pre-assembled, simply add batteries to this Readyset to start out race and luxuriate in the advanced level design technology of the MINI-Z in Jared Tebo's dynamic colors.

  • Shaft drive 4WD and 4-wheel separate suspension system, in compact MINI-Z size. Energy over gaps and actions without an extra idea.(photograph is a No.32282RG LAZER ZX-5 FS)
  • Oil shocks on 4-wheel independent double-wishbone suspension system support high end with superior road keeping.(photograph is a No.32282RG LAZER ZX-5 FS)
  • Despite the constraints of its size, the integral coupling regarding the drive shafts etc. realize a 10-degree skid angle for increased operating performance.
  • Shell structure regarding the chassis with battery containers on each part (2 cells in each) provides high rigidity to extract 100percent effectiveness from suspension.
  • Each component inside flat-bottomed framework is made for upkeep effectiveness. Like, tie-rods can be replaced by the removal of the chassis address.
  • Dirt-proof framework including the sealed gearbox protects critical elements to operate with confidence on any area. Specs consist of slipper clutch and 15 ball bearings.
  • I.C.S. function allows accuracy environment of ESC drive regularity, digital inertia and steering traits through a Computer connection.
  • Features room for optional gyro become installed. Detects alterations in running position to immediately proper steering and throttle for more stable control.
  • Readyset comes with KT-18 transmitter and includes every thing except batteries. Just insert batteries and let the dirt fly!

  • Simply include batteries and start rushing using the Readyset package.
  • Fully pre-assembled framework with imprinted polycarbonate human anatomy filled with markings.
  • Genuine race performance to please buggy owners. Great for practice inside.
  • ASF2.4GHz system requires no band allocation. Solitary transmitter may be used with your 2nd if not third model.
  • Requires no regularity crystals and allows around 40 automobiles to be run simultaneously.
  • Ultra quick sign processing understands superior control response.
  • Complete with standard setup at time of delivery. Chase Mode are triggered with just one key. Other settings can be adjusted through a PC utilizing the I.C.S. USB adapter (sold individually).
  • Built with Light-emitting Diode energy level indicator.
  • Array of optional parts are in the offing for release.

< ReadySet Contents >

  • Factory assembled chassis with pre-installed R/C unit
  • KT-18 Transmitter (Black Colored version)
  • Pre-painted polycarbonate human anatomy detailed with markings
  • Pinion Gear x 3 (11T, 13T, 15T)
  • Spur Gear x 2 (33T, 35T)
  • Pinion device
  • Pairing stick
  • Wheel wrench
  • Free wheel peanuts

< Required for Operation >

  • AAA-size alkaline batteries x 4 or NiMH batteries x 4 for chassis.
  • AAA-size alkaline batteries x 4 for KT-18 Transmitter
  • (CHOICE) I.C.S. USB adapter (No.82080) for using I.C.S. functions and Chase Mode adjustment.

< NOTE >

  • Overtake function may utilize R246 2.4GHz module adapter but is not guaranteed in full with transmitters apart from Kyosho or KO 3-channel transmitters.
  • The KT-19 transmitter included in the set cannot run the Chase Mode.

Chassis Technical Information
Length
167mm
Width
106mm
Height
63mm
Wheelbase
115mm
Tread (F/R)
89mm /89mm
Tire(F/R)
Ø37X13.5mm /Ø37X18.5mm
Fat
200g (approx.)
Engine
130-Class
Battery
AAA-size alkaline x 4
R/C System
KT-18
