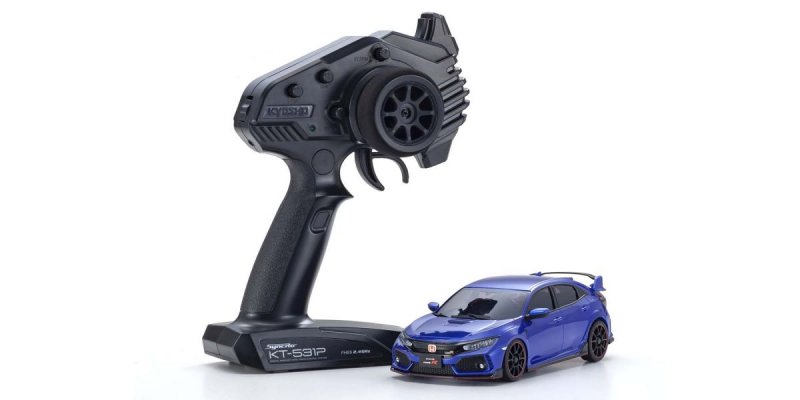

The MINI-Z AWD Honda CIVIC Type R Brilliant Sporty Blue Metallic produced by Kyosho in 1/27 scale MA-020 series RTR (Ready-to-Run), is classified in R/C Models - On-Road - Mini-Z
To bring its dynamic performance to even more drivers, the MINI-Z AWD has become for sale in a Readyset. The MA-020 framework features VCS (variable camber suspension system) regarding the front side that optimizes camber change with suspension stroke and a specially created circuit board. The chassis design enables area for setting up the optional gyro device. The gyro is modified by turning a tiny volume on the chassis to mirror the quantity of steering modification in response to changes in framework position, allowing novices right through to experts to push for their full potential. Completely fitted down with accuracy ball bearings, the high drive effectiveness associated with the MA-020 framework is complimented in Readyset by the initial scale human anatomy and 2.4GHz Syncro KT-531P R/C system that needs no frequency musical organization setting; all at a great value price. Merely set the batteries to savor the excitement of drift driving with all the included set of drift tires. The framework is compatible with the majority of ASC MINI-Z bodies (additional components possibly required for some body styles). The MINI-Z AWD guarantees an original realm of dramatic racing action for you to experience and enjoy.
●MINI-Z AWD Readyset based on MA-020 framework.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitiveness modification function.
●Drift tires are installed as standard.
●Readyset requires just batteries to be ready to use it!
●Features 2.4GHz Syncro KT-531P transmitter that requires no setup of regularity bands.
●Factory completed body comes with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber relative to suspension stroke.
●Coil spring on front suspension system can be simply replaced without tools.
●wide array of optional parts can be acquired become installed.
●Note) Optional ICS can NOT be used. Also, this model is especially designed for the KT-531P transmitter. It is really not appropriate for the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. Its only compatible with the unique gyro product
Developed whilst the ultimate FF activities device, the FK8 Civic Type R recorded the fastest time on Nürburgring circuit (Germany) in May 2017. Advanced exterior aerodynamics was realistically captured in MINI-Z size.
Includes trendy design of Syncro KT-531P transmitter. Features steering / throttle trim including double rate adjustment of steering angle and control the flashing rate of optional LEDs. Besides, the transmitter has a Training Mode feature which limits rate regarding the car for effortless learning (default setting at the time of delivery is Training Mode).
Special AWD Sports framework is based on the MA-02 chassis and features the RA45 product.
Features VCS front suspension that optimizes camber improvement in concert with suspension swing. Replacement of front suspension system coil springs is simple without any tools required.
Built with strut-type back suspension system.
Full bearing specs consist of 14 ball bearings.
Designed with drift tires as standard.
Designed with unique mount space and gyro modification amount the optional gyro unit.
TECHNICAL INFORMATION
- Length 167.0mm
- Width 70.0mm
- Height 52.0mm
- Wheelbase 98.0mm(LL)
- Tread F : 59.5mm R : 59.5mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx8.5mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +1.5mm
- Rear Wheel Offset Narrow +1.5mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
- R / C unit integrated complete chassis
- Painted and marked complete body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- Spare nut
- Wheel wrench
- Pinion elimination device
REQUIREMENT TO RUN
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
