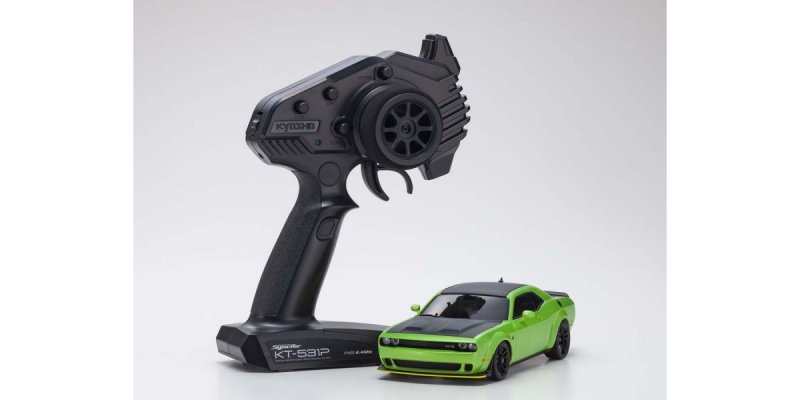

The MINI-Z AWD DODGE CHALLENGER SRT HELLCAT REDEYE Sublime produced by Kyosho in 1/27 scale MA-020 series RTR (Ready-to-Run), is classified in R/C Models - On-Road - Mini-Z
To bring its dynamic performance to even more motorists, the MINI-Z AWD happens to be for sale in a Readyset. The MA-020 framework features VCS (variable camber suspension) on the front side that optimizes camber modification with suspension stroke and a specially created circuit board. The chassis design allows room for installing the optional MZW446 gyro unit. The gyro is adjusted by turning a little volume on chassis to reflect the total amount of steering correction in response to changes in chassis position, allowing beginners right through to experts to operate a vehicle to their complete potential. Fully fitted away with precision ball bearings, the high drive effectiveness for the MA-020 chassis is complimented in Readyset by the initial scale human body and 2.4GHz Syncro KT-531P R/C system that needs no regularity band environment; all at a great value cost. Simply set the batteries to savor the thrill of drift driving with the included pair of drift tires. The framework works with the majority of ASC MINI-Z figures (additional components possibly necessary for someone designs). The MINI-Z AWD guarantees a unique world of dramatic racing action so that you can experience and revel in.
●MINI-Z AWD Readyset predicated on MA-020 framework.
●Special circuit board updated with optimized steering control system.
●Chassis features gyro sensitivity modification function.
●Drift tires are installed as standard.
●Readyset calls for only batteries become prepared to use it!
●Features 2.4GHz Syncro KT-531P transmitter that will require no setup of regularity bands.
●Factory completed body comes with display model quality finish.
●Features VCS (variable camber suspension) that adjusts camber relative to suspension stroke.
●Coil spring on front suspension can be easily replaced without tools.
●wide array of optional parts is available become installed.
●Note) Optional ICS can't be utilized. Additionally, this model is specifically created for the KT-531P transmitter. It isn't compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It is just compatible with the special gyro device (offered individually).
The ‘Hellcat’ is the pure definition of US muscle tissue. Using its 6.2ℓV8 supercharged engine creating a brutal 797 horsepower, the Hellcat may be the high-performance style of Dodge Challenger lineup.
Includes trendy design of Syncro KT-531P transmitter. Features steering / throttle trim as well as dual rate modification of steering angle and control the blinking speed of optional LEDs. In addition, the transmitter has a Training Mode function which limits speed for the automobile for effortless learning (default setting at the time of delivery is Training Mode).
Unique AWD Sports chassis is founded on the MA-02 chassis and features the RA45 product.
Features VCS front suspension that optimizes camber improvement in concert with suspension system swing. Replacement of front suspension coil springs is easy with no tools required.
Designed with strut-type back suspension.
Full bearing specifications consist of 14 ball bearings.
Built with drift tires as standard.
Designed with unique mount area and gyro adjustment amount for the optional MZW446 gyro product (sold individually).
TECHNICAL INFORMATION
- Length 171.0mm
- Width 75.0mm
- Height 50.0mm
- Chassis MA-020-W
- Wheelbase 98.0mm(LL)
- Tread F : 64.5mm R : 62.0mm
- Tire F : 25.0mmx8.5mm R : 25.0mmx8.5mm
- Gear ratio 7.236.385.715.975.344.974.5:1
- Front Wheel Offset Narrow +1.5mm
- Rear Wheel Offset Wide +1.5mm
- R/C System Syncro KT-531P
- Weight 193g
KIT CONTENT
- R / C product integrated complete chassis
- Painted and marked complete body
- Syncro KT-531P transmitter
- Mini pylon
- Pinion gear (15T, 17T, 19T, 21T)
- Spur gear (27T, 29T, 31T)
- Spare nut
- Wheel wrench
- Pinion treatment tool
REQUIREMENT TO OPERATE
- AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
- AAA-size alkaline batteries x 4 for transmitter
