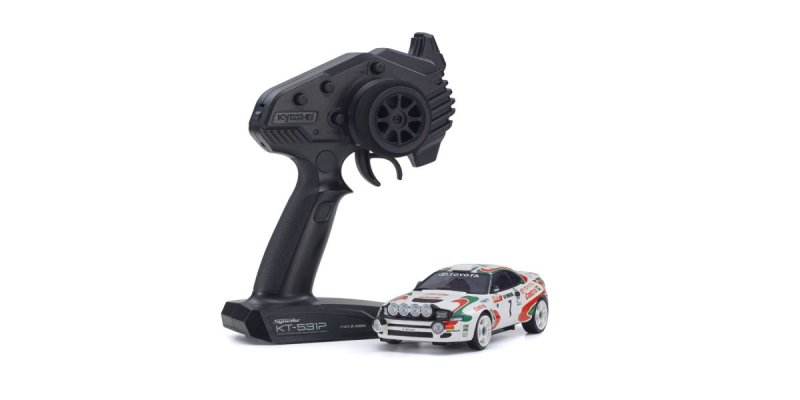

Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen  [KY-32649JK]

Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen
Price:
USD$193.60
Brand:
Kyosho
Model:
KY-32649JK
GTIN:
4548565474707
Condition:
Brand New
Write a review
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"
alt="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen" title="Kyosho 32649JK - MINI-Z AWD Toyota CELICA TURBO 4WD No.7 WRC 1993 Juha Kankkunen"

To bring its powerful performance to even more drivers, the MINI-Z AWD has become obtainable in a Readyset. The MA-020 framework features VCS (variable camber suspension) in the front side that optimizes camber change with suspension system stroke and a specially created circuit board. The framework design enables space for setting up the optional gyro unit(Sold individually: No.MZW446). The gyro could be adjusted by switching a tiny volume on framework to reflect the total amount of steering modification in reaction to alterations in chassis position, allowing novices through to specialists to drive to their complete potential. Completely fitted away with accuracy ball bearings, the high drive effectiveness associated with MA-020 chassis is complimented within the Readyset by the unique scale human anatomy and 2.4GHz Syncro KT-531P R/C system that will require no frequency musical organization environment; all at an excellent value cost. Merely set the batteries to take pleasure from the thrill of drift driving with all the included pair of drift tires. The chassis works with nearly all ASC MINI-Z bodies (additional parts could be required for someone styles). The MINI-Z AWD guarantees a unique world of dramatic race action for you yourself to experience and revel in.

※The individually offered LED light unit set (No.MZW429R) isn't compatible with the Toyota Celica GT-Four RC No.7 WRC 1993 Juha Kankkunen.


●MINI-Z AWD Readyset predicated on MA-020 framework.
●Special circuit board updated with optimized steering control program.
●Chassis features gyro sensitiveness modification function.
●Drift tires are installed as standard.
●Readyset requires only batteries to be ready for action!
●Features 2.4GHz Syncro KT-531P transmitter that requires no setup of frequency bands.
●Factory completed body includes display model quality finish.
●Features VCS (variable camber suspension system) that adjusts camber prior to suspension system stroke.
●Coil springtime on front suspension can be easily changed without tools.
●wide selection of optional parts is available become installed.
●Note) Optional ICS can NOT be utilized. Also, this model is specifically created for the KT-531P transmitter. It's not compatible with the KT-18, KT-19, EX-5UR ASF, EX-6 or EX-6R transmitters. It really is only compatible with the special gyro product (offered individually: No.MZW446).



besides the driver’s title in 1993, Finland’s Juha Kankkunen brought Toyota and Japan its very first World Rally Championship (WRC) manufacturers name. The distinctive red, green and white Castrol colors and 6 fog lights created a formidable style combination.



Includes fashionable design of Syncro KT-531P transmitter. Features steering / throttle trim plus dual price modification of steering angle and control the blinking rate of optional LEDs. Furthermore, the transmitter has an exercise Mode function which limits the speed associated with the automobile for easy learning (the standard setting during the time of shipment is knowledge Mode).



Special AWD Sports framework is based on the MA-02 chassis and features the RA45 unit.



Features VCS front suspension system that optimizes camber change in concert with suspension system stroke. Replacement of front suspension system coil springs is simple with no tools required.



designed with strut-type back suspension system.



Full bearing specs consist of 14 ball bearings.



designed with drift tires as standard.



Equipped with unique mount space and gyro modification volume the optional gyro product (sold individually: No.MZW446).



TECHNICAL DATA

  • Length 169.0mm
  • Width 73.0mm
  • Height 49.0mm
  • Wheelbase 90.0mm(M)
  • Tread F : 61.5mm R : 59.0mm
  • Chassis MA-020-N
  • Front Wheel Offset Narrow +2.5mm
  • Rear Wheel Offset Narrow +-0.0mm
  • R/C System Syncro KT-531P


KIT CONTENT

  • R / C device integral complete chassis
  • Painted and marked complete body
  • Syncro KT-531P transmitter
  • Mini pylon
  • Pinion gear (15T, 17T, 19T, 21T)
  • Spur gear (27T, 29T, 31T)
  • free nut
  • Wheel wrench
  • Pinion reduction tool


REQUIREMENT TO RUN

  • AAA-size alkaline batteries x 4 or Ni-MH batteries x 4 for chassis.
  • AAA-size alkaline batteries x 4 for transmitter
