Kyosho 32782 MR-03VE PRO MM2 Chassis Set  [KY32782]

Kyosho 32782 MR-03VE PRO MM2 Chassis Set
Price:
USD$216.60
Brand:
Kyosho
Model:
KY32782
GTIN:
4548565302215
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"
alt="Kyosho 32782 MR-03VE PRO MM2 Chassis Set" title="Kyosho 32782 MR-03VE PRO MM2 Chassis Set"

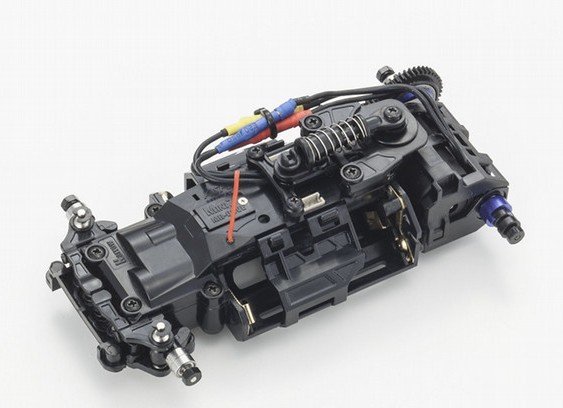

The MR-03VE PRO MM2 Set produced by Kyosho in 1/27 scale MR-03 RWD series assembly kit, is classified in R/C Models - On-Road - Mini-Z

16 times faster than the previous ASF 2.4GHz system + KT-18 transmitter combination and 4 times faster compared to ASF 2.4GHz system + KO PROPO EX-1 combination, the ultrafast response of the MHS 2.4GHz system together with MR-03VE professional chassis set is ideal for JSCC course racers in MINI-Z Cup. With its performance defining midship motor mount, new MM2 engine case allows the longer (94mm) wheelbase to be utilized. The prevailing MM motor situation design can be used aided by the LL (98mm), 3L (102mm) and 4L (106mm) wheelbases, nevertheless the new MM2 engine instance may be used with L, LL and 3L wheelbases. Also, compared to the current RM motor case, mass balance is optimized to improve cornering performance and minimize tipping because of high part on hybrid surfaces. These performance features provide a massive advantage within the JSCC class with all the slim human body needed by the laws. In addition, axle adjustment spacers allow modifications to your back axle shaft height and alongside the new synthetic friction shock, accuracy setting based on road area conditions are possible. The many benefits of the MM2 motor instance complement the ultra-responsiveness associated with MHS2.4GHz system into the advanced level MR-03VE PRO framework for psychokinetic-like response and a linear control feeling that understands the greatest goal of improved lap times.


  • MR-03 chassis set installed with brushless motor enables mid engine mount with L wheelbase.
  • Rear axle shaft height are changed with axle adjustment spacers.
  • Equipped with brand new shape plastic friction shock as standard.
  • MHS 2.4GHz system provides the quickest control response in MINI-Z history.
  • I.C.S. system may be used with traditional manager the VE
  • Features full ball bearings, ball diff (blue anodized), and silver plated battery terminal specifications.
  • Compatible with optional parts for the MR-03 chassis.
  • Unique front suspension system (VCS) changes camber relative to suspension system stroke.
  • Compatible with ASF 2.4GHz system. **Transmitter offered separately.
  • Equipped with digital servo incorporating coreless motor.
  • Coil springtime in the front suspension can be simply replaced by eliminating the springtime stopper with only two screws.

  • TECHNICAL DATA

  • Length: 120-128mm
  • Width: 65-76mm
  • Height: 37.5mm
  • Wheelbase: 94.0-102mm(94, 98, 102)
  • Tread (F/R): 56.5-63.0mm
  • Tire (F/R): 25 x 8.5mm(sold individually) / 25 x 8.5-11mm(offered separately)
  • Gear Ratio: 7.3, 6.3, 5.5, 4.9:1
  • Weight: 135g
  • Motor: Xspeed VE ECO Tune brushless motor

  • KIT ARTICLES

  • MR-03N-MM2 factory put together chassis set up with Xspeed VE ECO Tune brushless engine
  • Front width modification parts
  • Pinion gear (6T, 7T, 8T, 9T)
  • Wheel wrench
  • Pinion tools
  • Spare wheel peanuts


    NECESSARY FOR PROCEDURE

  • ASF 2.4GHz transmitter KT-18, or MHS 2.4GHZ transmitter EX-6 *If utilizing MINI-Z HYBRID SPREAD SYSTEM (MHS), calls for compatible transmitter.
  • Car Scale Collection (body set, wheels, tires)
  • 4 x alkaline batteries or 4 x NiMH batteries for framework
  • 4 x AAA batteries for transmitter
