Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set  [KY32783]

Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set
Price:
USD$233.90
Brand:
Kyosho
Model:
KY32783
GTIN:
4548565330447
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set" title="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set"
alt="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set" title="Kyosho 32783 - MR-03VE PRO 02 Color Limited W/MM Gyro Chassis Set"
The MR-03VE PRO 02 Color Limited W/MM Gyro Set produced by Kyosho in 1/27 scale MR-03 RWD series assembly kit, is classified in R/C Models - On-Road - Mini-Z

Meet up with the 4th variation ‘02 Color Limited’ MR-03VE PRO Series chassis set which incorporates the ultra-fast reaction of this MHS (MINI-Z Hybrid Spread Spectrum) 2.4GHz system which 16 times faster than the previous ASF 2.4GHz system + KT-18 transmitter combination and 4 times faster compared to the ASF 2.4GHz system + KO PROPO EX-1 transmitter combination. The wonderful color scheme for the past generation MR-02 is revived within latest version including blue Upper Cover Set (No.MZ502) and Chassis Small Parts Set (No.MZ402) and grey molded parts into the Chassis Set (No.MZ501) to generate contrasting visuals towards the straight black of the normal MR-03 framework. As well as ball diff and complete ball bearing specs associated with existing VE PRO, this brand new version can be loaded with a gyro product. The MR-03VE PRO 02 colors Limited is an entire race-ready package distinguished by its limited version color scheme and is also suitable for existing ASF 2.4GHz systems and will be combined with the Perfex KT-18 and the KO PROPO EX-1 transmitters.

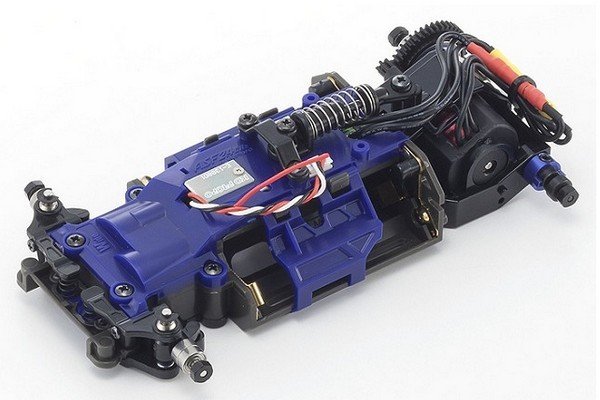

  • MR-03VE PRO Chassis Set installed with brushless engine and gyro unit
  • Color scheme revives the earlier MR-02 style
  • Includes complete ball bearings, ball diff and silver plated battery terminals
  • All MINI-Z Racer figures may be set up. (somebody designs require different motor situation - offered individually)
  • Special circuit board for brushless motor installed with 3 high visibility LEDs
  • Includes digital steering servo installed with coreless motor
  • Equipped with VCS suspension through the MR-03
  • Compatible with MINI-Z MR-03VE professional 02 colors Limited Chassis Set (W-MM) (MHS/ASF Compatible 2.4GHz System) Chassis Set for the MR-03 chassis
  • Ultra quick signal processing speed results in very nearly instantaneous control reaction.

    • TECHNICAL INFORMATION

    • Size 124-133mm (MM framework:125-133mm, RM chassis:124-132mm)
    • Width 65-76mm
    • Height 34-35mm
    • Wheelbase 86-106mm(86,90,94,98,102,106)
    • Tread (F/R) Wide:61.5mm/59mm Narrow:56.5mm/56.5mm (whenever wheel offset is 0)
    • Tire (F/R) 23.5-25x8.5mm / 25-27x8.5-11mm
    • Gear Ratio 7.3, 6.3, 5.5, 4.9 : 1
    • Weight 135g (approx.)
    • Engine KV 8500 Xspeed VE brushless

    KIT CONTENTS

    • MR-03W-MM factory put together chassis installed with Xspeed VE brushless motor
    • One-piece circuit board for brushless engine and RA-27 receiver with ICS connector
    • Parts for changing to RM type motor mount
    • Upper and reduced plates for narrow tread (front side), steering tie rod (included)
    • Front sus spacer for adjustment
    • Pinion gear tool
    • Pinion gear (7T, 8T, 9T)
    • Spare wheel nut
    • Wheel wrench
    • Pairing stick


    REQUIRED FOR OPERATION

    • MHS 2.4GHz transmitter (EX-6R, EX-6) or ASF 2.4GHz transmitter (Perfex KT-18, KO PRPPO EX-1)
    • Auto Scale Collection (body set, tires, tires)
    • 4 x AAA alkaline batteries for transmitter
    • 4 x AAA alkaline batteries or 4 x Ni-MH for framework
