Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)  [KY-32792]

Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)
Price:
USD$192.30
Brand:
Kyosho
Model:
KY-32792
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"
alt="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)" title="Kyosho 32792 - MINI-Z Racer MR-03EVO SP Chassis Set (W-MM/8500KV)"

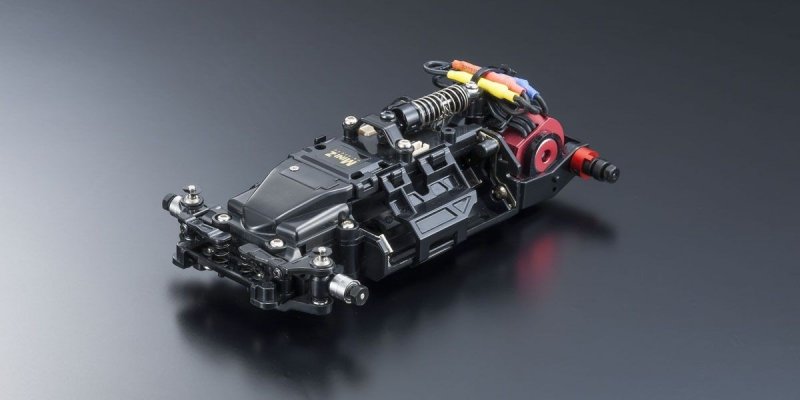

The MINI-Z Racer MR-03EVO SP Set W-MM/8500KV produced by Kyosho in 1/27 scale MR-03 RWD series assembly kit, is classified in R/C Models - On-Road - Mini-Z

The prevailing MINI-Z is set up receiver, servo and ESC by 1 controlled PCB device. Nevertheless the brand new MR-03EVO Chassis Set has separate receiver as 1 unit. By purchasing and installing an optional receiver unit dependent on applied transmitter, it allows for Kyosho (KT-18/EX-6/EX-6R/KT-531P/KT-432PT), KO Propo (EX-2/EX-RR) and Futaba (T7PX/T7XC/T4PM) transmitters. Further, by setting up new CPU which control servo function only, it improves interior feedback of placement control that is 11.2 times faster than existing VE professional models. The newly developed control system realizes the most effective ever steering feeling inside MINI-Z history. The ESC additionally improves the reaction speed in maximum 100 times faster than existing VE PRO models. The included KYOSHO SPEED HOUSE XSPEED 85 (8500KV) brushless engine features a one-piece aluminum situation that provides efficient temperature dissipation for superior cooling. Unlike past framework sets, you'll change to the brushed engine mode although the I.C.S supervisor to install an optional brushed motor. The I.C.S manager also allows more accurate setting changes to be made. Brand new advanced performance features in MR-03EVO take the MINI-Z racing experience to the next level!
The SP edition comes with nickel plated hex screws and an oil shock (MZW432) as standard. Also, the ball diff is specially completed with red anodizing. Additionally, new top arms with various caster perspectives (1 degree/2 degree/3 degree) are included permitting wider environment range.


  • First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
  • Includes new KYOSHO SPEED HOUSE XSPEED 85 brushless motor (8500KV).
  • I.C.S manager features detail by detail steering and throttle parameter modification, along with switching between brushless and brushed modes.
  • Powered by separate CPUs for ESC and receiver, increased interior processing speed contributes to accuracy steering and throttle control.
  • Equipped with ball bearings and red anodized Ball Diff Set II.
  • Newly created split receiver address and front top arm mount render tread modification easier.
  • Compatible with optional components for the MR-03 chassis.
  • Including newly developed front upper arms with caster perspectives (1 degree, 2 level and 3 degree)

    • TECHNICAL INFORMATION

  • 117.7mm
  • 70~76mm
  • 35mm
  • 98.0mm(LL)
  • F:61.5~63.0mm/R:61.5~63.0mm
  • MM2
  • (F/R) φ25×8.5mm()/φ25×8.511mm()_
  • 7.36.35.54.9:1
  • 135g ()
  • KYOSHO SPEED HOME / XSPEED 56 (5600KV)

    • KIT ARTICLES

  • MR-03EVO-W-MM Factory put together chassis with KYOSHO SPEED HOME XSPEED 4100KV brushless motor
  • Parts set for changing front side tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel nuts

    • REQUIRED FOR OPERATION

  • Receiver unit
  • Transmitter appropriate for receiver unit
  • Auto Scale Collection (human body set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
    •
