Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)  [KY-32797]

Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)
Price:
USD$181.00
Brand:
Kyosho
Model:
KY-32797
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Mini-Z category
Write a review
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"
alt="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)" title="Kyosho 32797 - MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV)"

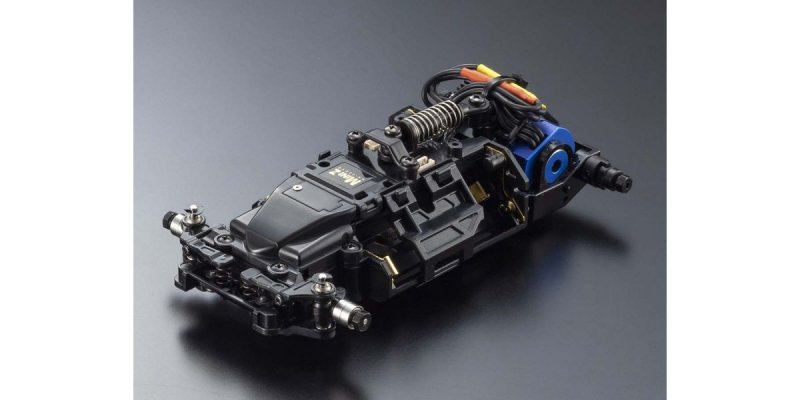

The MINI-Z Racer MR-03EVO Set W-MM/5600KV produced by Kyosho in 1/27 scale MR-03 RWD series assembly kit, is classified in R/C Models - On-Road - Mini-Z

First released in December 2018 the MR-03EVO series delivered amazingly fast processing speed and showcased a separate receiver board that supplied the flexibleness of transmitter option. 2 yrs after its stunning debut, the MR-03 EVO lineup is strengthened with a race-based chassis. So far the speed range setting ended up being KV8500 for wide chassis, but it was paid down an amount to KV5600. While retaining the total bearing specs and Ball Diff Set II, align the base framework utilizing the brand new standard speed range and open a wider band of users. From suitable receiver units : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up through the Readyset. Possibly the MR-03EVO chassis set’s greatest benefit usually it is also coupled with a brushed motor (No.MZ9E, sold individually) to adapt to a straight wider array of driving conditions.

●First MINI-Z MR-03 Chassis Set that adopts split ESC and receiver design.
●Includes brand new KYOSHO SPEED HOME XSPEED 56 brushless motor (5600KV).
●I.C.S supervisor features detailed steering and throttle parameter modification, in addition to switching between brushless and brushed modes.
●Powered by independent CPUs for ESC and receiver, increased interior processing rate contributes to precision steering and throttle control.
●Equipped with ball bearings and Ball Diff Set II. ＊Newly created split receiver address and front top arm mount render tread modification easier. ＊Compatible with MINI-Z Racer MR-03EVO Chassis Set (W-MM/5600KV) the MR-03 framework.

On the basis of the MR-03VE PRO framework, newly created separate receiver address and front top arm mount render tread modification easier.

Receiver product are in the offing for KYOSHO, KO, FUTABA and Flysky transmitters and can be attached/detached by detatching receiver address from the upper chassis.

Brand new KYOSHO SPEED HOUSE brushless motor (5600KV) features a one-piece aluminum situation that realizes efficient heat dissipation.

Built with Ball Diff Set II that reduces fat of aluminum components on spur gear part and optimizes balance regarding the hub side. This might be a must-have product and is utilized usually in competition-level race.

Comprehensive ball bearing requirements reduce drive loss.



TECHNICAL DATA

  • Length 123.5mm
  • Width 70~76mm
  • Height 35mm
  • Motor Mount MM
  • Wheelbase 98.0mm(L)
  • Tread F:61.5~65.0mm/R:61.5~65.0mm
  • Tires (F/R) 25x8.5mm (offered separately)/25x8.511mm (offered separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (approx.)
  • Motor KYOSHO SPEED HOUSE / XSPEED 56 (5600KV)


KIT CONTENT

  • MR-03EVO-W-MM Factory put together framework with KYOSHO SPEED HOME XSPEED 5600KV
  • Parts set for changing front tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel peanuts


REQUIREMENT TO PERFORM

  • Receiver unit
  • Transmitter suitable for receiver unit
  • Auto Scale Collection (human anatomy set, tires, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
