Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)  [KY-32798]

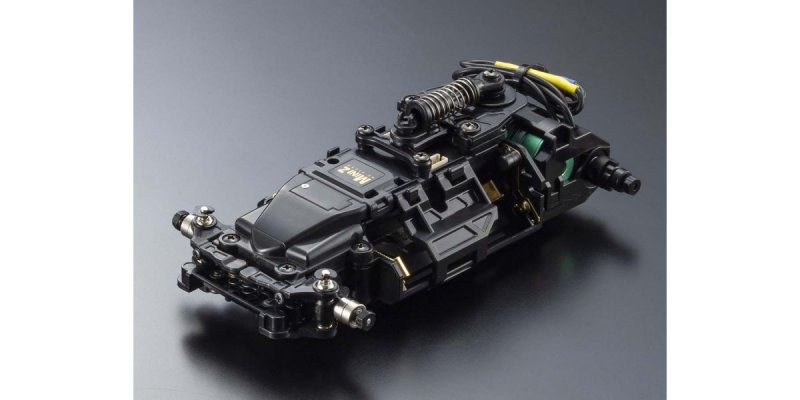

Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)

Price:

USD$181.00

Brand:
Kyosho
Model:
KY-32798
Condition:
Brand New
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
alt="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)" title="Kyosho 32798 - MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV)"
Write a review
The MINI-Z Racer MR-03EVO Set N-MMKV produced by Kyosho in 1/27 scale MR-03 RWD series assembly kit, is classified in R/C Models - On-Road - Mini-Z
First released in December 2018 the MR-03EVO series delivered amazingly fast processing rate and showcased a different receiver board that provided the flexibility of transmitter choice. 2 yrs following its stunning first, the MR-03 EVO lineup has been strengthened with a race-based framework. Until now the speed range environment had been KV5600 for wide chassis, but it happens to be reduced a level to KV4100. While retaining the entire bearing specifications and Ball Diff Set II, align the beds base framework because of the new standard speed range and start a wider number of users. Through the compatible receiver devices : RA-40 (EX-6R / EX-II / EX-RR); RA-41 (KT-531P / KT-432PT); RA-42 (Futaba T7PX / T7XC / T4PM), and RA-43 (Flysky Noble NB4), the RA-41 provides the optimal step-up from Readyset. Possibly the MR-03EVO chassis set’s greatest advantage is that it is also coupled with a brushed engine (No.MZ9E, offered individually) to conform to a straight wider range of driving conditions.

●First MINI-Z MR-03 Chassis Set that adopts separate ESC and receiver design.
●Includes new KYOSHO SPEED HOUSE XSPEED 41 brushless engine (4100KV).
●I.C.S supervisor features detailed steering and throttle parameter adjustment, also switching between brushless and brushed modes.
●Powered by independent CPUs for ESC and receiver, increased interior processing rate plays a part in accuracy steering and throttle control.
●Equipped with ball bearings and Ball Diff Set II.
*Newly designed separate receiver cover and front top supply mount render tread adjustment easier. *Compatible with MINI-Z Racer MR-03EVO Chassis Set (N-MM2/4100KV) the MR-03 framework.

On the basis of the MR-03VE PRO chassis, newly created split receiver address and front top supply mount make tread modification easier.

Receiver product are in the offing for KYOSHO, KO, FUTABA and Flysky transmitters and will be attached/detached by removing receiver address from upper chassis.

New KYOSHO SPEED HOUSE brushless engine XSPEED 41(4100KV) features a one-piece aluminum instance that realizes efficient heat dissipation.

Built with Ball Diff Set II that reduces weight of aluminum parts on spur gear side and optimizes balance in the hub part. This is certainly a must-have item and is utilized frequently in competition-level racing.

Comprehensive ball bearing requirements minimize drive loss.



TECHNICAL DATA

  • Length 119.5mm
  • Width 70~76mm
  • Height 38mm
  • Motor Mount MM2
  • Wheelbase 94.0mm (L)
  • Tread F:61.5~65.0mm/R:61.5~65.0mm
  • Tires (F/R) 25x8.5mm (offered separately)/25x8.511mm (offered separately)
  • Gear Ratio 7.36.35.54.9:1
  • Weight 135g (Body / tires / wheels not included, battery included.)
  • Motor KYOSHO SPEED HOME 4100KV


KIT CONTENT

  • MR-03W-MM2 Factory assembled framework with KYOSHO SPEED HOUSE KV4100 brushless motor
  • Parts set for changing front tread
  • 6T7T8T9T Pinion gears
  • Wheel wrench
  • Tools for pinion gears
  • Spare wheel peanuts


REQUIREMENT TO PERFORM

  • Receiver unit
  • Transmitter suitable for receiver unit
  • Auto Scale Collection (human body set, wheels, tires)
  • AAA x 4 alkaline batteries or Ni-MH batteries for chassis
  • Batteries for transmitter
