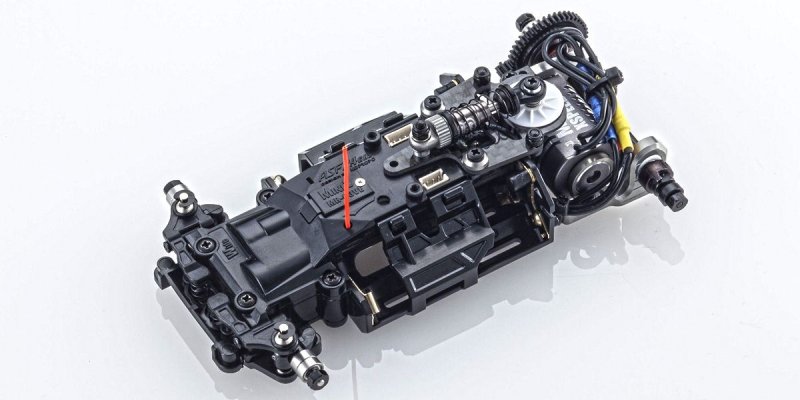

MINI-Z MR-03VE PRO GP Limited Chassis Set
The Kyosho 32880 MINI-Z MR-03VE PRO GP Limited chassis set is a factory-assembled MR-03 platform built around the Xspeed VE PRO brushless motor and tuned hardware intended for scale-electric track use. The layout and parts selection focus on control response, cooling, and adjustability suitable for competitive MINI-Z running and lap-time tuning.
Key hardware carried over from the MR-03VE PRO lineage includes the newly developed Team ORION Xspeed VE PRO brushless motor with a one-piece aluminium case and heatsink to improve thermal dissipation, a hard-anodized MML aluminium motor mount to lower the centre of gravity, MML roll shock for broader setup options, and a ball differential for predictable corner behaviour. Electrical connections use gold-plated motor and battery terminals to maintain clean power delivery within the compact chassis.
Control compatibility covers both MHS and ASF 2.4GHz ecosystems. When paired with a full MHS setup including the Syncro EX-6, the MHS link provides the fastest response in MINI-Z history according to the product literature; using the KT-18 transmitter will revert the chassis to standard ASF behaviour. Note that transmitter and body set are sold separately.
Installation and tuning notes: the chassis is supplied factory assembled with the brushless motor installed, and includes multiple pinion sizes to adjust effective gear ratio. The front coil spring can be removed and changed by taking out two retaining screws, enabling quick front-end rate changes. Ball diff preload, roll shock adjustments, and the included pinion choices provide a practical tuning range for track conditions without requiring additional machining.
Packing includes
- MR-03W-MML factory assembled chassis with Team ORION Xspeed VE PRO brushless motor
- Pinion gears 6T, 7T, 8T, 9T
- Wheel wrench
- Pinion gear tool
- Spare wheel nuts
Specifications
- Item MINI-Z MR-03VE PRO GP Limited chassis set
- Model Number 32880
- Motor Team ORION Xspeed VE PRO brushless (KV12000)
- Motor mount MML aluminium hard anodized
- Diff Ball differential, black anodized
- Dimensions Length 117.7mm, Width 70–76mm, Height 35mm
- Wheelbase 98.0mm (LL)
- Tread (F/R) 61.5–63.0mm
- Tire sizes 25×8.5mm or 25×8.5–11mm (sold separately)
- Gear ratio 7.3, 6.3, 5.5, 4.9:1
- Weight 135g (approx.)
- Steering Digital steering servo with coreless motor included
Compatibility
- Compatible with MINI-Z MR-03 chassis and MR-03VE PRO GP Limited parts set
- Compatible with MHS and ASF 2.4GHz systems, transmitter sold separately
- Requires compatible MHS transmitter (e.g., Syncro EX-6) for full MHS performance, KT-18 uses ASF mode
This chassis set suits modelers seeking a compact, brushless-equipped MR-03 package with ready-to-tune hardware. Use the supplied pinions and roll shock adjustments to match motor gearing and handling to track conditions, and pair with the appropriate transmitter and Auto Scale body to complete the car for on-track running.
