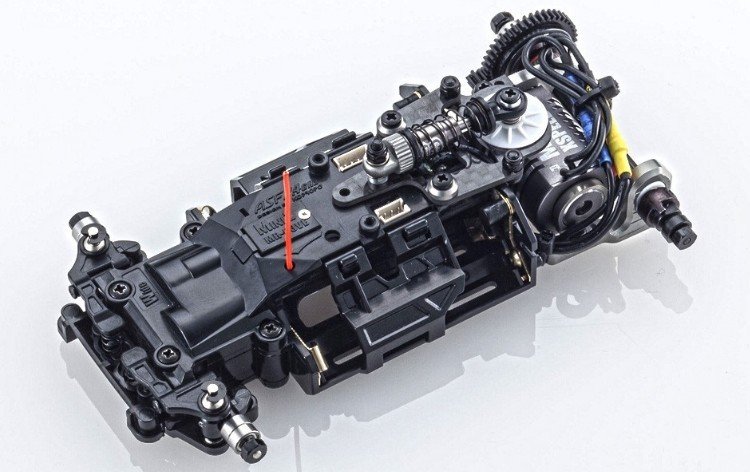

The MR-03VE PRO Limited Set MR-03 with Hybrid/ASF Compatible 2.4GHz System produced by Kyosho in 1/27 scale MR-03 RWD series assembly kit, is classified in R/C Models - On-Road - Mini-Z

Launching the 3rd form of the MR-03VE professional, the “GP Limited” features the ultra-fast MHS2.4GHz system that delivers a reply speed 16-times faster than the existing ASF2.4GHz + KT18 transmitter combination and 4-times faster compared to ASF2.4GHz system + KO PROPO EX-1 transmitter combination. Equipped with the newly developed Xspeed VE PRO brushless engine that incorporates a one-piece aluminum instance and heatsink, this dynamic 12000KV specification motor is held cool to extract maximum performance to make the quickest speeds in MINI-Z history. Additional features are the previously optional MML aluminum motor mount to lower the biggest market of gravity and enhance heat dissipation even further, MML roll surprise that increases setting flexibility, and ball diff for improved cornering and operating performance. Previously optional parts included as standard inside “GP Limited” are anodized in a special color to help you enjoy incredible performance within uniquely styled device.

●The first MR-03 chassis set equipped with the newly developed Xspeed VE PRO brushless motor (12000KV).
●Features hard anodized MML aluminum motor mount and MML roll shock.
●Gold plated motor & battery terminals deliver efficient power.
●MHS2.4GHz system provides the quickest control response in MINI-Z history.
●I.C.S. system may be used with all the existing manager the VE.
●Features full ball bearing specifications with ball diff (black anodized).
●Compatible with MINI-Z MR-03VE professional GP Limited (MHS/ASF Compatible 2.4GHz System) Chassis Set the MR-03 chassis.
●Front suspension system VCS optimizes camber according to suspension stroke.
●Compatible with ASF2.4GHz system. Transmitter sold individually.
●Includes digital steering servo with coreless motor.
●Coil spring on the front suspension can be simply changed by removing the springtime stopper with only two screws.



Features newly developed Xspeed VE PRO brushless motor (12000KV) with built-in one-piece high temperature dissipating heatsink aluminum case.

Hard anodised device cut MML aluminium engine mount. Realizes reduced engine mount and improved traction performance.

Newly designed cup fibre reinforced resin front suspension system (upper / lower) .

Equipped with ball diff that understands smooth differential rotation. Anodized within the GP LIMITED’s unique black color.

Realizes 4-times the reaction speed when compared with ASF2.4GHz system + KO PROPO EX-1 combination. Response rate and linear controllability subscribe to faster lap times.

Ultrafast response associated with MHS2.4GHz system can only just be realized in conjunction with the optional Syncro EX-6. Whenever combined with the KT-18 transmitter, requirements revert to mainstream ASF2.4GHz system.

TECHNICAL INFORMATION

  • Length
  • 117.7mm
  • Width
  • 70-76mm
  • Height
  • 35mm
  • Wheelbase
  • 98.0mm(LL)
  • Tread (F/R)
  • 61.5-63.0mm
  • Tire(F/R)
  • 25x8.5mm (sold individually) / 25x8.5-11mm (sold individually)
  • Gear Ratio
  • 7.3, 6.3, 5.5, 4.9:1
  • fat
  • 135g (approx.)
  • Motor
  • Team ORION Xspeed VE PRO (KV12000)


KIT CONTENT

  • MR-03W-MML factory assembled chassis set up with Team ORION Xspeed VE PRO brushless motor
  • Pinion gear (6T, 7T, 8T, 9T)
  • Wheel wrench
  • Pinion gear tool
  • free wheel peanuts


    REQUIREMENT TO OPERATE

  • ASF2.4GHz transmitter KT-18, or MHS 2.4GHZ transmitter EX-6
  • * needs suitable transmitter if making use of MINI-Z HYBRID SPREAD SYSTEM (MHS).
  • Automobile Scale Collection Body (human body set, wheels, tires)
  • 4 x AAA-size alkaline batteries or Ni-MH batteries for framework.
  • 4 x AAA batteries for transmitter
