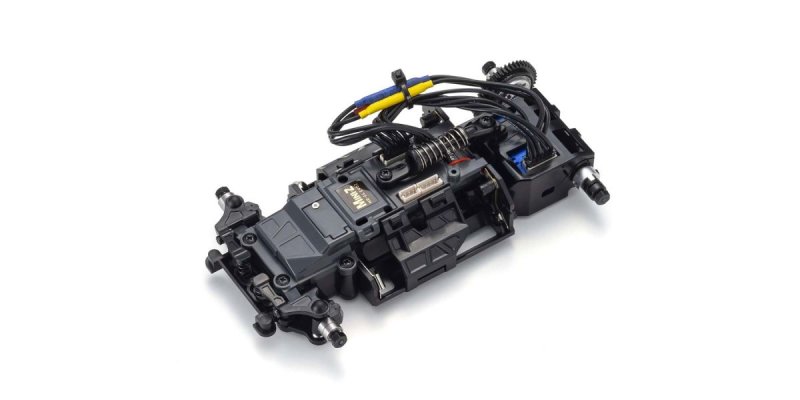

Kyosho 32891 - MINI-Z Racer MR-04EVO2 Chassis Set (W-MM/5600KV)  [KY-32891]

- While keeping elements of the superb MR-03 layout, the latest MR-04EVO2 framework achieves significant performance improvements with changes on front suspension and a lesser C of G that work in synergy with a sensored brushless engine. Both narrow and wide tread settings are available by changing the reduced and top plates in the front side as well as the steering tie rod. Adjustable wheelbase permits chassis setting in accordance with physical stature.

- While camber angle is optimized during cornering with the move regarding the current top arm design, the leading suspension system uses the brand new kingpin-integrated knuckle to further improve camber security. Geometric revision of caster and trail an such like. provides more linear maneuverability. New spec front springs the MR-04 with various hardness can be found as options.

- Front knuckle design features incorporated kingpin with optimized clearance with the kingpin ball for smoother operation. Ball bearings have already been changed to 3mm internal diameter for reduced rotational resistance.

- All 7 ball bearings are 3mm interior diameter for lower rotational opposition to attenuate friction loss.

- New potentiometer provides accuracy and durability with a completely redesigned steering system to realize the very best reaction and precision in reputation for the MINI-Z. The greater amount of exact steering control program allows different settings utilizing the MR-04’s exclusive I.C.S. computer software.

- Ball differential included as standard optimizes the rotational differences between left and right rear tires when turning. Additionally provides moderate slip action to improve traction whenever excessive load is used. Silver clear anodized finish to aluminum parts produces a formidable style to complement performance.

- the latest unit additionally supports high-speed communication with different high-end transmitters and receivers to understand unprecedented control response. Achieves transmission rates of 0.99ms with KO units (ADV mode) and 0.9ms with Futaba devices (EVO2 mode). *Previously 2.6ms ~ 3.0ms

TECHNICAL DATA

• Length 124.5mm
• Width 72-76mm
• Height 31mm
• Motor Mount MM
• Wheelbase 98.0mm (LL)
• Tread(F/R)63.5-65.0mm/61.5-65.0mm
• Gear Ratio 7.3/6.3/5.5/4.9:1
• Weight 135.5g (Body / tires / wheels perhaps not included.)
• Motor KYOSHO SPEED HOME XSPEED 56 (KV5600)

KIT CONTENT

• MR-04 EVO2-W-MM Factory assembled chassis with KYOSHO SPEED HOME KV5600 brushless motor
• Parts set for changing front side tread
• 6T/7T/8T/9T Pinion gears
• Wheel wrench
• Tools for pinion gears
• Spare wheel nuts

REQUIREMENT TO PERFORM

• Transmitter
• Receiver device (suitable for EVO/EVO2)
• ASC
• AAA x 4 batteries for chassis
• Batteries for transmitter
