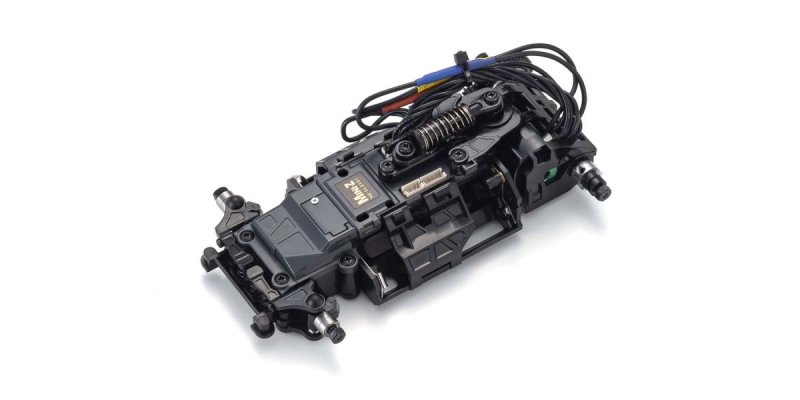

Kyosho 32892 - MINI-Z Racer MR-04EVO2 Chassis Set (N-MM2/4100KV)  [KY-32892]

While keeping elements of the superb MR-03 design, the latest MR-04EVO2 chassis achieves significant performance improvements with changes to your front suspension and a reduced C of G that work with synergy with a sensored brushless motor. Both slim and wide tread settings can be obtained by changing the reduced and top plates regarding front side as well as the steering tie rod. Adjustable wheelbase enables framework setting according to physique.

- While camber angle is optimized during cornering using the swing of current top supply design, the front suspension system utilizes the brand new kingpin-integrated knuckle to boost camber security. Geometric modification of caster and path an such like. delivers more linear maneuverability. Brand new spec front springs the MR-04 with different hardness can be found as choices.

- Front knuckle design features incorporated kingpin with optimized clearance aided by the kingpin ball for smoother procedure. Ball bearings have already been changed to 3mm interior diameter for lower rotational resistance.

- All 7 ball bearings are 3mm internal diameter for lower rotational opposition to reduce friction loss.

- Lower mounting regarding the AAA batteries regarding framework understands a lower center of gravity set alongside the MR-03. In combination with the framework shape, this improves security through corners also boosting speed and control.

- Ball differential included as standard optimizes the rotational differences when considering remaining and right back tires when turning. Additionally provides moderate slide action to enhance traction whenever exorbitant load is used. Silver clear anodized complete to aluminum parts produces a formidable style to match performance.

- This new device additionally supports high-speed communication with various high-end transmitters and receivers to appreciate unprecedented control reaction. Achieves transmission rates of 0.99ms with KO devices (ADV mode) and 0.9ms with Futaba devices (EVO2 mode). *Previously 2.6ms ~ 3.0ms

TECHNICAL DATA

• Length 120.6mm
• Width 67~76mm
• Height 35mm
• Motor Mount MM2
• Wheelbase 94.0mm(L)
• Tread(F/R) 58.5~65.0mm/61.5~65.0mm
• Gear Ratio7.3/6.3/5.5/4.9:1
• Weight 138.0g
• Motor KYOSHO SPEED HOME / XSPEED 41 (KV4100)

KIT CONTENT

• MR-04EVO2-N-MM2 Factory assembled chassis with KYOSHO SPEED HOUSE KV4100 brushless motor
• Parts set for changing front side tread
• 6T/7T/8T/9T Pinion gears
• Wheel wrench
• Tools for pinion gears
• Spare wheel nuts

REQUIREMENT TO RUN

• Transmitter
• Receiver unit (suitable for EVO/EVO2)
• ASC
• AAA x 4 batteries for chassis
• Batteries for transmitter
