Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A  [KY-33020]

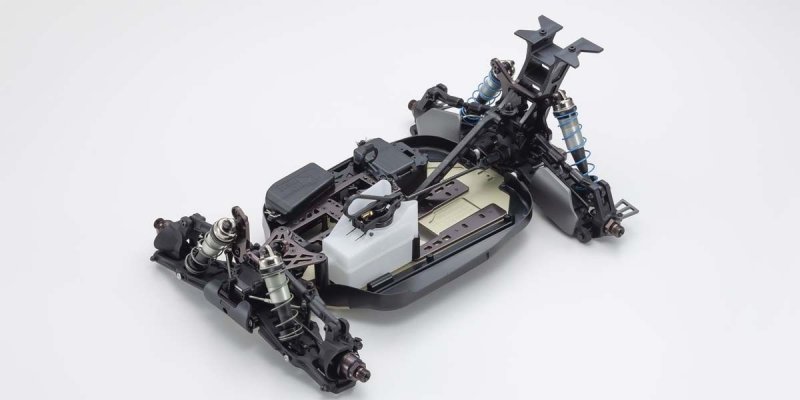

Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A
Price:
USD$0.00
Brand:
Kyosho
Model:
KY-33020
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - Off-Road - Buggy - Nitro Powered category
Write a review
alt="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A" title="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A"
alt="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A" title="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A"
alt="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A" title="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A"
alt="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A" title="Kyosho 33020 - 1/8 GP 4WD KIT INFERNO MP10 SPEC A"
The 4WD KIT SPEC A produced by Kyosho in 1/8 scale AWD drivetrain assembly kit, is classified in R/C Models - Off-Road - Buggy - Nitro Powered

The peak of 1:8 scale off road buggy racing may be the IFMAR (International Federation of Model car Racing) World Championship, won by the Kyosho INFERNO an archive 8 times. The INFERNO has long been the machine against which all others are calculated, and it proceeded since the benchmark in design and gratification aided by the launch of the MP9 in October 2008. The INFERNO has now evolved with the brand new MP10 to maintain its dominance during the forefront of competitive R/C racing. The culmination of a decade of relentless R&D by designer Yuichi Kanai has triggered a trove of data for the growth of the MP10 into the strongest & most higher level 1:8 device the RC market has ever seen. Yuichi Kanai’s MP10 embodies a virtually new design for optimum performance utilizing the high hold tires and surfaces which are therefore commonplace in R/C race, to deliver next-level performance well in excess of the MP9. The many newly-designed components offer extra energy and rigidity for increased durability and reliability: main framework; radio plate; one-piece back wing mount; suspension system hands; suspension shafts; front and back shock towers and more. To attain to your top of the podium, the newest MP10 provides you every advantage.


Key components like the Big Bore Shocks and gear diff were assembled by expert Inferno staff and each device is physically examined by the Inferno’s designer, Yuichi Kanai. Just install the RC system and engine and you will certainly be ready for action with the most advanced off-road racing devices ever built.


  • Installing R/C system including receiver and servos and connection of linkages
  • Painting of body and accessory of decals
    (Body is pre-cut but requires opening of sections to fit your range of motor head and exhaust).
  • Tires and inners are required to be purchased individually and glued to wheels.
  • Installation of motor, clutch, manifold and muffler. Construction and installation of piping, linkages and air cleaner.
  • Wing assembly and installation.

    • TECHNICAL INFORMATION

  • Length 490mm
  • Width 307mm
  • Height 180mm
  • Ground approval 28mm
  • Wheelbase 328mm(4 settings with rear hub collar place changes)
  • Tread (F/R) 254mm(3 back settings with with bush changes)
  • Tires (F/R) offered separately
  • Gear Ratio 11.7: 1
  • Weight 3,360g (approx.)
  • Engine 21 Class (offered separately)

    • KIT CONTENTS

  • MP10 pre-assembled framework kit
  • Special wheels
  • Pre-cut clear body
  • Wing
  • Fuel tube
  • Linkage parts
  • Clutch parts
  • Logo decals
  • Manual

    • REQUIRED FOR PROCEDURE

  • 2ch, 2 servo R/C system for cars
  • 21 class engine
  • Muffler & manifold
  • Tires & inners for 1/8 buggy
  • Fuel
  • Fuel container
  • Plug heater
  • Starter box
  • Batteries for R/C system
  • Oil for air cleaner (No.96176 HG air cleaner oil is recommended)
  • Paint for human body
    •
