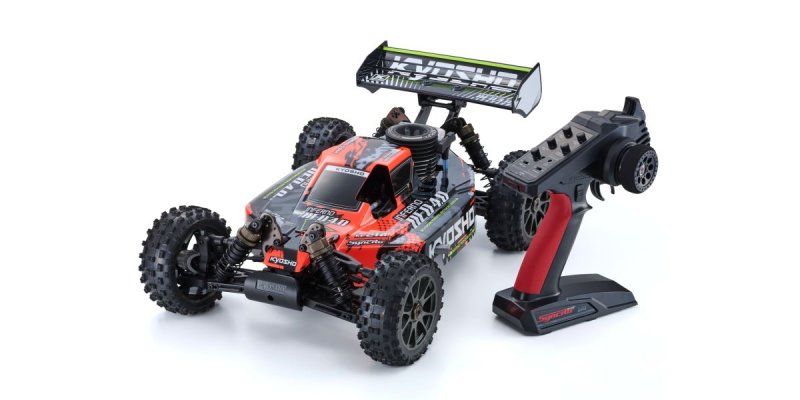

Kyosho 33029T1S Inferno NEO 4.0: Large-scale 1:8 nitro 4WD buggy with a race-oriented mechanical layout
The Kyosho 33029T1S Inferno NEO 4.0 is presented as a Readyset 1:8 scale buggy that arrives with a factory-assembled chassis, installed KE21V series engine with recoil starter, and a complete R/C system. The platform emphasizes a robust shaft-driven 4WD drivetrain and a three-differential arrangement that gives the model predictable handling across varied surfaces. The package is positioned for hobbyists who want a full-size nitro buggy with mechanical fidelity rather than a bare kit build.
Chassis and drivetrain analysis
The Inferno-series chassis is a large, heavy-duty layout designed around durable components: a central driveshaft, universal swing shafts to the front, and distinct front, center, and rear differentials. That three-differential configuration is central to the car's directional stability and traction balance. A double-disc brake assembly provides strong stopping power appropriate to the mass of a 1:8 chassis. The readyset form means critical linkages and drive components are installed at the factory, which shortens the time between unboxing and running.
Engine, controls, and electrical system
This Readyset is delivered with a KE21V series glow engine fitted and a Synchro KT-231P+ 2.4GHz pistol-grip transmitter. The radio system includes a receiver with a fail-safe function and adjustable settings on the transmitter for steering and throttle trims. High-torque metal-geared servos are used for both steering and throttle to maintain control under load. Note that Electronic Speed Control devices are not discussed in the narrative; see specifications for ESC status.
Suspension, tires, and handling intent
Large-bore, oil-filled shock units and double wishbone suspension are standard to handle the weight and dynamics of a 1:8 buggy. Turnbuckle-style rods allow for alignment adjustments at the hardware level. The model ships with KC Cross tires pre-mounted on scale-looking spoke wheels; those tires are selected for a balance of grip and longevity on mixed surfaces.
Suitability for hobbyists and collectors
The Inferno NEO 4.0 Readyset is suited to hobbyists who want an out-of-the-box large-scale nitro buggy with factory-fitted mechanical systems. It is appropriate for those who value a proven drivetrain topology and solid componentry over a pure kit-build experience. Collectors who appreciate historically important Inferno-series platforms will find the pre-painted body and finished presentation convenient for display or occasional operation.
Specifications
- Label: Kyosho Inferno NEO 4.0 33029T1S Readyset
- Length: 507 mm
- Width: 307 mm
- Height: 189 mm
- Wheelbase: 325.5 mm
- Tread (F/R): 258 mm / 261 mm
- Tire (F/R): 116 x 44 mm / 116 x 44 mm
- Gear Ratio: 11.70:1
- Weight: Approximately 3,400 g
- Engine: KE21V series (.21 class) with recoil starter
- Drive System: Shaft-driven 4WD with front, center, and rear differentials
- Transmitter: 2.4GHz Synchro KT-231P+
- Electronic Speed Control (ESC): Not Included
The Kyosho 33029T1S Inferno NEO 4.0 delivers a ready-to-run, large-scale nitro buggy experience built around a shaft-drive 4WD layout and a three-differential drivetrain. Its factory-installed systems and finished body make it a practical choice for hobbyists seeking a substantial machine with race-derived mechanics, and for collectors who prefer a complete display-ready model.
