Kyosho 33211 - Radio Controlled .12-.15 Engine powered Touring Car Series V-ONE R4 Evo.2 [KY-33211]

Price:

USD$0.00

Brand:

Kyosho

Model:

KY-33211

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Nitro Powered category

Write a review

Description

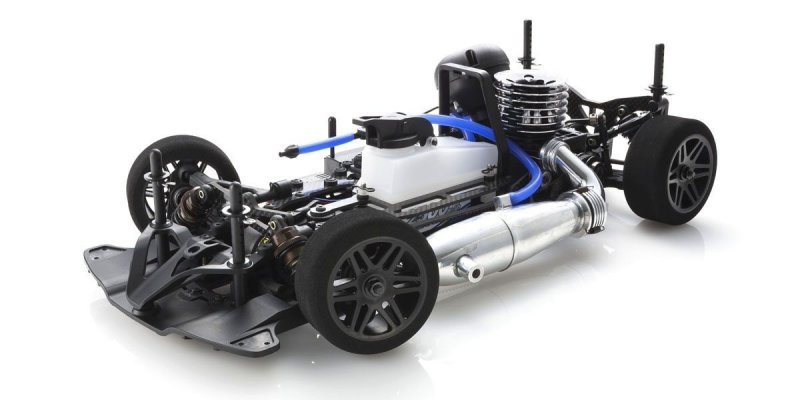

The Radio Controlled .12-.15 Engine powered Touring Car V-ONE R4 Evo.2 produced by Kyosho in 1/10 scale V ONE series AWD drivetrain assembly kit, is classified in R/C Models - On-Road - Touring Cars - Nitro Powered

The V-ONE R4 show has a reputation constructed on proven performance in major events in Japan and around the globe. Since its launch, the V-ONE R4 has maintained its sporting advantage through constant enhancement now takes an evolutionary step using the brand new Evo.2. Based on the previous Evo. platform, key elements for instance the main chassis and top deck were redesigned in new V-ONE R4 Evo.2 for optimal rigidity and superior performance with modern high-power engines. Increased technical hold is accomplished separate of tire grip and complies with competition laws with managed tires. The V-ONE R4 series is celebrated because of its low center of gravity, that is further improved by brief oil shocks that deliver increased cornering speed on high-grip surfaces while preventing highside. Improvements to your clutch and brake rotor are further improvements in R4 Evo.2, making it an ideal machine to see superior racing in activities including the Sports Class during the 2018 JMRCA 1/10 Engine Touring Car nationwide Championship.

●Evo.2 features improvements to key components while keeping the very best of the V-ONE R4 Evo.
●Newly designed main chassis and top deck deliver even higher mechanical grip.
●New brake rotor included as standard improves driving feel at low rate.
●Front universal swing shafts increase drive effectiveness and expel threat of drive shafts coming loose.
●Hook pin guaranteed fuel tank is effortlessly eliminated and installed.
●Equipped with front knuckle and backside hub that can be fitted with optional carbon disk.
●Compatible with the majority of existing optional parts.

Retains the very best of the V-ONE R4 Evo. with improvements through the redesign of critical elements. Steering post revised for optimal Ackerman ratio and improved cornering speed.

Grooved main chassis further increases mechanical hold and combines with newly created upper deck to produce ideal roll and pitching rigidity.

Shorter oil shocks on front and backside understand reduced center of gravity to improve cornering rate. Shock springs are also included as standard and so are optimized for use with sponge tires.

Special 3D rushing clutch the Evo.2 maximizez engine performance. Revised clutch footwear material with tiny diameter flyweel understand both improved throttle response and higher end speed.

Aerodynamic 3D design front bumper increases cornering stability and allows high speed cornering performance.

Compact radio box protects the receiver and wiring from crash damage and gas splashes during refueling.

TECHNICAL INFORMATION

Length 368mm
Width 200mm
Height 105mm
Wheelbase 258mm
Tread (F/R) 174mm/170mm
Tires (F/R) offered separately
Gear Ratio 7.18/5.09 : 1
Weight 1,700g (approx.)
Engine 12-15 Class (sold separately)

KIT CONTENT

Unassembled chassis kit
Steering servo horn suitable for major brand name R/C systems
5.0mm L-shape hex wrench
Cross wrench (little)

REQUIREMENT TO RUN

2ch-3ch R/C vehicle transmitter
Receiver
Servos x 2
Switch
Batteries for transmitter
Batteries for receiver (flat pack)
12-15 class motor with back exiting exhaust
Manifold
Muffler
Glow fuel (for R/C models)
Engine starting equipment (beginner package, fuel container, plug heater)
200mm width touring car body
Paint for vehicle body
Wheels and tires
Tools
Instant glue
