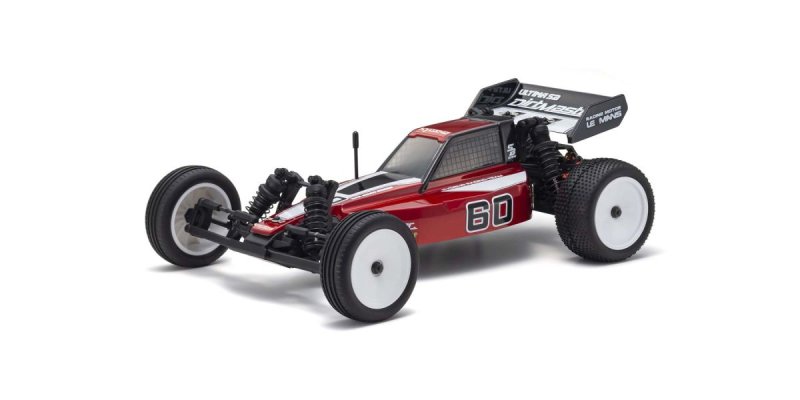

The Radio Controlled Electric Powered 2WD Buggy Assembly kit SB Dirt Master produced by Kyosho, is classified in R/C Models - Off-Road - Buggy
Buggies had been designed to venture off-road over rough surfaces at high rate together with Ultima SB Dirt Master is a go back to the purest kind of this enjoyable and excitement. If you want over the entry-level model can deliver but top-end models are way too dedicated to race, the Dirt Master is perfect for good honest bush-bashing fun! Based on the competition-level Ultima RB5, the Dirt Master was developed as a mid-class buggy featuring top quality key performance components, at a fair price. The trunk engine layout guarantees protected rear tire grip that shows rock-solid stability over low hold areas particularly gravel and riverbeds. Since the Ultima SB Dirt Master shares its race history aided by the RB5, it's also in the home on fully-fledged RC race circuits too. With the excellent fundamental framework design and a totally brand new body with a nostalgic flair, beginner drivers trying to step-up to another amount of performance or hard-core racers seeking some fun will see the Ultima SB Dirt Master holds true toward initial character of this buggy.
●Based on a competition-level racing buggy, this unassembled EP buggy kit provides powerful at a reduced price.
●Rear motor design provides exceptional rear tire hold and superior control.
●Included front/rear tires and tires indicate security over numerous kinds of road surfaces.
●Classic design human anatomy with ageless smart design has a rear wing that enhances driving security.
●Resin main chassis is not hard to gather and displays moderate flex traits, and will be equipped with standard RC components.
●Race-proven double-wishbone front and rear suspension system has precision resin oil shocks.
●Steering device is equipped with a servo saver function that protects the servo from crash shocks.
●Full bearing requirements as standard greatly improves drive system effectiveness.
●Compatible with 1:10 Scale Radio Control Electric 2WD Buggy Assembly kit Ultima SB Dirt Master the Ultima series and rushing springs.
●Driver Set from 2014 Beetle (No.SCB003B) are set up to boost scale realism.
Unique retro contemporary human anatomy design. A good stability of contemporary venting technology with some nostalgia in design. Clear kit body for customizing and images decals are also included. Back wing is roofed for increased backside traction.
Grip and drive energy is increased with the rear overhang motor mount that achieves superior traction and driving security. A motor guard normally prepared to safeguard the motor from effect after jump landings.
Superior area tracing from confirmed double-wishbone suspension system incorporates turnbuckle rods that enable length become modified for efficient setting modifications.
Moderate flex traits associated with the resin primary chassis enhances hold for control security and allows plenty of room for effortless installation and construction of RC components.
Resin oil-filled shocks take in and minimize shocks from road surface to keep stable posture. With dial-adjustable spring stress, chassis height is easily changed. Appropriate for competition-level springs.
Back gear differential enables smooth cornering and is an easy task to construct and keep maintaining. For elevated performance on racing circuits, the ball differential the Ultima series are set up.
Comprehensive ball bearings that reduce drive loss prepared through the drive system.
Tapping screws are used to secure resin parts. Unlike entry-level models which use Phillips screws, the 2mm hex mind screws make construction and maintenance easier.
Slipper clutch is roofed as standard to protect the gears by enabling moderate slide once the drive system is under heavy load and enables modification of driving faculties. Gear address can also be set up to protect the gears from dust and dirt.
TECHNICAL DATA
- Length 380mm
- Width 249mm
- Height 140mm
- Wheelbase 270mm
- Tread F:221mmR:201mm
- Tire F:84x28mm R:86.5x42mm
- Gear Ratio 8.23:1
- Weight 1,450g (approx.)
- Motor (sold individually)
KIT CONTENT
- Unassembled kit set
- Polycarbonate clear body
- Wing
- Window mask seal
- Decals
- Chassis parts
- Cross wrench
- Hex wrench(1.5mm/2.0mm)
- Grease
- Tires, Tire Inners, Wheels
- Pinion Gear
REQUIREMENT TO RUN
- 2ch/3ch transmitter & receiver for R/C cars
- Servo
- ESC
- Motor
- Silicone oil for Shock
- Batteries for chassis(2S Lipo Recommendation)
- Charger
- Paint for coloring human anatomy (*spray paint for polycarbonate)
- Tool
