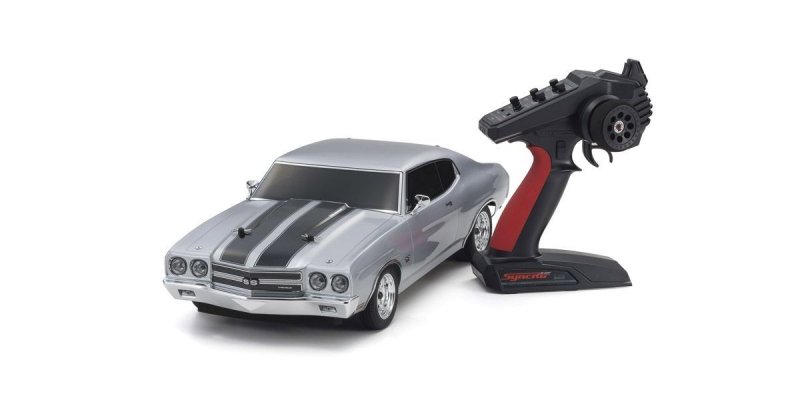

Kyosho 34416T1 - 1/10 Scale Radio Controlled Electric Powered 4WD FAZER Mk2 FZ02L Series Readyset 1970 Chevy(R) Chevelle(R) SSTM 454 LS6 Cortez Silver [KY-34416T1]

Price:

USD$0.00

Brand:

Kyosho

Model:

KY-34416T1

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category

Write a review

Description

The Radio Controlled Electric Powered 4WD Mk2 FZ02L 1970 ChevyR ChevelleR SSTM 454 LS6 Cortez Silver produced by Kyosho in 1/10 scale with FAZER chassis AWD drivetrain RTR (Ready-to-Run), is classified in R/C Models - On-Road - Touring Cars - Electric Powered

The pure satisfaction of R/C car driving, the mixture of a beautifully reproduced automobile human body utilizing the FAZER series chassis can’t be beaten. Kyosho has taken its standard touring automobile framework and given it the full model makeover with developed performance to a new level. A simplified design with fewer parts has improved maintenance effectiveness and reduced weight while core energy and rigidity happens to be increased through new materials and ribbing and stiffeners on front side and rear. Besides, the symmetrical framework design synergizes exceptional front-rear stability through the suspension with responsive control, aside from power source. Featuring slipper clutch, front & back gear differentials, oil shocks and full ball bearing specs, the high durability and impact opposition allows motorists to unleash the full potential associated with framework. Brake disk wheel hubs with two different offsets (0mm, +5mm) provide compatibility with 190mm and 200mm width body designs and enables the wheelbase to be adjusted to 274mm by replacing some parts (sold individually) for compatibility with other 1/10 scale human body designs, additionally the body included. The Readyset package comes fully put together and includes everything except charger and battery the framework, and batteries for the transmitter.

●“Ultra Scale Body” replicates the fine details of the particular human anatomy regarding the vehicle. Kyosho took one step further in scale realism.
●New design shaft drive full-time 4WD touring chassis（FZ02）.
●Factory-assembled Readyset package just requires 4 x AA alkaline batteries for the transmitter, and battery pack with charger for the framework.
●Equipped with 2-bevel grease-filled gear diffs on front side and back.
●Large size dog bones and glass joints realize superior dependability and durability.
●Belt mounting battery pack compartment allows various battery kinds to be utilized.
●Full ball bearings that reduce drive loss prepared through the entire drive system.
●Features KS202W waterproof steering servo.
●Includes completely finished human body with color scheme and decals applied.
●Sealed differential and transmission deliver dependable performance, also on dusty parking lot areas.
●Performance are further enhanced by installing different optional parts.

Brand-new framework understands low center of gravity featuring its simple, functional design. Featuring a gearbox that optimizes torsional rigidity associated with the primary framework, the nylon material reduces weight while enhancing effect resistance. Each key component has been reinforced inside simple design without upper deck.

Features a lower life expectancy quantity and number of screws and parts, and consolidation of commonly used screws into the exact same size. Many screws are flat mind screws that may be eliminated with a 2.0mm hex wrench for easy disassembly.

Handling facets like bump steer and scrub radius are optimized on front suspension. Simple ball-connected steering knuckle promises reliable control motion. Interchangeable on both front side and back left-right hub companies optimize spare parts utilization and enhance maintenance efficiency.

Includes selection of two offset braking system disc wheel hubs with dummy calipers (for artistic styling) offering compatibility with 190mm and 200mm body widths.

New design oil shocks mark an evolutionary step up from past models Oil shock is newly designed. Optimal front-rear geometry and balance simultaneously delivers both light managing and precise control. Equipped with long surprise end allows a top trip height to pursue true scale look.

Standard spur and pinion gear environment is 68T and 32T, but 9 pinion gear settings can be used from 29T – 37T to make a wide range of gear ratio settings. The newest fixed gear mesh engine mount has holes for use with each different pinion gears. Simply just install the motor directly to the opening areas corresponding towards the pinion gear. No gear mesh adjustment is necessary.

Equipped utilizing the ‘LS6’ 7400cc V-type 8-cyclinder OHV motor that generated 450ps / 69.1kgm of maximum torque, the high-performance ‘SS’ style of Chevrolet’s legendary Chevelle was a force become reckoned with. The 1970 model happens to be reproduced in 1/10 scale polycarbonate human body featuring its signature 4 round headlights.

New design Vintage Touring vehicle (VTC) tires & Rostyle kind tires to complement vintage automobile style.

Is sold with the new effective 550 size 14T brushed motor(G14L). The long will with Steel band across the motor case and internal cooling fan provides efficient torque and high speeds.

TECHNICAL INFORMATION

Length 484mm
Width 195mm(Body width:210mm)
Wheelbase 274mm
Tread (F/R) F:167mm/R:167mm
Tires (F/R) F:φ64×27.7mm/R:φ64×27.7mm
Gear Ratio 6.54:1
Weight 1650g (approx.)
R/C system Syncro KT-231P+
Motor G14L

KIT CONTENT

Completed framework with R/C radio installed
Factory put together human anatomy detailed with color scheme
Syncro KT-231P+ transmitter
Installed 60A waterproof electronic rate controller (forward/brake/reverse)
+5mm off-set wheel hub (for 200mm width framework), M4 x 22 wheel screw
Hexagonal wrench
Spanner

REQUIREMENT TO RUN

4 x AA batteries for transmitter
Battery for chassis (suggested: 7.2V Ni-MH battery)
Charger for battery for chassis
Tools
