The Radio Controlled Electric Powered 4WD Touring Car Mk2 FZ02 Kit produced by Kyosho in 1/10 scale with FAZER chassis AWD drivetrain assembly kit, is classified in R/C Models - On-Road - Touring Cars - Electric Powered
The FAZER Mk2 Readyset was made for the pure satisfaction of R/C vehicle driving. Available these days as a chassis kit, owners have actually the flexibility to include their human body and R/C system. Requirements have now been elevated with optional parts like HD TC center shaft S and TC universal swing shaft L to improve the unrivaled symmetrical design and front-rear suspension system stability regarding the lightweight framework for R/C racers to take pleasure from. As the deckless design appears easy, a lower quantity of elements improves maintenance effectiveness and optimizes torsional rigidity. Incorporation of nylon material further decreases fat and improves effect resistance. Along with its unique design, the FZ02 chassis embodies features and performance that may interest R/C motorists of most levels.

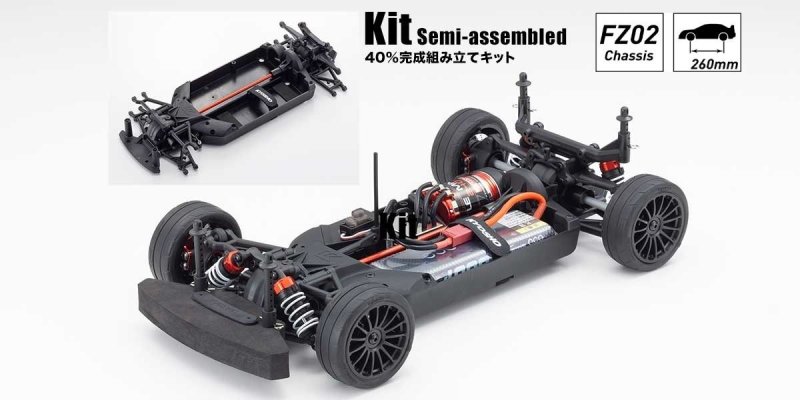

40% pre-assembled (shocks and diff gears are not filled up with oil so construction are completed to preferred setting). The FZ02’s effective low center of gravity design compliments the high energy and rigidity realized through front & back stiffeners and rib reinforcement at key chapters of the framework.
Duralumin HD TC center shaft S (FAW209) provides increased rigidity compared to the standard resin shaft included in the Readyset. Along with smoother driving transmission, the red anodized color has striking visual appeal.
TC Universal swing shafts L (FAW202) in the front drive section don’t fall on heavy contact like dog bone shafts. Besides, the swing shafts deliver consistent drive transmission even when joint is at an extensive steering angle.
A unique resin transponder mounting stay is roofed for once the chassis is competing in competition events. There is no need to make a handmade stay or holes within the body to suit a transponder.
Included human anatomy mounts enable bodies from different manufacturers become fitted. Besides, two various brake-disk wheel hubs enable 190mm and 200mm framework width settings for compatibility with various human anatomy types.
Included aluminum dish protects the engine from dust and effective temperature dissipation, especially into the temperature of summer time race.
Oil shocks and springs optimize the front-rear geometric stability, delivering both light managing and accurate control. (Silicone oil for the shocks is sold individually)
Bump steer and scrub radius, both factors aided by the greatest impact on maneuvering, have been optimized on the front suspension. Interchangeable front-rear and left-right hub companies improve components efficiency and upkeep.
Original low-profile semi-slick pattern tires and inner sponge (FAT701M) combine with 15-spoke black colored tires for enhanced rushing appeal.
TECHNICAL INFORMATION
- Length 375mm
- Width200mm/190mm
- Ground clearance 8mm (approx.)
- Wheelbase 260mm
- Tread(Body width:190mm)F:164mm/R:164mm
- Tread(Body width:200mm)F:174mm/R:174mm
- Tires F: ?66mm x 25mm/R:?66mm x 25mm
- Gear Ratio 6.54:1
- Total storage space fat Approx. 1490g (with 7.4V / 4000 LiPo)
KIT CONTENT
- 40% pre-assembled chassis
- FAW202 TC Universal Swing Shaft S
- FAW209 HD TC Center Shaft S
- Aluminum Motor Dust Plate
- Transponder mounting stay
- +0mm off-set wheel hub & M4 x 16 Wheel screw(for 190mm width human body)
- +5mm off-set wheel hub & M4 x 22 Wheel screw(for 200mm width human anatomy)
- Body mounts for various manufacturers bodies
- FAT701M TC Tires(M)
- Inner Sponge
- VZH003BK Wheel
- 1.5/2.0/2.5mm Hexagonal wrench
- 3/4/5/5.5/7/8mmSpanner
REQUIREMENT TO RUN
- 2ch 1 servo R/C system for cars(Receiver size:L45xW28xH22mm or less)*Recommended items No.82138/82151
- 540-550 class motor *Recommended items No.37031/37032
- ESC compatible with motor used(Size:L36xW32xH23mm or less)*Recommended products No.37051
- Survo *Recommended products No.82273
- Battery charger
- Battery for chassis appropriate for ESC used(SIze:L145xW47xH25mm or less)*Recommended services and products No.GAB4201
- 4 x AA batteries for transmitter
- Damper Oil *Recommended services and products No.SIL0400-8
- Grease(for Ring Gear & Diff)*Recommended services and products No.96162
- Silicone OIL(for Diff)*Recommended services and products F:No.SIL50000/R:No. SIL3000
- Velvet Coating Pinion Gear No.PNGA4832 - No.PNGA4837 (For brushless motor )
- Steel Pinion Gear No.PNGS4829 - No.PNGS4836 (For brushless engine )
- Paint for polycarbonate body
