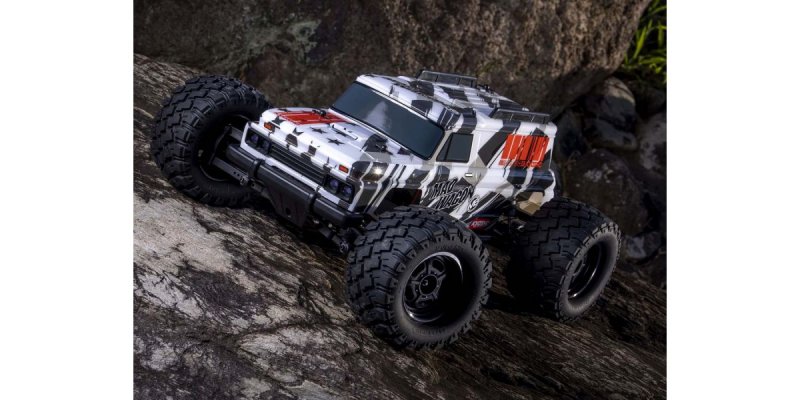

The 4WD KB10W VE Color Type1 produced by Kyosho in 1/10 scale AWD drivetrain RTR (Ready-to-Run), is classified in R/C Models - Off-Road - Monster Trucks
The Monster Truck, otherwise known as the ‘Basher’ category, is continuing to grow in appeal over numerous generations. With a pickup truck human anatomy attached to a tough chassis and big diameter tires, monster vehicles including R/C model versions, are made to go between the badlands to stadium courses. Now the Mad Wagon VE puts a unique style on a brute R/C machine! The new KB10 4WD framework design works with 3S (11.1V) high-power lithium polymer (LiPo) batteries and features a newly developed brushless engine and speed controller as standard. Delivering an optimal balance of high-speed and energy, the aluminum main chassis regarding the KB10 combines front/rear obstructs integrating a split frame and double wishbone suspension system to operate a vehicle the all-terrain 2.8” tires and tires. As the tire dimensions are suitable for standard wheels, it is possible to differ requirements to suit the type of road surface and conditions. In addition, drivetrain components are distributed to the 1/8 scale Inferno NEO ST 3.0, providing ample convenience of a 1/10 scale device. The initial 1980’s style van human anatomy design is stated in ‘Ultra Scale’ realism. As the human body included in the kit is pre-painted, you could make your own custom human body coloring design with an obvious body also elevating the realism because of the optional Light-emitting Diode light product (No.97054-4B). The Mad Wagon VE is packed as a pre-assembled Readyset and needs only batteries for the chassis and charger to obtain ready to go. An array of optional components can be obtained to expand and expand your satisfaction for the R/C car pastime.
● Readyset includes pre-assembled framework, painted body, and RC system with pistol hold Syncro KT-231P + transmitter
●Features powerful brushless engine unit that reaches a maximum speed of 75km/h. RC system can also be pre-installed
●contains initial design wagon-type body. There Are Two Main color variants, and a definite body normally available as an option.
● Newly designed chassis incorporates a shaft-type 4WD with an established double wishbone suspension to deliver excellent driving performance.
●Fully equipped with (22) ball bearings as standard specification for superior drive effectiveness.
● Built With lightweight resin telescopic universal shafts on all four tires to reduce drive loss and stop drive shaft drop outs in touch.
●Kit includes newly designed 2.8 inches tires and tires. Standard specification 1/10 scale 2.8 inch tires and wheels can also be set up
● an array of gear ratios is chosen by changing the typical gears included in the kit. And also this supports on-road driving
●Rear associated with the machine is equipped with wheelie bar that stops the vehicle from flipping from sudden acceleration
● Motor battery, charger, and 4 x AA batteries for transmitter are offered individually.
As special gift for very first release, a 2.0mm Hex motorist with all the "KB10" logo design, which can be perfect for maintenance, and a big cross wrench are included.
Aluminum primary chassis combines aided by the superior pitch rigidity of straight resin frame to produce a high-strength framework that provides optimal stability of high rigidity and suppleness.
According to 1980’s era van styling, this newly designed human body is made of durable polycarbonate and completed with paint scheme and decals applied. A separately molded grille and light components enhance the realism of this “Ultra Scale Body”.
Includes newly developed TORX 10L brushless engine. With 38mm diameter and long 68mm specifications, the engine produces 2850Kv (rotations per volt) and efficiently converts power from the 3S LiPo battery pack into speed and torque.
Loaded with BRAINZ 10+ waterproof ESC (rate controller) that boasts 80A capacity. Top mounted air conditioning fan manages temperature generation to reduce energy loss despite having extended operating times.
Features the KS5031-91MW servo with 9kg / cm of torque and all-metal gears, guarantees reliable steering control.
Features battery holder suitable for mounting 3S LiPo battery pack. By offsetting the remaining side mount regarding the battery, left-right fat balance are set on driver’s preference.Also appropriate for 2S LiPo battery pack.
Newly designed oil shocks on front and rear suspension system deliver smooth shock absorber function. Change suspension settings by setting up optional springs to accommodate many running conditions and areas.
Features the 4-bevel differential gear through the Inferno NEO ST 3.0 1/8 scale buggy. With more than enough ability to handle the high-power drive product, the look additionally enables effortless diff gear alternative to superior upkeep efficiency.
Newly designed slipper clutch effectively protects the drive system from exorbitant energy loads. Aluminum footwear delivers optimal slip characteristics and improved acceleration.
TECHNICAL INFORMATION
- Length 472mm
- Width 350mm
- Height 198mm
- Wheelbase 295mm
- Tread F/R 278mm
- Tires(F & R) 128 x 70mm
- Gear Ratio 15.22:1
- Weight 3,610g (approx.)
- Motor TORX10L Brushless Motor kv2850
KIT CONTENT
- Factory put together framework complete with control linkages
- Pre-cut and painted human body complete with decals applied
- 2.4GHz Syncro KT-231P+ transmitter
- 1.5mm/2.0mm/2.5mm L shaped hex wrench
- Cross wrench
- 4/5/5.5/7/10mm built-in spanner
REQUIREMENT TO OPERATE
- AA-size batteries x 4 for transmitter
- Battery for driving (2-3S LiPo battery *Installable battery pack size 143x47x30mm)
- Charger for LiPo battery
