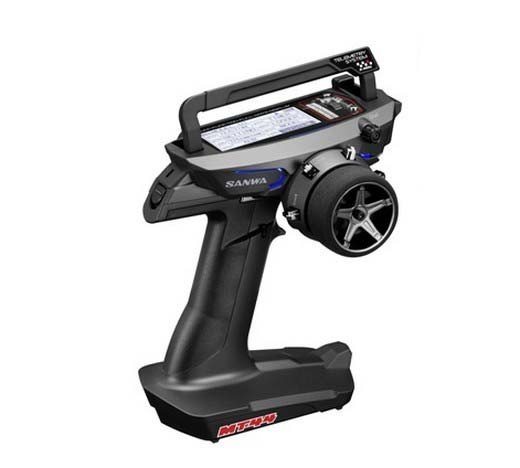

Sanwa MT-44 - 4-Channel 2.4G Transmitter with RX482 and RX472 Receiver   [SW-MT-44-78B]

Beyond Middle Income Radios, The MT-44 Transmitter

• HIGH RES DISPLAY
  Similar detailed dot as M12S enables therefore clear display.
  Three form of telemetry data can be shown at the same time because of gray scale display.
• IDEAL POSITION FOR STEERING / THROTTLE
  Steering/Throttle is arranged in the most readily useful place for procedure.
  Drop Down is employed as standard postion.
• THREE AAA BATTERIES
  Three AAA batteries enables become not only compact and light.
• USB CHARGE
  Whenever combined with optional Li-Po 1 mobile battery, weight become lighter and it is changed from USB input.

Features:

• SYSTEM: 2.4GHz FH4T/FH3
• 4CH
• Movable Carrying Handle
• Quick Setup Wizard
• Protection Link
• Racing Mode
• Customized Menu
• Micro SD card-compatible
• Telemetry Switch
• Clock
• Circumstance Temperature Show
• CSV Output for LOG information
• CODE 10-compatible (Naming help)
• Simultaneous three telemetry data display
• Three AAA Batteries
• Li-Po 1 cell-compatible (USB change help)

• Large full dot LCD monitor
• Wight LED back light
• Complete adjustable trigger
• Telemetry function
• Integrated antenna
• Multi Menu Selector
• ST/TH Tension Adjuster
• Twin Rate
• End Point Adjuster
• Anti-lock Brake
• Servo Speed
• Offset
• Trim/Sub trim
• Servo Reverse
• Curve (Exponential /Adjustable Speed Control)
• AUX1 (motion kind for 3CH. it's exactly like MT-4S function.)
• AUX2 (motion type for 4CH. it's exactly like MT-4S function.)
• Fail safe (power/ battery pack) ?Timer (lap/ interval/ down)
• Lap
• Logger
• 20 model memory (whenever used in combination with sdcard, 250 models is available.)
• Model Title (12 letters)
• Model (Select/ Clear/ Copy)
• Direct Model Choose
• Trim Type (Center/ parallel)
• Throttle Type (70:30 / 50:50)
• RF MODE Setting (FH4T/FH3)
• Response Mode Setting (NOR/SHR/SSR)*
• Key Assign(SW/TRIM/DIAL/LEVER)
• AUX TYPE SETTING
• CODE AUX (w/ Naming function)
• STEP AUX (Step One - 100)
• POINT AUX (2 - 6 point)
• 4WS MIXING (Front/Rear/Normal(coordinate period)/Reverse(opposite period))
• MOA MIXING (FWD/4WD/RWD)
• AUX MIXING (ST MIXING/ TH BLENDING)
• Buzzer(scale/volume)
• Transmitter Battery Alarm
• LCD Contrast
• Volume Adjustment
• Mechanical Rudder Angle
• Small Grip Pad

Suitable Receivers:

• Telemetry-compatible(RX-482, RX-472, RX-47T, RX-462, RX-461)
• Non-Telemetry-compatible(RX-481, RX-481WP, RX-471 Dual ID, RX-471W, RX-471, RX-451R, RX-451, RX-381, RX-380)


Cautions and supplemental description:

[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM

• Whenever used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the environment of ESC an such like. by Transmitter can be acquired through SSL functions while driving.
• because the environment can be done without stop of vehicle, the step-by-step modification in accordance with Race conditions
  can be acquired without interruption of periods additionally the modification of machine conditions.


[Reaction of Telemetry System]

• it is said that telemetry system reduce response speed. However, SANWA Original information Processing and Algorithm Design makes Telemetry feasible without reaction speed reduction.
  Our exceptional Telemetry System has no response speed decrease.
• With your telemetry system, the precious race information helps another race setting and driving.


[Reaction Mode]

• Please don't use Analog Servo for SHR mode or SSR mode.
  If analog servo is used for SHR mode or SSR mode, the servo would be broken and certainly will perhaps not work.
  Digital servo (SRG show, Digital ERG series, SDX show) can be utilized both for NOR mode and SHR mode.
• SSR mode can be utilized only by SRG show servo.
• In SHR or SSR mode, BL-FORCE, BL-SPORT, F3300, SBL-02 and SBL-03CR usually do not work.
  Please make use of NOR mode for the above ESC.
