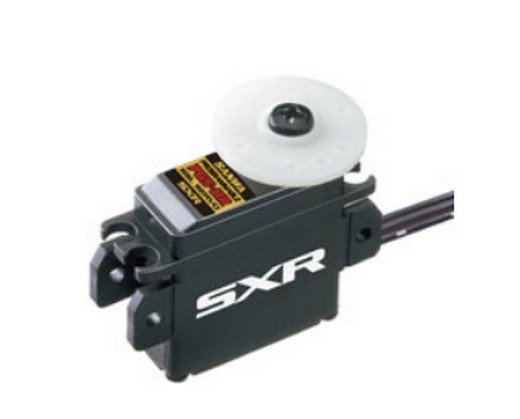

The Servo for RC produced by Sanwa, is classified in R/C Models - System - Servo - Micro Size Servos
Speed
0.10 sec / 60° (6.0 V)
0.16 sec / 60° (3.7 V)
Torque
3.8 kg・cm (6.0 V)
5.8 kg・cm (3.7 V)
Proportions: 27.0 x 21.1 x 30.5 mm
Weight: 24 g
●FH5U: SXR(SANWA XTREME RESPONSE) MODE-COMPATIBLE
●SSL-COMPATIBLE PROGRAMMABLE SERVO
# appropriate for CODE 10 (M12S, EXZES ZZ, MT-44)
Maybe not appropriate for CODE 5 (M12, EXZES Z, MT-4S, MT-4, MT-S)
●PGS SETTING GEAR-COMPATIBLE
●Specialized for 1/12 models
●LiPo (1 & 2cell) Battery help
●Digital Servo
●Coreless Motor
●Full metal gear
●Programmable Servo to be compatible with SSL & Telemetry at publish
●Setting Adjustment by cordless from Radio
●Setting Adjustment to connect Servo with Setting Gear
●Regarding Temperature, Current, Voltage and Volume Position on Servo in,
Telemetry-transmission can be passed away to broadcast.
# Initial Setting on Setting Gear is important.
★Setting Things
●SSL-CH (SSL Channel Setting) ●STRETC (Stretcher Adjustment) ●BOOST (BOOST Modification)
●D-Band (Dead Band Adjustment) ●MV-MID (Middle Torque Modification)
●MV-END (Later On Torque Modification) ●BREAK (Break Adjustment)
●MV-HOLD (energy modification at entire area) ◎MV-FRQ (Feeling Adjustment at entire area)
●MAX-PW (MAX Duty Adjustment)
※ Setting Gear is important for ◎setting.
