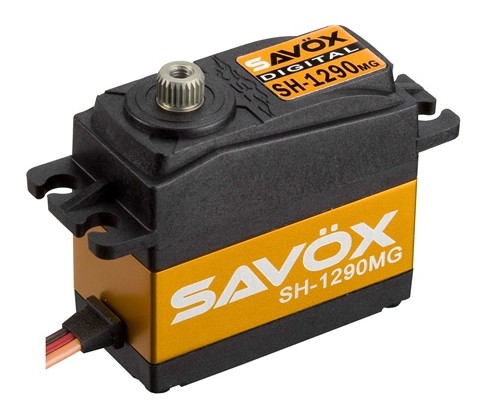

Savox SH-1290MG High-Speed Metal Gear Digital Servo [SH-1290MG]

Savox SH-1290MG Super Speed Metal Gear Digital Servo

Price:

USD$63.80

Brand:

Savox

Model:

SH-1290MG

Not Available

Please kindly input your name and email address, we will inform you once we have the restocking.

Or you may find similar product under the

R/C Models - System - Servo - Standard Servos

Unleashing Speed and Precision with Savox SH-1290MG

The Savox SH-1290MG High-Speed Metal Gear Digital Servo is engineered for RC enthusiasts seeking top-tier performance. This servo boasts advanced features like a coreless motor and a robust aluminum case, ensuring not only durability but also enhanced thermal management. Its water-resistant design, complemented by four silicone seals, makes it a reliable choice for various conditions. Whether you're upgrading your 500, 600, or 700 class helicopters, this servo delivers precise control and rapid response.

Why Choose the SH-1290MG?

Equipped with a 4096 super high resolution and a digital controller, the SH-1290MG offers unmatched precision. The coreless motor enhances output performance, providing smoother and faster operation. Additionally, its environmentally friendly production process underscores Savox's commitment to sustainability. With a torque of 69.4 oz-in at 6.0V and a speed of 0.05 sec/60 degrees, this servo is perfect for those looking to push their RC models to new heights.

Specifications

Dimensions: 40.3x20.2x37.2 mm
Weight: 56.4 g
Speed (@4.8V): 0.06 sec/60°
Torque (@4.8V): 55.5 oz-in
Speed (@6.0V): 0.05 sec/60°
Torque (@6.0V): 69.4 oz-in
Gear: Metal
Bearing: 2BB
Case: Aluminum
Running Current (no load @4.8V): 200 mA
Running Current (no load @6.0V): 250 mA
Stall Current (locked @4.8V): 2.4 A
Stall Current (locked @6.0V): 3.0 A
Idle Current (stopped): 5 mA
Connector Wire Gauge: 22 AWG
Connector Wire Length: 300±5 mm
Horn Gear Spline: 25T
Control System: Pulse Width Modification
Amplifier Type: Digital Controller
Operating Travel: 100° (1000->2000 usec)
Neutral Position: 1520 usec
Rotating Direction: Counterclockwise (1500->2000 usec)
Pulse Width Range: 800->2200 usec
Maximum Travel: Approx. 154° (800->2200 usec)

The Savox SH-1290MG is an excellent choice for hobbyists aiming to enhance their helicopter's performance. Its combination of speed, precision, and durability makes it a valuable addition to any RC setup.

Is the SH-1290MG suitable for outdoor use?

Yes, its water-resistant design with silicone seals makes it suitable for various outdoor conditions.

What type of models can benefit from this servo?

It's ideal for 500, 600, and 700 class helicopters, providing precise control and rapid response.
