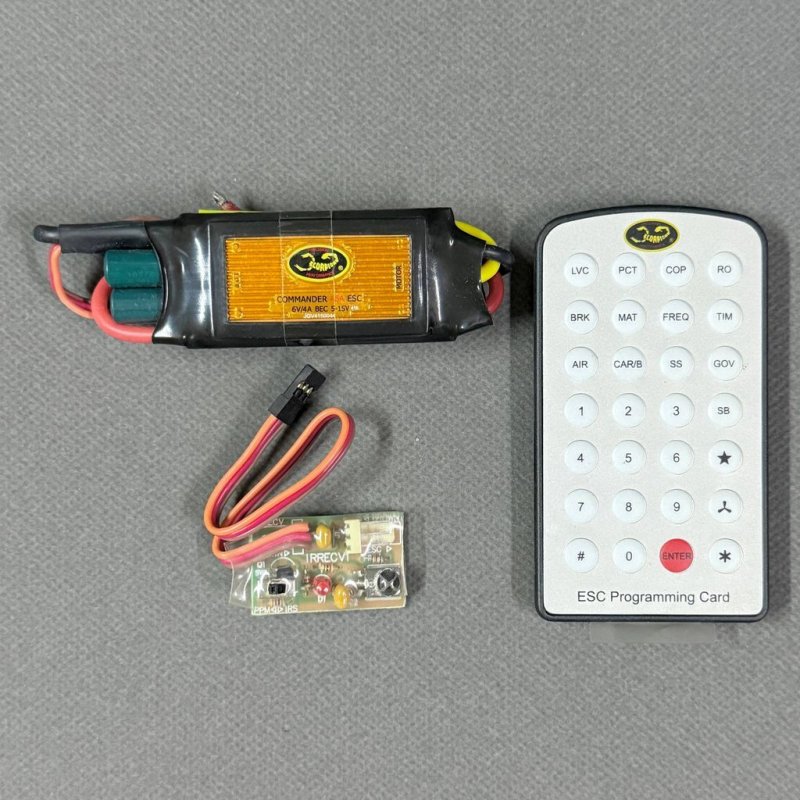

Scorpion SPCR15V45AESC 15V 45A Brushless ESC with 6V/4A BEC for 2-4S planes and helis  [SPCR15V45AESC]

ESC overview and installation guidance

The Scorpion SPCR15V45AESC is an RC-scale electronic speed controller designed for brushless motor systems using 2-4S battery packs, and it includes a 6V/4A onboard BEC to power servos and radio equipment in fixed-wing and rotary models. This article focuses on compatibility, mounting considerations, wiring basics, and the ESC's role in system tuning without presuming additional specifications beyond the model designation.

Compatibility and placement: install the ESC where airflow or mass allows adequate cooling and short motor and battery leads. Keep the BEC output wiring routed separately to the receiver and servos to reduce noise, and avoid running long signal wires parallel to high-current leads. For helicopters, ensure the BEC can supply peak servo loads during aggressive manoeuvres and that voltage dropout is tested before flight.

Wiring and connectors: use correctly sized battery connectors and motor leads that match your model's current expectations. Verify polarity before applying power. If the ESC is used with separate BEC or power distribution, remove or disable the onboard BEC to prevent dual BEC conflicts. Program the throttle endpoints and safety cutoffs according to your radio and motor manufacturer's recommendations.

Tuning role: this ESC provides basic power regulation and a dedicated low-voltage supply for onboard electronics via the 6V/4A BEC. It participates in throttle response, braking behavior, and thermal/current protection where supported by the controller's firmware. When tuning an airframe, adjust governor or throttle curves at the radio or flight controller level and confirm ESC behavior under load in a bench test before flight.

For pilots and builders needing a compact ESC with integrated BEC for 2-4S brushless airframes, the SPCR15V45AESC provides the core functions required for power delivery and onboard electronics supply; confirm installation, cooling, and BEC provisioning for your specific plane or helicopter before flight testing.
