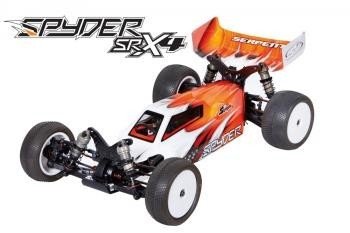

The Spyder SRX4 4wd produced by Serpent in 1/10 scale AWD drivetrain assembly kit, is classified in R/C Models - Off-Road - Buggy - Electric Powered
Spyder SRX4 Buggy 4wd 1/10 top quality Race degree 1/10 scale 4wd buggy. Ready for the racetracks in dirt, clay, grass, astro or carpeting.
Requirements:
- Automobile: Spyder SRX-4
- Course: 1/10 buggy 4wd
- Degree: Competition
- Included: battle framework, human body, rear wing, rims
- Not included: tyres, tyre-inserts, electronics
Features:
- Carbon fiber 2.5mm chassis with composite side plates.
- Big bore 12mm difficult coated shock-absorbers.
- Double belt-driven drive system, with captured long front side gear and open part belt.
- Compact and light front side and rear gear differentials with composite front pulley and rear difficult anodized aluminum diff gear.
- Slipper clutch with friction pads and solid aluminum front side locked clicker drive.
- Durable spring steel drive shafts, wheel axles and drive cups.
- Carbon dietary fiber surprise towers front and backside.
Front suspension
Strong composite lower suspension system hands with mounting spots the optional anti-roll bar. Aluminum suspension brackets with inserts to change set-up. Tiny but effective composite front bumper to safeguard leading end. The angled front side integrated kick up permits smoother landings. The composite front side diff case is a really strong affair to install the diffs, front shock tower, main spline and chassis too.
Steering blocks and c-hubs
The composite steering blocks and c-hubs provide a variety of set-ups with inserts and shaped changeable Ackermann plates of which all 3 composite ones are included.
Rear suspension system
The rear end stocks numerous components utilizing the 2wd MM Spyder, which will be good in the event that you also operate 2wd. Also here a very sturdy structure aided by the diff-case as base to mount diffs, surprise tower, framework and motor mount to. Strong composite lower hands. Suspension brackets in aluminum additionally here with inserts to play with set-up. The beefy composite uprights offer 3 setup place in the top and inserts in the underside.
Back wing and wing holder
The strong clear polycarbonate wing is installed to the nylon back wing holder. The wing angle are changed utilizing the included wing angle spacers: 0, 2, 4, 6, and 8 angle are typical included.
Anti-roll bar
The front side and back allow mounting anti-roll pubs. As default Serpent just materials the rear ball-raced anti-roll bar, as which is used more commonly.
Engine mount
The motor is installed securely on thick 3mm cnc machined 7075 T6 alu engine plate, which doubles as cooler. Machined slots enable movement of the engine to fine-tune the pinion/spur gap. The engine owner also holds the shafts for the part belt system, and enables mounting.
Body mounts
The strong composite body mounts are often located in situation used. As alternative velcro may be put into the side associated with the chassis stiffeners.
Body
The body is created in the same Avenger design whilst the 2wd buggy and shares its appearance and compact shape. Supreme quality clear polycarbonate is used. The body comes with a masking sheet.
Rear wing and wing owner
The strong clear polycarbonate wing is mounted towards the nylon back wing owner. The wing angle may be changed using the included wing angle spacers: 0, 2, 4, 6, and 8 angle are included.
Rims
Durable Serpent designed wheel are contained in white color for front and rear (tires and inserts aren't included).
Clicker system
Standard within the car the solid clicker can be used for permanent 4wd, which for high grip conditions is best to utilize. The optional clicker system requires couple of extra parts only and may be utilized well in medium and lower grip conditions, allowing the leading tires to spin more free and produce more corner entry rate as required.
Slipper clutch
This light slipper-clutch unit, is a spring loaded 3 pad variation, enable to regulate the energy distribution.
Shock towers
Extremely durable 4mm thick carbon fiber front side and back shock towers with 4 jobs for surprise angle.
Shock remains
Very durable aluminum surprise stays coupled with a tiny bushing and nylon flanged nuts.
Central spline
The composite central spline where the front gear runs, creates a tremendously strong framework stiffener, appropriate in the heart of the automobile. It protects leading belt well against debris and insures no gear can skip.
Battery and remains
The saddle pack battery pack (not included) is kept in place by 2 user friendly composite battery-covers. Little machined aluminum peanuts are included to keep them set up.
Electronics
The middle of the car enables a lot of area to mount the most popular speedo and receivers, plus the transponder. The automobile also enables enough room allow nice routing of your cables. The shorty type servo is mounted on incorporated composite stands. Various spacers and horns are included to suit the most used servo brands.
Drivetrain
The dual belt system is extremely durable and light. The Kevlar reinforced front belt is completely captured, so well protected against debris which increases life. The Kevlar reinforced part belt is open because of its location, additionally the closely fitted body will avoid debris from holding the gear. The belts operate on accuracy machined pulleys. The front gear tension could be changed with eccentric inserts.
Gear-diffs
The two compact oil-filled gear differentials front and back. These super smooth units are light and compact and extremely durable. The differentials may also be very simple to build and are usually very low upkeep. The diff-inserts into the instances enable to you operate the lowest, mid or high position which alters hold.
The rear gear diff has a hard coated aluminum gear for durability.
Drive shafts
Serpent springtime steel CVD drive shafts and wheel axles for durability. Also the lightened differential drive cups come in spring steel.
Suspension pins
Produced in durable and strong Serpent hardened steel. Captured units with rounded end which turn in tiny ball-cups in the suspension brackets, so it?s super free.
Shocks
Serpent hard coated surprise figures and shock tops for super smooth operation and durability. 3.2mm shafts with brand new X-ring package and molded pistons. The shocks may be used either emulsion or membrane layer setup. The surprise springs have ground concludes, checked and matched for perfect equal procedure. Ride height can be simple set using the threaded collars which have o-rings inside to stay in place.
Steering
The fully ball raced angled dual axis steering system with built-in servo saver function, offers an almost perfect Ackermann effect. Ackermann are set with tiny dishes which mount to the steering hands. 3 types included to play with. The angled system will avoid bump steer.
Framework
The light 2.5mm carbon dietary fiber framework gets the right flex combined with composite side-guards / framework stiffeners and center spline. All holes are countersunk to own a fully flat bottom surface. Holes are centered and symmetrical for also flex.
The overall layout offers a 42/58, 44/56 weight stability. Optional weights and brass components may be used to influence that.
