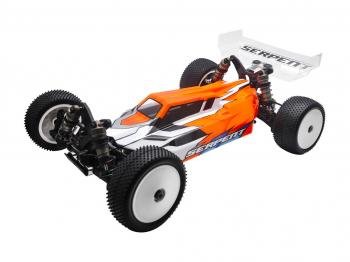

Serpent SER500015 Spyder SRX4 Gen3 4wd 1/10 EP [SER500015]

Price:

USD$431.24

Brand:

Serpent

Model:

SER500015

Condition:

Brand New

Quantity:

Write a review

alt="Serpent SER500015 Spyder SRX4 Gen3 4wd 1/10 EP" title="Serpent SER500015 Spyder SRX4 Gen3 4wd 1/10 EP"

Description

The Spyder SRX4 Gen3 4wd EP produced by Serpent in 1/10 scale Buggy series AWD drivetrain assembly kit, is classified in R/C Models - Off-Road - Buggy - Electric Powered

Component 1: The framework in the all new SRX-4 Gen3 is 7075-T6 aluminum, is narrower in design for better flex characteristics, whilst it also contains a brand new packaging concept the front pivots and diff place, too offer greater ground clearance. Front ground approval on most 4wd vehicles is a concern, it was a place for sure we wanted to enhance. Using the brand new improved ground approval, it significantly improves jump takeoff and landing. Less scrubbing on jump faces and less lawn darts, improves your power to run quicker lap times lap after lap. Trust united states when we state your local carpeting track owner will appreciate the advancements in this region, particularly if they've wooden carpeted jumps.
Part 2: Not only did we lighten the framework in which we felt we could to reduce fat for people who want to run their automobiles as light as you possibly can, we also included areas to add fat. This adding of weight is a good tuning option for low grip completely as much as high hold race conditions. The ability to adjust your body weight stability is a simple option to get those additional tenths of a second that often times divide you against winning or getting second
Part 3: along side it pods are molded from premium composite nylon and mounted to your framework by means of a tongue and groove design fixture. This concept improves flex faculties over the duration of the chassis.
Incorporated into the part pods are the 4 mounting pegs for the human anatomy. Whether you prefer making use of human anatomy videos or velcro, you can use these pegs to correctly install your body time after time. These pegs help make fully sure your human anatomy does not fall down if your vehicle is being turn marshaled by the human body. These tiny positives merely improve your pastime experience
The steering system on SRX-4 Gen3 has additionally been updated to reduce maintenance time, enhance drivability, reduce any undesired bump steer, and produce a smoother linear ackerman curve. To make this happen, many design needs needed to be met.
Part 1: The multipurpose front/rear pivot obstructs also double as steering post mounts and pivot insert holders. This design assists in easing the general part count and simplifies the design. They're also detachable without having to eliminate the front transmission.
Part 2: the complete steering system is currently positioned on equivalent angle/plane whilst the kickup angle. In this way, it reduces the bump steer through the entire range of suspension travel. It also produces a far more constant ackerman curve through the whole array of steering throw and also through suspension travel.
Part 3: The steering bellcranks and also the period of steering crossbar have all be re-designed to offer the suitable steering throw and ackerman bend. The steering rack articles are as short as you possibly can to reduce twist and flex regarding the chassis and steering system itself. To reduce upkeep time, the system ended up being designed for complete access through the top down.
Part 5: The servo horn length and its relationship on bellcrank have all been updated. This update will give you the most constant feeling from radio input on reaction of the automobile. The servo mount is drifting and mounting location is as close to the center line of the framework as you are able to. By mounting it as close to the center of framework you get top flex characteristics in a bigger selection of conditions
The SRX-4 Gen3 , has a brand new, up to date driveline setup. Not only have actually we made it the absolute easiest gear drive automobile to ever be labored on, we have quick access differentials at both front side and backside. The latest layout may be built to have perfect left to right weight distribution with a number of batteries. This exceptional fat circulation improves managing in most condition. Let’s take a good look at the masterpiece we have produced.

component 1: contained in the SRX-4 Gen 3 are 2 super light-weight gear differentials. The differentials may be run with either 2 or 4 gears. No matter what setup you select, they will show dependable atlanta divorce attorneys condition you throw at them.
Part 2: a corner differential is available by 4 vertical screws and 2 horizontal screws and you will should eliminate at least one shock nut. The maximum area of the elimination process just isn't needing to bother about the camber link mount dangling, disassembly of the back suspension or having to take off the wing. Removing any un-necessary parts has been entirely prevented. This allows you to definitely save money time hanging out with your friends, much less time invested focusing on the car.
Part 3: The differential height could be adjusted in 9 various levels, by increments of 0.5mm. Winning and losing could be defined by the corrections in your vehicle, here we spare no cost. The inserts are blocked into position to make certain that the oval inserts can’t turn slightly during procedure causing harm to the interior gears. Sadly our rivals copied our past design of the oval insert, but didn’t realize what we had learned about keying them into position. Shame for you..:)
Part 4: All back drive gears have experienced the width risen to 10.5mm. Aided by the escalation in gear width, you can run on any surface and start to become rest assured you won't remove a gear. Along with widening the conventional gears, we likewise have inventory rushing internal gears, that are a 6mm wide. This reduced width will give you massive gains in rotating mass, paid down friction as well as less energy train loss. Easily must say it, yes, we are here to win and prepared to keep it that way.
Part 5: when you have the differential out for upkeep, changing the diff height or swapping interior gears, the idler gear are eliminated by just one switch head screw. You won't have to eliminate the transmission instance or slipper construction through the chassis. This permits one to do any necessary work inside the gear field aided by the minimum amount of construction related dilemmas. Absolutely nothing competes with brilliance.
Part 6: not only are you able to effortlessly access a corner differential and idler gear. We didn’t forget about how important it might be to maintenance or change the most effective shaft. To get into and or change the most effective shaft you will can just remove the slipper bolt, remove the slipper, then eliminate the 3 screws that holds the motor plate, and growth you are able to slip the utmost effective shaft out.
Part 7: The slipper installation regarding SRX-4 Gen3 is nothing in short supply of class leading technology. Not just do we've a solid full-time 4wd slipper assembly available as an alternative, we now have a restricted slide Differential (LSD) slipper assembly. That is a accurate option to circulate power to the front wheels than oil driven differentials. In the case of a gear diff, the oil thins as you run, changing the performance of one's car, in this case, it is held more consistent with spring stress. This permits one to run similar laps, lap after lap the entire battle. Both slipper assemblies share exactly the same top shaft, to alter this in a really brief period of time without the removal of extra parts.
Part 8: the trunk belt never been easier to remove, placed on, and take action yet again on a belt driven 4wd vehicle. You'll simply take away the rear belt using the removal of just one circlip. You desired it simple, we replied the decision. You don’t must remove the slipper, so you won’t have to adjust that should you just wish to change the gear between training, qualifying or mains. These low friction belts can last and final and final, in reality we think you will be stunned by just how long this belt lasts
Part 9: with regards to stumbled on the leading belt, we also wanted this become a breeze to maintenance and or replace. It may be done at exactly the same time as a front differential adjustment or alone. The procedure is simply the exact same and that can be performed using the remove regarding the 4 front top bulkhead screws, the removal of one steering rack screw and popping from the servo website link. This is really also easier than changing the trunk diff. Yes it truly is that easy, difficult to think we realize, it is possible to thank united states later..:)
10) to regulate the leading gear tension, we also wanted this to be easy, but additionally extremely adjustable. It doesn't matter what front differential position you run, it is possible to fine tune the belt tension mounts up by usage of shims. You simply place any 3mm shim underneath the mounts. This way you can make it because tight as you want or free considering your tracks condition. In the event that you run 13.5 this will be quite ideal for you to reduce drag while increasing efficiency
Part 1:
brand new Narrow back Pivots / Insert System:
When testing, we found that the pivot system from the SRX-2 Gen3 supplied an astonishing quantity of rear hold cornering and lap rate. This during assessment provided the very best overall traction, awesome forward bite and gave the very best stability front side to rear. Apart from the Narrow pivots, you'll also have the ability to buy, medium and wide pivot sets even for more adjustability as optional parts
The new system allows us to get 2 levels total in or out of 3 degrees which can be standard. This method is adjustable 0.5 to 1 degree in nearly every direction. We didn’t cheap out like other makers, we actually made a whole group of inserts. This may help increase the adjustability in a much bigger selection of conditions. We should see this automobile excel in every condition, anytime, anywhere. In order to do that, you need to have all of the tools to do this available. Oh, and I also almost forgot to inform you how amazing they look anodized jet black with silver chamfered edges!!!!
Part 2
completely adjustable new upright:
new Track width, axle position, and Roll center changes.
A: The new back uprights are section of our movement to really make the many versatile buggy on earth. With many brand new features on this upright it's going to literally make the head spin down.
B: The upper camber link has a variable size, that will be carried out by method of shims involving the camber link mount and upright. The camber link mount is flappable in order that there clearly was a fantastic overlap to make certain that no duration of website link is missed.
C: The vertically installed ball stud further enhances the setup, to help you adjust the Roll center in absolute best total perfect the setup.
D: The wheel axle are adjusted in 1 and 2mm increments in or out. This can enable you to adjust the driveshaft length, and the place associated with the external driveshaft pivoting point. This modification has an influence on rear end hold and lean. We offer the first 65, 66 mm drive shafts as well as two brand new ones, 67mm and also 68mm.
Age: You can adjust the roll center through 7 various positions in reference to the exact distance far from the axle. Those steps are 0.5mm different. Then you're able to take the same inserts and adjust the offset of the upright by way of 1mm.
E: Finally, we developed a completely brand new pair of hex adapters that make all these axle alterations possible. The newest set has an offset of 4, 5, 6, 7, 8, 9mm.
when you yourself haven’t figured this out chances are, we suggest severe company. There's absolutely no question, winning may be the first thing on our minds
Part 3: brand new rear surprise geometry utilising the shocks mounted towards front part associated with the supply.
As soon as we developed our first SRX-4 we had the shocks mounted on rear part for the arm. Since that time we now have developed, redefined the trunk suspension geometry and moved the shocks to your front part of rear supply. Moving the rear shocks to the front side associated with the supply, has been shown to be beneficial in cornering, jumping and sheer rate. With that in mind, we went back, updated the height of tower to maximize the straight down travel and up travel. We tested numerous towers and perspectives for optimum grip, cornering and security. The end item ended up being an easier to push, yet somewhat faster automobile. The first time you hit the track with this specific car, you will feel the lateral hold it makes. Here is the exact same types of hold, gives self-confidence to overtake your rivals inside toughest corners and tightest windows
Part 4: No 4wd car will be complete without a ball bearing raced back Anti-Roll Bar. This fully integrated sway bar system is quite simple to install and eliminate with only two switch mind screws. If you desire to use a typical rear camber website link mount, you are able to swap it down a breeze. If you truly love your sway bars, you will then be excited to understand you have a big variety of back roll pubs to select from.
We have 1.0, 1.1, 1.2, 1.3, 1.4 and 1.5mm roll bars to select from. No matter the track conditions, you'll be significantly more than able to dial because rear suspension
We have discovered plenty having created numerous 4wd offroad automobiles throughout the last ten years. Here we really wished to make sure we enhanced on our previous designs and incorporated ideas that will allow us more freedom into the future. Naturally you need to focus on the IFMAR appropriate offset wheel then design after that. The key goal ended up being balance; we needed a front end that mated well aided by the rear associated with the car. Precision, drivability and simplicity had been all areas we focused heavily on. Let’s introduce the parts shall we.
Part 1: new front pivot/insert system. Right here we spared no cost on adjustability. You are able to change the kick-up angle from 6 to 10 levels, change the arm sweep angle from -2 to +2, and adjust the track width narrower or wider. Let’s just say, the inner pivot system has more than enough corrections to refine your front end for almost any track condition. You certainly can do all of this utilising the same exact product system bought at the trunk for the car.
Part 2: The caster block, was totally redesigned to possess a certain offset, caster range,and the positioning for the roll center is modified to enhance the handling in racing conditions of today’s tracks. It had a need to be strong and now we desired it to be because adjustable as possible. With this in mind we gave it two upper link alternatives, where you could install a vertical ballstud.
The standard caster block utilising the 0 deg insert is 10 total degrees of caster. With this point you are able to adjust it in increments of 2.5 and 5 levels in more or less. This provides you an overall total consist of 5 levels entirely as much as 15 examples of total caster within wheel.
Part 3: The steering spindle has also been re made to improve scrub offset as well as mate the caster block in ways we could adjust the roll center by 3, 1mm shims. The ackerman arms are mounted on underside of this spindle plus the bump steer may be modified by shims on the top side underneath the ballstud. The outer bearing was increased to a 5x13x4 bearing, to improve the life span and durability.
Part 4: These brand new Ackerman hands that are mounted to the steering spindles are formulated form 7075-T6 aluminum and so are black colored anodized. These 3 alternatives, 0 notches, 1 notch (included in the kit) and 2 notches, these choices will allow you to adjust the total ackerman associated with SRX4 Gen3. 0 Ackerman may have probably the most Ackermann, while 2 has the least Ackerman. You should use these to fine tune your car or truck to many all conditions
Part 5: the leading end would nothing without an Anti-roll bar. On the front end, we've a nicely packed from roll bar system it is simple to simply take on/off and adjust regarding fly aided by the minimalist quantity of effort. Right here you'll adjust the bar from 1.2mm, 1.3mm, 1.4mm, 1.6mm and 1.8mm options
One thing great towards SRX-4 Gen3 may be the space. You have got ample room for your electronics. You should use a full size or shorty servo, full size receiver whilst still being fit your rate control. There's also space behind the electronic devices as well as in front of this motor for a fan if you decide to use one. This might be helpful in the 13.5 category
In the category of 4wd offroad, it’s tough in order to make a body look good. Generally speaking they are blocky, big and bulky looking. We invested lots of time attempting to allow it to be look sleek, stylish and aerodynamic. In addition we attempted hard to match the stunning design of the 2wd, right here regarding the 4wd. We wanted them to appear because similar as you can therefore no matter which one you had been driving they felt much like you. We think you will definitely concur, the styling is fresh, sharp and tough to beat.
The 1/10 electric offroad marketplace is an exceptionally challenging market with so much at stake, but our company is confident this new SRX-4 Gen3 will drive the direction of the class to someplace it has never ever been prior to. There are numerous good vehicles available, but, at Serpent our absolute goal was to produce a game changing, game winning vehicle, which would be an inspiration to anybody willing to wield one. Good had not been appropriate, we wanted great. With long tiring hours within track and behind the computer, we worked diligently as a company to give you the absolute best product we could. Our lead Designer Billy Easton, spear headed this system and had only 1 goal, to just take the 4wd market to another level and create a new 4wd 2nd to no other.
Only At Serpent our company is extremely proud to introduce the brand name new…..
Serpent SRX-4….Gen 3
