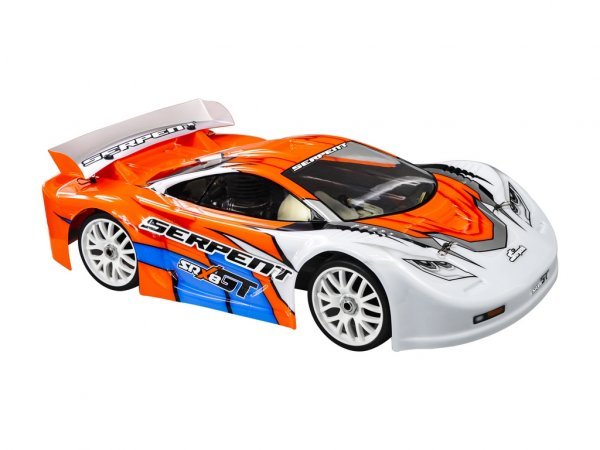

Serpent SER600062 SRX8 GT RTR 4wd 1/8 GP [SER600062]

Price:

USD$3,048.71

Brand:

Serpent

Model:

SER600062

Condition:

Brand New

Quantity:

Write a review

alt="Serpent SER600062 SRX8 GT RTR 4wd 1/8 GP" title="Serpent SER600062 SRX8 GT RTR 4wd 1/8 GP"

Description

The SRX8 GT 4wd GP produced by Serpent, is classified in

Chassis plate
Chassis plate in 3mm 6061T6 aluminium. Kick-up angle on front for stabile landings. Countersunk holes. Slots to discover leading and rear suspension system mounts correctly. Angled edges to improve stiffness.
Bumper
Large foam bumper, which will be held in position by a upper and reduced nylon bumper plate.
Chassis stiffners
Composite stiffner front and back, to provide extra tightness, but nonetheless allow some flex as needed.
Radiobox
This radio field design permitted united states to own plenty of new advancements with this automobile, including, as seen above a brand new updated center diff construction and super easy to regulate braking apparatus. The flush mounted transponder and carbon fibre decals, set this thing besides such a thing you
Steering obstructs assembly
Composite steering blocks along with 10 degr C-hubs for exact steering. Spring steel wheel-axles with big size bearings and larger inner with accuracy threaded aluminum wheel-hubs with offset . Flanged wheel nuts to ensure you will perhaps not loose a wheel nut in a race.
Front suspension system
Durable oversized lower suspension system hands in strong composite nylon. On the reduced side the special shaped downstops screws are installed. The low shock-mounting pins are guaranteed with a tiny grubscrew from the bottom.
Front anti-roll bar
the leading anti-roll club system, consist of a spring steel bend cable, which can be led through the diff-cases and runs in metal adaptors. The wire is for this lower suspension arm, with a captured adjustable threaded pivot ball, for very accurate and low friction procedure and simple tuning.
Shocktower and bodymounts front
4.0mm dense aluminium anodized shocktower with 3 top placement holes the shocks and and 4 holes for roll-center jobs. Strong, tall adjustable bodymounts with wide top-section to seat the body well.
Rear suspension arms and uprights
Durable longer oversized lower suspension system arms in strong composite nylon. Regarding the reduced side the special downstops screws are installed. The low shock-mounting pins are guaranteed with a small grubscrew from the base. Composite uprights with 3 upper roll-center positions. Strong steel track-rods with L/R threading and strong balljoints to pre-set camber. Intense metal wheel-axles with large size bearings and larger inner people with precision threaded aluminum wheel-hubs with offset. Flanged wheel nuts to make sure you will perhaps not loose a wheel nut in a race.
Shocktower back and Bodymount
4mm dense aluminium shocktower, built-into a corner section for additional stiffness, with 4 upper positioning holes for the shocks and 4 holes for roll-center roles.
Polycarbonate rear low aero wing. Main back bodymount using the rear bodypost, that are adjustable high effortlessly .
Captured pivot pins and balls and bolted hinge pins
All spring-steel hinge pins are either captured or bolted in position and made in spring-steel quality. This relieves stress on the hinge pin whenever adjusting the kick up, or anti squat. Your pin is absolve to turn to any angle without binding.
Shock absorbers RCM big-bore 16mm / RCM surprise springs
Anodized aluminium surprise figures with durable 4mm shock-rods. Pre-load adjuster clips for ride height environment. Shocks utilize big diameter membranes and large diameter O-rings and bushings to generate a supersmooth and leak-proof package. Big diameter pistons are held set up by a nut on polished shock-rods tops. Start kind spring retainer to allow dirt out simple.
Color-coded progressive competition surprise springs are provided the first standard set-up and all springs are grinded flat top and bottom, and checked separately for tension and length and generally are matched.
Lightweight gear differentials - 2-speed gearbox
really compact gear differentials with really smooth steel sintered gears, and metal shaft. Perfect sealing case with special gasket and O-rings. Extremely light and durable outdrive cups in spring-steel. Hardened spring-steel diff-coupler 13T with connector operating in 2 oversized bearings.
The automated 2-speed SL8 XLI gearbox with centrifugal shoes. The gearbox comes straight from the Viper 990 on road 1/8 automobile. Gearing 58-63T
Front and rear drive
leading has captured driveshafts making use of a CVD system. A corner has durable black metal driveshafts with hard steel pins.
Body
Serpent superlow SRX8 GT human body, fully pre-painted in a very appealing design and pre-cut too. The lower body has exceptional management and downforce
Tyres / wheels
The Cobra is fitted with premounted DragonRC GT rushing tyres. The tyres are glued on durable but flexible DragonRC race-wheels with cell-foam inserts. A super-package for excellent grip regarding the most typical surfaces
Transmitter and receiver
The DragonRC DTS-3 2.4GHZ pistol kind transmitter
the tiny and light receiver is equipped within the radiobox regarding the car.
Engine
The Serpent S21 pull begin engine for SRX8 GT has a outstanding quality level, powerful, combined with easy beginning and long-lasting runtime, makes this motor the best partner to begin race. The motor is installed securely on machined aluminium motor mounts.
Oils and oil
Top-quality silicone shock-oil, silicone diff oil plus some oil is used to meet the typical set-up.

Manual and set-up
color individual manual with an easy task to follow actions, exploded views for simple spares ordering. A separate manual the transmitter additionally the rate controller is included.

Decals
grayscale promo body-decals ; Serpent generic and SRX8 GT ones.

Packing
The RTR kit is loaded in a colorful big strong packing package with protection for car and transmitter.
Serpent SRX8 GT RTR 1/8 4wd GP

principal features
- race prepared high end 1/8 gas powered GT
- expert pre-assembled and pre-set
- 4wd with cardan shafts, 2 compact ,durable
geardiffs, compact radiobox , unique angled
steering system, 16mm big bore shocks, ball
raced anti-roll pubs FR and RR, 6061T6 aluminum
shocktower FR and RR, durable suspension system and
transmission parts, captured suspension system pins,
the works !!
- Serpent S21 pull start engine
- Serpent .21 Pipe set refined Inline
- Dragon-RC pistol type transmitter 2.4 GHz
- Dragon-RC 15kg strong servo with steel gears
- Dragon-RC high hold premounted GT racetyres and
wheels
- prepainted and precut ultra-low GT bodyshell and
large backside aero-wing
- full color user manual and decal set included

needed seriously to complete the automobile:
- 4 x AA batteries for the transmitter
- Receiver battery NIMH / LIFE / LIPO
- fuel with 16 or 25per cent nitro and fuel container
- glow plugstarter
