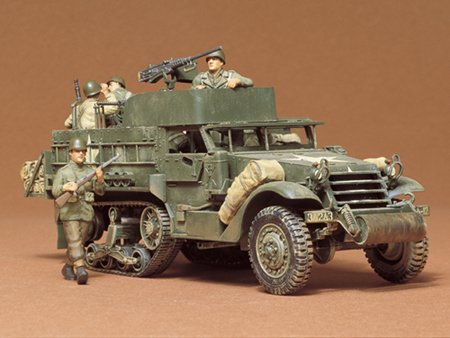

The U.S. Armored Personnel Carrier M3A2 Half-Track WWII produced by Tamiya in 1/35 scale assembly kit, is classified in Scale Models - Military Series - Armored Cars
In regards to the U.S. M3A2 Personnel Carrier
The half track first appeared as a normal weapon in World War II and offered because the main personnel carrier of U.S. and German armoured divisions. It adorned war histroy along with its numerous variants and characteristic designs. As an accompanying car regarding the tank, it revealed its flexibility to the full.
There have been big distinctions as follows between your U.S. and German half songs. Inside U.S. half track, motor energy ended up being transmitted also to the leading axle and steering was made just through the front wheels. Into the German half track, the front wheels had no brake, and car managed the direction of travel by changing the angle associated with the front wheels or by fractionally idling the sprocket wheel on a single side throught the link according as steering angle ended up being under or over 15 levels. These distinctions arose because the Us americans originally made their half track by changing the rear tires of a vehicle by songs, even though the Germans originally made theirs by the addition of wheels toward front of a full-track car to make its human anatomy longer. The Us americans designed their half track as an armoured fighting car right from the start. However, the Germans used the same framework both because of their non-armoured vehicle and armoured disadvantage. Even though it showed desired performance on European roadways, its mobility had been much restricted within the industry, especially in muddy places, because leading tires are not driven together with motor didn't provide sufficient power.
It absolutely was known since World War ! that the tractive force of a vehicle with two back axles would remarkably increase if tracks were fastened round its backside tires. Many nations had continue their efforts to study and develop the half track, rear suspension for the songs being the key item of these research. Under these circumstances, a Citroen-Kegresse half-track car succeeded in operating over the Sahara Dessert, which renewed their enthusiasm for developing the half track.
In the us, the Ordnance Bureau associated with the Department associated with the Army started earnest research and development of the half track in 1925 when it purchased two Citroen-Kegresse cars from France. The P17 half-track tractor bought from France in 1931 had a very great influence regarding the United states designs and a few ideas of the half track. The very first U.S. army half track had been the T1 experimental half-track reconnaissance car made in December 1932 by Jos. Cunninghams, Son & Co., of Rochester, ny that was then developing the T1 experimental light tank. The newest half-track automobile has an open-top human body and an improved version of Citroen-Kegresse running gear.
By 1937, non-armoured half tracks, T1 - T9E1, for reconnaissance, hauling weopons, carrying workers and transporting material had been trial-manufactured by Cunningham, Linn, GMC and Marmon-Herrington. We were holding designed to be properly used primarily by mechanised cavalry and artillery. The half tracks T9-T9E1 trial manufactured by Marmon-Herrington had been in line with the chassis of this Ford 1 1/2 ton 4 x 2 truck of model 1936 and combined front drive with rear-bogie tracks. These half tracks had kegresse type bodies of filled with faults. Within the meanshile, Marmon-Herrington, and another other manufacturer jointly developed suspension system for plastic tracks of one-piece belt kind devised by B.F. Goodrich. The suspension system attained excellent leads to tests and ended up being adopted by the Department of Defense. It later on became the fundamental suspension of the M2 and M3 half track series and additional the conventional gear of U.S. half tracks.
Realizing that the German mobile troops for the blitzkrieg tactics at the start of World War II mainly consisted of complete and half-track automobiles, the People in the us, who currently had the suspension system with high efficiency, started, manufacturing half songs in big amounts. There were an excellent selection of United states half songs. Their basic types mass-produced and earnestly utilized were the following:
Half Track M2: 1st production half track formally adopted by the U.S. Army. In 1939, an experimental vehicle known as "T14 Half Track APC" was made by Diamond T. Motor on the basis of the human anatomy of a wheeled armoured vehicle which was vehing used by armoured cavalry. In September 1940 to 1943, Autocar manufactured 2,992 and White Motor Company 8,423, which made a total of 11,415.
Half track M2A1: A modified version of the Half Track M2. In the top right for the driver seat, it carried a ring mount M45 (often called "Pulpit") for a 0.50-inch (12.7 mm) Browning heavy-barrelled device gun M2. From October 1943 to March 1944, a total of 1,643 were manufactured.
Half Track M3: it was meant to carry personnel and product of varied units in armoured divisions. Autocar and Diamond T. Engine Car Business produced a total of 12,499 in synchronous with all the Half Track M2. The M3 and M2 were provided towards Allies such as the Soviet Union and Britain as well as to the U.S. Army.
Half Track M3A1: A modified form of the M3. Such as the M2A1, it carried an anti-aircraft ring mount M45 (for a 0.50-inch Browning) regarding the upper right of the motorist chair. From October 1943 to March 1944, an overall total of 2,862 were manufactured by White, Autocar and Diamond T. just like the M3, the M3A1 was utilized in World War II by devices in U.S. armoured divisions as an armoured command vehicle, armoured ambulance automobile, armoured radio automobile, and armoured basic function vehicle. The M2A1 ended up being also employed by Uk armoured troops. Avariation with a recovery jib on the leading ended up being additionally utilized by the British as an armoured recovery car.
The M3A2: The final manufacturing form of the M3. This was an M3-based "general purpose car" designed to be properly used rather than the present M2, M2A1, M3, and M3A1. In July, 1943, a model called "T29" was finished and, in October 1943, accepted for manufacturing due to the fact Half Track M3A2. It was a much polished automobile. From 1944 in, the M3A2 saw active service while the primary vehicle of armoured infantry in armoured divisions. The M3A2, just like the M2 and M3 series, ended up being a light armoured fighting automobile with open-top human anatomy, to which hard-faced armour dishes had been welded or bolted. Armour ended up being 6.25 - 12.7 mm in thickness, the nose of the vehicle being protected with relatively dense metal plate. The M3A2 accommodated 5 - 12 guys i.e. one fully equipped platoon.
The M3A2 carried the standard weapons comprising an anti-aircraft 0.50-inch Browning heavy-barrelled device weapon M2, 0.30-inch Browning machine weapon M1919A4, 2.36-inch rocket launcher (bazooka) M9 or M9A1, 0.45-inch submachine weapon M3, twelve 0.30-inch rifles and twelve Garand rifles. In stowage boxes within the automobile, the following ammunition ended up being carried: 330 rounds of 0.50-inch machine-gun ammo, 2,000 rounds of 0.30 inches machine-gun ammo, 6 A/T rockets M6, 24 mines M1, 48 hand grenades and 180 rounds of 0.45 inches machine-gun ammunition. When necessary, extra machine-gun ammunition(600 rounds for the 0.50-inch Browning and 6,000 rounds for the 0.30 inches Browning) ended up being carried as opposed to two seats.
The M3A2, just like the M2 and M3 show, had a White 160 Ax, 4-cycle, show 6-cylinder, watercooled, gasoline motor offering 143 hp/3,000 rpm. Engine energy had been transmitted through the dry-type single-plate clutch, constant mesh transmission with 4 forward and 1 reverse rates, 2-speed transfer case and banjo-type backside axle to your sprocket tires. The automobile used all-wheel drive system where the front axle associated with split type received energy from the transer case if required. The car carried 227 litres of gas and fuel consumption ratio had been 1.49 km/l. Optimum cruising range ended up being 320 km and maximum speed on good road reached 72 km/h.
Front suspension system was the exact same in construction as compared to an usual vehicle. Back suspension had the following construction: Two rows of four road tires - every wheel had a rubber tyre, 305 mm in diameter and 105 mm wide, that was peculiar to United states half songs - had been connected through links toward bogie construction eequipped with straight volute springs. The belt-type plastic track had been supported by top rollers near the top of the bogie installation by the idler wheel serving as rear human body support. The sprocket wheel engaged with guides in the middle of the track to drive it.
From May 1941 to 1945, the usa produced as many as 45,044 half tracks including the officially designated variations and experimental variations of self-propelled mortars, self-propelled cannons, self-propelled howitzers, self propelled multi-barrelled firearms, etc. plus the M2 and M3 show. This total ended up being constructed as follows: 37,164 personnel providers and 7,880 self-propelled weapons. These vehicles were used in all theatres of war by 16 armoured divisions, separate mechanized cavalry groups, independent armoured groups and some devices in infantry divisions.
In the case of the M3A2, 448 vehicles were utilized per armoured unit during the approximate rate as follows: 72 every single associated with the three armoured infantry battalions; 20 every single regarding the three rifle businesses; 11 towards head office; 11 toward head office business; and 1 to the service company. Details of car allotment tot he rifle organizations inside armoured infantry battalion regarding the armoured division in 1944 are tabulated the following:
The rifle squad vehicle accomodated the driver and nine squad users consisting of just one squad frontrunner, one associate squad leader, five riflemen, one automatic rifleman and another ammo provider. The platoons frontrunner's vehicle carried 12 males such as the platoon frontrunner and their sergeant. The mortar squad vehicle accommodated eight males composed of one squad frontrunner, two gunners, two ammo carriers, two riflemen and something driver. The anti-tank squad vehicle carried seven guys comprising one squad frontrunner, two gunners, two ammunition providers, one riflemen plus one motorist.
Through the Korean War on, america slowly replaced their half songs with fulltrack M113 series cars. Today, about 30 years after the end of World War II, armies of many countries including the Self Defense Forces of Japan remain making use of half songs as fighting cars. We often get the news these half tracks were operating about within the Mideastern war, Vietnam War and riots in South America. In america, but these vehicles are simply just kept in museums or by enthusiasts.
