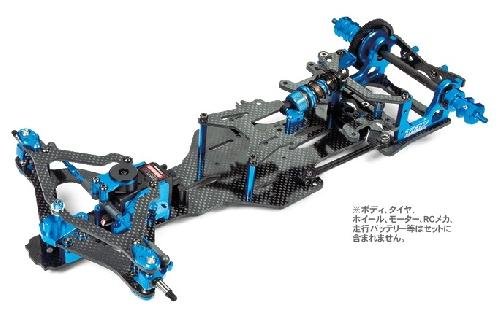

Tamiya 42279 - 1/10 RC TRF101W Chassis Kit  [42279]

Tamiya's Tamiya rushing Factory has come with a fresh variation associated with TRF101, the company's popular R/C formula chassis released in 2013. The TRF101W advantages through the TRF group's wealth of rushing experience and data. It retains lots of the first basic features of the TRF101 framework while incorporating many upgrades to transform the leading suspension system into a wide-tread product, the dominant design of chassis inside R/C formula racing world at the moment.

NEW Qualities::

• Revamped front suspension hands: The redesigned carbon fibre upper supply piece is hitched with carbon fiber reduced arms to create the framework excellent durability and boost the unit's controllability. Both the front suspension system mount and aluminum servo stay have also been redesigned for the TRF101W framework.
• Better Flexibility: The depth associated with the carbon dietary fiber lower deck has been paid off to 2.5mm to give greater framework flexibility, which will offer enhanced security on low-grip areas. Battery posts have now been moved forward, moving pitch loads nearer to the front regarding the product and boosting front side traction.
• Smoother, faster dampening: The newly-designed center brace moves the pitch damper accessory position 2.5mm to your backside, leading to faster reaction and keeping the vehicle near to the track area. The roll damper employs a fresh piston with equal contraction and extension lengths for smoother performance.

Specifications:

• Scale 1/10
• Construction kind Assembly kit
• Terrain usage On-Road
• Drive-train 2WD
• Drive kind Pinion to spur gear
• Drive line Solid axle
• Differential kind Ball pressure dish
• Suspension Independent front/solid axle backside
• Steering apparatus Direct servo
• Shock damper Oil-filled damper
• Shock damper material Aluminum
• Tire type Perhaps Not included
• Tire tread N/A
• Body material Maybe Not included
• Chassis material Carbon dietary fiber dish
• Electronic Speed Control (ESC) Perhaps Not included
• ESC model N/A
• LED Light buckets No
• LED lights No
• Motor N/A
• Bearings Sealed ball bearing
• Adjustable camber Front only
• Adjustable toe perspectives front side only
• Adjustable ground approval Yes
• Adjustable gear ratio Yes
• Adjustable wheelbase Fixed
• Adjustable track width Fixed
• Adjustable shock angle Yes
• Unique feature 1 Newly-designed upper supply piece, front suspension mount, servo stay, center brace and roll damper.
• Special function 2 New: Lower arms are actually made from carbon fibre material.
• Special function 3 Compatible with square-shaped battery packs including shorty packages.
• Special function 4 The pivot-ball website link back suspension has 3 various side website link attachment positions for fine setting corrections.
• Unique function 5 2.5mm dense Carbon Fiber Lower Deck
• Special feature 6 Aluminum Engine Mount
• Special feature 7 TRF Damper
• Special function 8 Newly-designed Front Suspension Mount
• Unique feature 9 incorporated Diff Plate and back Shaft
• Special feature 10 Newly-designed Aluminum Servo Stay
• Needs A 2-channel radio gear
• Requires B 7.2 battery & charger
• Requires C Wheels, tires, human body set, motor, esc
