Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set  [42279COMBO]

Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set
Price:
USD$346.18
Brand:
Tamiya
Model:
42279COMBO
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Formula Cars category
Write a review
alt="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set" title="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set"
alt="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set" title="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set"
alt="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set" title="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set"
alt="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set" title="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set"
alt="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set" title="Tamiya 42279COMBO - 1/10 RC TRF101W Chassis Kit with Savox - SC-1251MG High Speed Servo Combo Set"

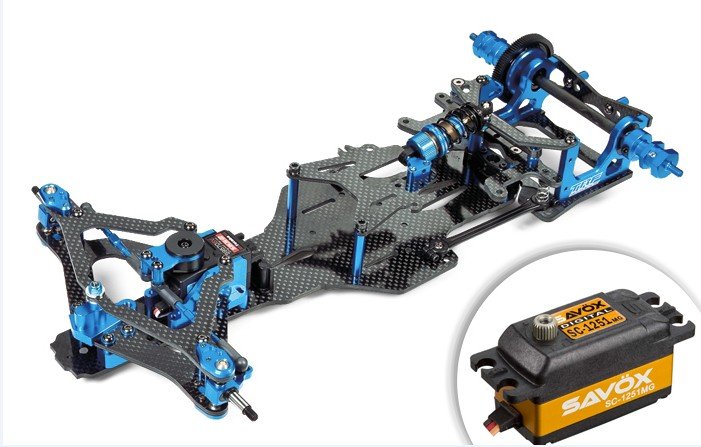

The TRF101W Kit with Savox SC-1251MG High Speed Servo Combo Set produced by Tamiya in 1/10 scale Formula Car series RWD drivetrain assembly kit, is classified in R/C Models - On-Road - Formula Cars

About RC TRF101W


  • The Tamiya Racing Factory has come up with a brand new variation of this TRF101. The "Wide-tread" Specification, designated since the TRF101W F1 chassis kit, is ideally matched high speed race circuits. The TRF101W advantages of the TRF team's wealth of racing experience and information. It retains many of the original fundamental top features of the TRF101 chassis while including several improvements to transform the front suspension into a wide-tread product to help make the framework suitable for "foam-tire" racing. Other tweaks consist of a 2.5mm depth primary framework to really make the car more adaptable to low hold surfaces including a change on damper place to create initial dampening more effective.

NEW Qualities:

  • Revamped front suspension arms: The redesigned carbon fiber upper supply piece is hitched with carbon dietary fiber lower arms to bring the framework exceptional durability and boost the device's controllability. The front suspension system mount and aluminum servo stay have also been redesigned for the TRF101W framework.
  • Greater Flexibility: The depth of the carbon dietary fiber lower deck is paid off to 2.5mm to produce greater framework flexibility, that may provide improved security on low-grip surfaces. Battery posts were relocated ahead, transferring pitch loads closer to the leading of product and boosting front traction.
  • Smoother, faster dampening: The newly-designed middle brace moves the pitch damper accessory position 2.5mm towards rear, resulting in faster reaction and maintaining the vehicle close to the track surface. The roll damper employs a new piston with equal contraction and expansion lengths for smoother performance.

Specifications:


  • Scale 1/10
  • Construction kind: Assembly kit
  • Terrain use: On-Road
  • Drive-train: 2WD
  • Drive type: Pinion to spur gear
  • Drive line: Solid axle
  • Differential type: Ball stress dish
  • Suspension: Independent front/solid axle backside
  • Steering apparatus: Direct servo
  • Shock damper: Oil-filled damper
  • Shock damper product: Aluminum
  • Tire type: Maybe Not included
  • Tire tread: N/A
  • Body product: Not included
  • Chassis material: Carbon fiber plate
  • Electronic Speed Control (ESC): Perhaps Not included
  • ESC model: N/A
  • LED Light buckets: No
  • LED lights: No
  • Motor: N/A
  • Bearings: Sealed ball bearing
  • Adjustable camber: Front just
  • Adjustable toe perspectives: Front only
  • Adjustable ground clearance: Yes
  • Adjustable gear ratio: Yes
  • Adjustable wheelbase: Fixed
  • Adjustable track width: Fixed
  • Adjustable shock angle: Yes
  • Unique feature 1: Newly-designed upper arm piece, front suspension mount, servo stay, middle brace and roll damper.
  • Special feature 2: brand new: Lower arms are now made from carbon dietary fiber material.
  • Unique feature 3: appropriate for square-shaped battery pack packs including shorty packs.
  • Special function 4: The pivot-ball link rear suspension system has 3 various side link attachment roles for fine environment adjustments.
  • Special function 5: 2.5mm thick Carbon Fiber Lower Deck
  • Special feature 6: Aluminum Engine Mount
  • Unique feature 7: TRF Damper
  • Unique feature 8: Integrated Diff Plate and Rear Shaft
  • Special feature 9: Track width with F103 foam tires: F: 198mm R: 198mm
  • Unique feature 10: Track width with F104 rubber tires: F: 198mm R: 180mm
  • Needs A: 2-channel radio gear
  • Requires B: 7.2 battery pack & charger
  • Needs C: Wheels, tires, human anatomy set, engine, esc

In regards to the Savox - SC-1251MG Minimal Profile High Speed Metal Gear Digital Servo


  • This is actually the Savox SC-1251MG Low Profile High Speed Metal Gear Digital Servo

Features:

  • Super high 4096 quality and steel gears.
  • Super light-weight.
  • Coreless Motor provides high speed, amazing efficiency, and low power usage than comparable servos.
  • The aluminum situation design not merely looks good but in addition assists operation to stay cool and smooth.
  • Our servos are totally green - from materials to manufacturing, these servos are environmentally friendly.
  • Ideal as a steering servo for 1/10 area applications and in gliders and airplanes which have thin wing pages.

Technical Specs:

  • Dimensions(mm): 40.8X20.2X25.4
  • Weight(g): 44.5
  • Speed(@4.8V sec/60): .10
  • Torque(@4.8V oz-in): 97.2
  • Speed(@6.0V sec/60): .09
  • Torque(@6.0V oz-in): 125.0
  • Gear: Steel
  • Bearing: 2BB
  • Case: Aluminum
  • Running current (at no load): 150 mA @ 4.8V
  • Operating present (at no load): 180 mA @ 6.0V
  • Stall current (at locked): 2000 mA @ 4.8V
  • Stall current (at locked): 3000 mA @ 6.0V
  • Idle current (at stopped): 5 mA @ 4.8V
  • Idle current (at stopped): 5 mA @ 6.0V
  • Limit angle: 200 level +-10 degree
  • Connector wire gauge: 22 AWG
  • Connector wire length: 300 +-5 mm
  • Horn gear spline: 25T
  • Control system: Pulse width modification
  • Amplifier kind: Digital controller
  • Running Travel: 100 degree (when 1000u->2000usec)
  • Basic place: 1500 usec
  • Dead musical organization width: 5 usec
  • Rotating direction: Clockwise (when1500->2000 usec)
  • Pulse width range: 700->2300 usec
  • Maximum travel: Approx 160 degree (when700->2300 usec)
