Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)  [47362]

Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)
Price:
USD$218.94
Brand:
Tamiya
Model:
47362
GTIN:
4950344473625
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
alt="Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)" title="Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)"
alt="Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)" title="Tamiya 47362 - 1/10 Porsche 934 Black (TA02SW chassis)"
The Porsche 934 Black produced by Tamiya in 1/10 scale with TA02SW chassis AWD drivetrain assembly kit, is classified in R/C Models - On-Road - Touring Cars - Electric Powered

Prompted by a Legend

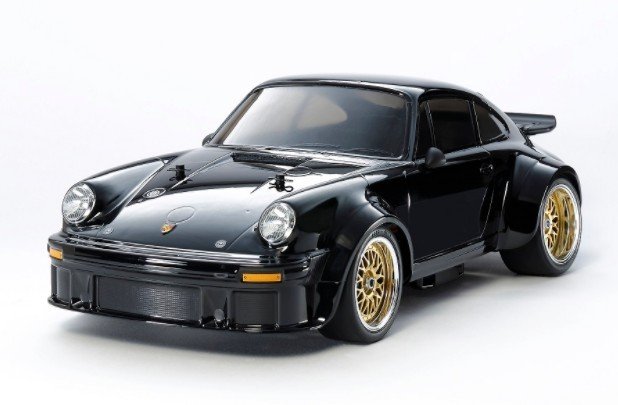

The Porsche 934 dominated its rushing course inside late 1970s, and holds a unique place in Tamiya history as the subject of our very first R/C model kit. In late 1977, we then circulated a restricted version in black colored. This R/C model set up kit is influenced by that little bit of Tamiya history. The accurate clear polycarbonate body has recreations associated with the distinctive flared front/rear fenders and big front spoiler. Back wing, motor hood and side mirrors are recreated utilizing separate parts, while metal plated light situations and LEDs provide an authentic lit-up model.

Quick Wheelbase, large Tread, optimum Fun!

The TA02SW framework provides shaft-driven 4WD, and offers a short (236mm) wheelbase and wide tread setup into the conventional Porsche design. Its based around an FRP dual deck framework, with 4-wheel double wishbone suspension system utilizing CVA oil dampers. Enclosed front side and rear gear instances have actually integrated diff gears, with a ball differential in the rear. Includes 2-piece wheels, tires, and internal sponges - a corner uses wide types. Further hi-spec parts are included, such as for instance FRP damper stays, universal shafts, hard propeller shaft, aluminum engine mount and full ball bearings - a souped-up drive awaits!


specs

  • Length: 435mm, Width: 202mm, Height: 130mm
  • Wheelbase: 236mm
  • Tread (Front/Rear): 162mm/168mm
  • Tire Width/Diameter: 26/65mm (front side), 32/65mm (Rear)
  • FRP Double-Deck Frame
  • Transverse Motor & Shaft-Driven 4WD
  • 3-Bevel Differential (front side), Ball Differential (back)
  • 3-Piece Steering Tie-Rod
  • 4-Wheel Independent Double Wishbone Suspension
  • CVA Oil Shocks
  • Gear Ratio = 8.59:1
  • Type 540 Motor
  • needs electronic rate controller (offered individually)

  •

    Separately Required Things

  • 2-Channel R/C Unit with ESC
  • Battery Pack & Charger
  • R6/AA/UM3 batteries for transmitter
