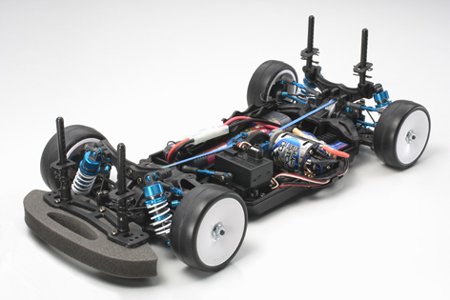

The Kit TA05 R produced by Tamiya in 1/10 scale with TA05-R chassis AWD drivetrain assembly kit, is classified in R/C Models - On-Road - Touring Cars - Electric Powered

Tires and Wheels Sold Separately

The commonly acclaimed TA05 framework has been utilized as a mid-range on-road touring automobile framework, however now Tamiya releases a specially-tuned race variation kit loaded with option components the circuit. It's perfect for entering the Tamiya Grand Prix races with.

Notice When Working With TA05-R

an operating R/C vehicle constantly charges and discharges static electricity brought on by friction from pulley and belts/gears, etc.

The amount of fixed electricity that's built up modifications based on conditions such as for instance temperature, humidity, driving environment, part material, and framework design. Some R/C cars may experience technical trouble or out-of-control driving considering unexpected release of static electricity.

We've found that the component design associated with TA05-R framework Kit (ITEM 49418) makes it reasonably at risk of the situation described above, if used with a metal-geared servo under specific conditions.

As a preventive measure, use of the TA05 Lightweight Carbon Lower Deck (ITEM 53893) is preferred. This carbon and fiberglass deck effectively dissipates fixed electricity generated during R/C automobile operation.

Concerning the Model

  • All-new aluminum center dish, blue anodized aluminum spur gear holder, and carbon fibre damper remains reinforce the framework while reducing fat.
  • Impressive a number of included choice and free parts:

    51000 High Torque Servo Saver (Black)
    51065 TRF415 Suspension Mount (A)
    51068 TRF415 Suspension System Mount (D)
    53539 5.5mm Aluminum Spacer Set
    53640 5mm Aluminum Bolt Nut (Blue)
    53642 5mm Aluminum Ball Connector (Blue)
    53644 Aluminum Stabilizer End (Blue)
    53685 TRF415 Front Bridge Suspension Mount (A)
    53823 Clamp Type Aluminum Wheel Hub (5mm thick)
    53836 48mm Swing Shafts for Assembly Universal Shaft Set
    53849 TA05 High Precision Diff Joint
    53857 04 GP Spur Gear 105T (TA05)
    53869 5mm Aluminum Short Ball Nut (Blue)
    53871 48mm Lightweight back Swing Shafts (Blue)
    53874 TA05 High Precision Center Pulley Bushing
    53894 TA05 Carbon Strengthened A Parts
    53895 TA05 Carbon Reinforced K Parts
    53897 TA05 Aramid Drive Belt (Blue)
    53899 Reversible Lightweight Suspension Set
    53918 TRF Damper Low-Friction V Parts
    53935 TA05 Wide Pitch Diff Pulley
    53571 TRF Fluorine Coated Damper
    53842 TA05 Stabilizer Set (F&R)

  • TRF Dampers (Blue), Damper Springs (White), Front/Rear Stabilizers, and Aluminum Turnbuckle Shaft (Blue) may also be one of them installation kit.
  • R/C system, ESC, battery, body, motor, tires, and pinion gears are sold individually.
