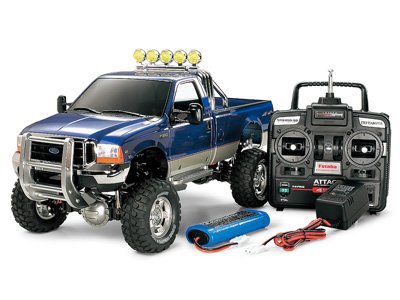

Tamiya 57059 - 1/10 R/C Ford F-350 High-Lift Full Operation Kit  [57059]

Electric R/C set up kit of just one of the most extremely representative American pick-up vehicles, the Ford F-350. The model features practical ladder frame, 3-speed transmission and shaft drive 4WD system. Highly detail by detail injection molded body and large diameter tires boost the fashionable high-ground-clearance look. Original marking stickers add to the truck's general realism.

METAL & METAL PLATED COMPONENTS

• An abundance of steel parts particularly ladder framework, under guard, front side guard, leaf springs and aluminum friction dampers are included.
• Roll club, road light, front grille, front/rear bumper, side-step, diff guard, tires and muffler feature metal-plated finish.

ADD LED LIGHTS (SOLD SEPERATELY) Use Multi-Function Unit to depict working headlights, tail lights and move club lights even for more incredible realism.

MULTI FUNCTION UNIT This Multi Function device brings a lot more satisfaction towards procedure regarding the R/C Ford F350. Featuring realistic sound impacts recorded from real automobiles, controllable Light-emitting Diode lights alongside motion impacts, this product will greatly expand the potential of your Ford F350.

LADDER FRAME Durable and practical ladder frame consists of metal channel and resin cross member.

PROPELLER SHAFTS F/R propeller shafts function universal joint to effortlessly transfer energy even in the event suspension is moving up and down.

FAST BATTERY HOLDER

• Battery held in low place for exemplary fat balance and stability.
• Comfortable access holder allows operating battery to be exchanged without the removal of human body.

4WS STEERING ROD

• 4 wheel steering is enabled by the addition of kit provided rear axle stress rod.
• 4-wheel steering allows even tighter switching radius, perfect when working with truck inside or in restricted space.

WHEELS & TIRES

• Newly designed monster truck tires feature lug pattern suited for driving on rough surfaces.
• Apply concrete to tires and tires when running on rough terrain.
• Exhausted wheel hubs could be changed with #53056 Pin type Wheel Adapter.

3-SPEED TRANSMISSION

Newly created 3-speed transmission provides
smooth low rate running, and permits gear
changing while running.

Includes slipper clutch as standard part to protect
gears during tough off road running

DIFFERENTIAL GEAR Durable resin gear case with integrated die-cast differential gear.

DIFFERENTIAL LOCK

• Differential lock, required for driving on rough roads, can be easily enabled by simply getting rid of F/R diff case covers and getting rid of screw pins.
• By using differential lock, drive power is transmitted even in the event tires on one part aren't grounded.

LEAF SPRING SUSPENSION F/R suspension with friction dampers enables tension modification by altering wide range of leaf springs.

FRICTION DAMPERS

• Features red anodized aluminum cylinder. Damping impact is modified by making use of separately available Friction Damper Grease and adding o-rings. Choose in accordance with ground conditions and leaf spring quantity.
• Standard: normal operating Default settings.
• Smooth: low-speed, high hold operating Use 2 leaf springs and adjust tension using damper oil (soft) #53174.
• Tricky: stable and high-speed operating usage 5 leaf springs and apply damper oil (medium) #53175 or (difficult) #53176.

BEARINGS

• Kit includes an overall total of 42pcs of steel bearings(bushings) (35pcs x 1150, 4pcs x 1260, 2pcs x 850 size metal and 1pc of 1050 size ball bearings).
• Metal bearings require periodic application of grease to keep performance. Individually available ball bearings cannot require this therapy, and therefore are recommended.

MOTOR

• This kit was created to be utilized only with pre-supplied kind 540 motor and pinion gear.

NEEDED ITEMS (NOT INCLUDED) BROADCAST CONTROL UNIT TRANSMITTER, RECEIVER, ELECTRONIC SPEED CONTROLLER (ESC), STEERING SERVO & SHIFT SERVO

• Requires 4-channel, 2-servo digital proportional R/C unit with electronic speed controller with variable ahead and reverse function.
• Utilization of Futaba Attack 4WD (4ch) or stick kind transmitter with slide trim is preferred to perform gear modification while running. The Airtronics VG400/600 model radios are capable as they function fall trim and self basic control sticks.
• 2ch R/C product may not be used as it cannot shift gears.
• PCM kind receiver may possibly not be utilized as it might cause radio disturbance when using with separately available Multi Function Device.

• Make use of high power kind ESC with reverse function (optimum continuous current: forward 120A, reverse 60A, FET legislation).
• A high-spec ESC is particularly recommended whenever running on rough surface.
• TEU-302BK Electronic Speed Controller (PRODUCT 45028) is preferred.
• Not for use with TEU-101BK Electronic Speed Controller.

• While standard type steering servo is adequate, high torque servo is recommended whenever operating on rough terrain.
• Usage of ITEM 50473 Tall Torque Servo Saver White or ITEM 51000 High Torque Servo Saver Ebony will further enhance efficacy.
• Don't use small, big or high-speed servo.

• Tamiya 7.2V running battery pack (ITEM TA201)
• Eight R6/AA/UM3 batteries for transmitter.

Battery and Radio information 1. Any Tamiya 7.2V battery enables you to power the vehicle. Various milliampere-hour (mAh) values may effect the quantity of operating time enabled by the battery. Including, 7.2V 1400SP battery pack should ordinarily enable ten to fifteen mins of operating time. However, please note that actual running time may decrease as a result of extended complete throttle as well as other high power running.

2. the next 4-channel R/C unit (self-neutral stick kind transmitter/receiver) is advised for maximum operation: FUTABA ATTACK 4WD (T4VWD/FP-R114H) The Airtronics VG400/600 model radios are also capable as they function slip trim and self neutral control sticks.

Remember that using an R/C device without a self-neutral system may increase difficulty of procedure. Without self-neutraling networks (springtime loaded sticks) the operator is left to focus the throttle and steering minus the help of self-centering springs, which makes driving the vehicle harder than it demands to be.

4-channel wheel-type transmitters may be used with ITEM 58372, but will never be in a position to be used with kit equipped with Multi-Function product (become released).

PPM receivers are recommended for usage with this particular kit.
PCM receivers aren't appropriate for kit designed with Multi-Function Unit.

Other makers' radio control devices of 4 or higher channels can be used, but might not realize the maximum functioning with this kit.
Suggested utilization of comparable R/C device as used with ITEM 56511 Tractor Truck Multi-Function Control

ELECTRIC KITS NEED: (unless claimed differently above)

• Broadcast: 2-Channel with servo(s)
• Battery: 6-cell flat with standard Tamiya connector
• Charger: AC/DC timed or top for 6-cell battery
• Paint: PS for Polycarbonate/TS for ABS
• Misc. Products: Building and track gear
