The 4WD Raybrig NSX 2000 Kit produced by Tamiya in 1/10 scale with TB-01 chassis AWD drivetrain assembly kit, is classified in R/C Models - On-Road - Touring Cars - Electric Powered
NSX racers are dominating the 2000 Japanese GT Championships (JGTC). Within the team, the popular Raybrig NSX devices are displaying a blue and gunmetal human body. Kit replicates the attractive automobile with competitive electric powered TB-01 chassis. This form of TB-01 is made for On path Racing and features lightweight components including drive train.
Longitudinally mounted motor/Shaft drive 4WD Chassis Kit incorporates TB-01 Chassis which does really efficient energy transfer by longitudinally engine mounting and shaft drive 4WD. The tough chassis is comprised of bathtub kind main framework and upper frame. Another function is its low center of gravity by the flat mounting of RC system and battery pack. This structure plays a role in stable running.
4 Wheel Independent Suspension with Oil Dampers Double wishbone suspension adopts oil dampers for smooth shock absorption. Kit includes one piece, 6 talked tires and pneumatic slick tires.
Lightweight Elements For better on-road performance, model incorporates newly developed aluminum propeller shaft and lightweight ring gears. Owing to these improvements, the chassis vehicle weighs 130g lighter versus original rally variation, used for the RC Mitsubishi Lancer Evolution VI WRC.

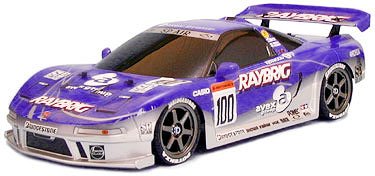

Aerodynamic and Realistic Body The sleek human body is replicated with polycarbonate. It is aerodynamically sensible the same as its initial counterpart. In addition to sponsor markings, kit includes blue and gunmetal stickers to help relieve the painting associated with body.
Diversity of Hop-up Optional Parts It is crucial to tune your machine to many different courses. A diversity of hop-up choices and extra components are available for TB-01 chassis.
Model Specifications
- Overall Length: 434mm
- General Width: 194mm
- General Height: 120mm
- Body weight Fully Equipped: 1,640g (including TP-S3003 Servo, CPR device and RC2400SP Battery)
- Wheelbase: 257mm
- Tread (front/rear): 155/164mm
- Chassis Material: ABS
- Chassis Type: Bathtub Frame
- Steering Tie Rods: three portions
- Suspension system: front and rear double wishbone
- Caster Angle (front/rear):10�/0�
- Camber Angle (front/rear): adjustable
- Toe Angle (front/rear): variable/2�
- Dampers (front/rear): CVA oil dampers
- Drive Train: shaft drive 4WD with longitudinally installed engine
- Gear Ratio: 7.94:1(9.91- 5.72)
- Diff. Gear System: front side and rear 3 bevel gear differentials
- Speed Controller: Mechanical speed controller included
- Tire Width (front and rear): 27mm
- Tire Diameter (front/rear): 65mm
- Tread Pattern (front side and back): race slick
- 540 type motor included
Needed Things (Individually Available)
- RC System:Adspec GT-II (standard system to be used with kit included mechanical rate controller),or Adspec GT-I (which is sold with electronic rate controller), or comparable 2-channel RC system.
- Battery: Tamiya 7.2V Racing Pack
