The Mammoth Dump Truck produced by Tamiya in 1/20 scale Other Trucks series AWD drivetrain assembly kit, is classified in R/C Models - Off-Road - Monster Trucks
Tamiya 58268 - 1/20 RC Mammoth Dump Truck

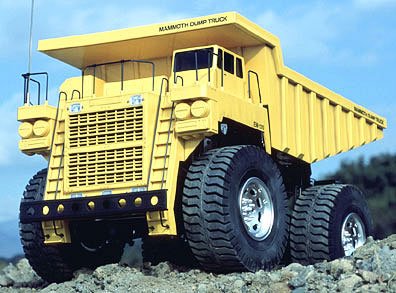

Here is the Tamiya 1/20th Scale Electrical, Radio Controlled Mammoth Dump Truck.
This high quality kit is founded on the earthshaking mammoth dump trucks found in large scale mining and other high quality jobs.
FEATURES:
Effective shaft driven 4WD.
Two motors; one 540 size to drive the wheels; one smaller motor with worm gear shaft for dump body operation.
Kit uses two channel radio for many functions, to boost bed end automobile and steer suitable for one or more second, return steering
to neutral to get rid of increasing, steer kept for bringing down. No importance of expensive three channel radios.
Fully operational dump body can take as much as 8.8 pounds (4kg) of product for dumping.
Durable die-cast gears housed in the front and rear sealed gearboxes.
Four wheel suspension built with coil and leaf spring surprise units.
Durable Juggernaut 2 Monster Truck chassis.
Cab and dump body are molded in shock resistant plastic.
6-1/8" (156mm) diameter 2-3/8" (60mm) wide rubber tread tires pre- mounted on plastic metal finish tires.
INCLUDES:
One 1/20th Scale Electric Radio Control Mammoth Dump Truck with electronic speed control with Futaba J receiver plugs and Standard battery pack connectors, 6-1/8" (156mm) x 2-3/8" (60mm) rubber tread tires pre-mounted on plastic metal finish tires, one tube thread locking compound, one 4-way wrench, two pipes of oil, plastic ties, flat blade screwdriver, human body pins, dual sided tape, two hex wrenches.
REQUIRES:
Radio: 2 channel pistol hold with two servos.
Battery: 7.2v flat stick pack.
Tools: large and little blade phillips screwdrivers, tweezers, modeling blade, long nose pliers, part cutters, scissors, pin vise
and plastic concrete.
SPECS: Length: 20-5/8" (525mm)
Width: 11-5/8" (295mm)
Height: 11-13/16" (300mm)
fat: 12.2 lbs (5.5kg)
REVIEWS:
For replacement bearings use:
1- 5x8 Gear Assembly
3- 5x11 Gear Assembly
1- 5x8 Counter Gearbox
1- 5X11 countertop Gearbox
1- 6x12 Driveshafts
2- 6x12 Front Uprights
2- 6x12 Rear Uprights
2- 3x7 Rack Gearbox
1- 5x8 Rack Gearbox
1- Tamiya MV1 4mm flanged metal bearing Rack Gearbox
2- Tamiya MV1 4mm flanged steel bearing L & R Rack Case Assem.
1- 5x8 L & R Rack Case Assembly
