Tamiya 58274 - 1/10 TA04-S Chassis Kit  [58274]

Tamiya 58274 - 1/10 TA04-S Chassis Kit
Price:
USD$88.57
Brand:
Tamiya
Model:
58274
Please kindly input your name and email address, we will inform you once we have the restocking.
Or you may find similar product under the
R/C Models - On-Road - Touring Cars - Electric Powered category
Write a review
The Kit produced by Tamiya in 1/10 scale with TA04-S chassis AWD drivetrain assembly kit, is classified in R/C Models - On-Road - Touring Cars - Electric Powered

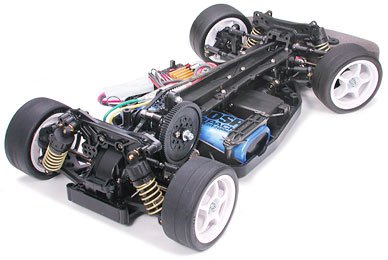

Tamiya 1/10 TA04-S Chassis Kit

Tamiya gift suggestions the high-performance, recreations version of the favorite TA04 framework used by R/C enthusiasts of most ages and degrees of experience. Built to race, this chassis comes with a full ball-bearing set to minimize drive loss and employs adjustable turn buckle shafts. The high effectiveness 2 gear 4WD system, the 4-wheel double wishbone suspension, additionally the hardened resin double deck frame of this TA04 were left unchanged. Just choose the body and motor of your option and you'll have taken your first step into the world of true R/C race!

Complete Ball-Bearings

The framework has ball bearings not merely in the drive shaft, however in the steering hands as well. This enables for smoother driving and increased durability. Maintenance is created easier besides.


Loaded with Turn-Buckle Shafts

The leading and rear upper hands, steering tie rods, and steering linkage all use change buckle shafts. The size of the shafts could be adjusted without treatment for easy steering shaft adjustment.


2 Belt 4WD

The TA04-S chassis employs a top effectiveness 2 gear drive 4WD system with an 83T spur gear. *Motor not included.


Specs

  • General Length: 365mm
  • Overall Width: 184mm
  • Clearance: 8mm
  • Weight Fully Equipped: 1,517g (dimension includes TP-S3003 servo, CPR device and RC2400SP Battery.)
  • Wheelbase: 257mm
  • Tread F/R: both 162mm
  • Chassis Material: ABS/Polycarbonate
  • Chassis Shape: Double Deck Frame
  • Steering Tie Rod: 3 part
  • Suspension: Front and Rear Double Wishbone
  • Caster Angle-F/R: 10deg/2deg
  • Camber Angle-F/R: adjustable
  • Toe Angle-F/R: adjustable/2deg
  • Damper: F/R CVAMiniII
  • Transmission Type: 2 Belt Mid-ship Full-time 4WD
  • Gear Ratio: 7.08:1 (kit standard)
  • Diff. gear system: F/R 3-Bevel Diff
  • Suggested Speed Controller: Electronic Speed Controller
  • Tire Width: F/R both 26mm
  • Tire Diameter: F/R both 64mm
  • Tread Pattern: F/R Slicks
