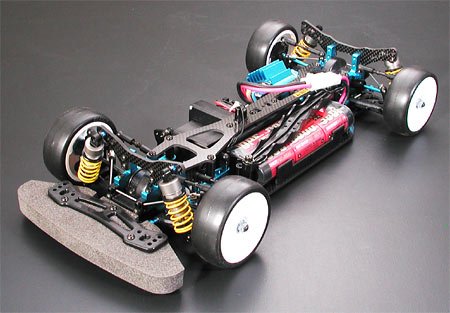

The TB Evolution 4 / IV TB Evo IV Kit produced by Tamiya in 1/10 scale TRF series AWD drivetrain assembly kit, is classified in R/C Models - On-Road - Touring Cars - Electric Powered
Presenting the fourth edition associated with the powerful TB Evolution R/C racing automobile. The TB Evo IV was developed based on racing performance of the TB Evo III and motorist feedback, causing a chassis featuring the total great things about the newest R/C rushing technology such as newly designed aluminum bulkhead, a sealed bevel gear cover to protects gears from dust and rocks on a patio circuit and a far more durable bevel gear developed from a unique carbon based material. The model can be equipped with 2.5mm thick lower and 2mm thick top carbon frames.
Towards TB Evolution IV
- Newly designed aluminum bulkhead to firmly secure drive train while increasing gear performance.
- A sealed bevel gear cover protects gears from dirt and rocks on an outdoor circuit.
- Features a far more durable bevel gear developed from a unique carbon based product.
- Aluminum propeller shaft happens to be created as a 3-piece shaft, reducing speed loss triggered by friction during framework roll.
- Suspension system happens to be completely upgraded for improved cornering with brand new lightweight and much more compact suspension system supply, hub provider and front/rear upright.
- Increased damper attachment settings for effortless damper modification, allowing damper to suit your driving design.
- Kit includes medium slim race slick tires.
- Engine and human body maybe not included
The Reedy Touring Car Race winning TB Evolution IV is currently available! The shaft driven 4WD TB Evolution racing framework simply keeps enhancing, setting new criteria within the R/C globe. Based on information extracted from real race performances by Tamiya's factory team, Tamiya Racing Factory (TRF), vital components happen redesigned to bring you the greatest powerful racing framework. The primary concept behind the TB Evolution IV would be to improve drive train efficiency and minimize fat around the suspension system. Drive train efficiency is crucial for competition, especially in stock course and 19 turn spec groups. The end result is a fine-tuned high-performance framework that's the ultimate weapon for any expert driver.
Solid Chassis Design For solid Chassis Design, the 2.5mm lower deck and 2.0mm upper deck are created from Carbon Fiber Reinforced Polymer (CFRP). To help expand reinforce the chassis framework the TB Evo IV additionally is sold with aluminum front and back bulkheads, enabling you to obtain the full great things about the enhanced drive train. These bulkheads additionally enable fast access towards differentials for easy maintenance. Kit also includes 2 types of hub providers to pick from, allowing choice of a 2� or 4� caster angle.
3-Piece Propeller Shaft A fresh 3-piece lightweight aluminum propeller shaft decreases friction due to framework roll. Combined with the front one-way bearing, rate destroyed when not accelerating has additionally been paid off enhancing long distance performance. Blue anodized aluminum engine heat sink greatly improves temperature dissipation minimizing the side effects of an overheated motor.
Option Loaded Back Suspension Utilizing the standard suspension mount, back toe-angle is set at 3�, nonetheless by adding Tamiya's up-grade suspension system mount (sold individually) it is possible to raise the selection of 6 toe-angle settings including 0.5-3�. For lots more accurate damper settings, standard front and rear lower hands may be reversed increasing damper pivot choices to a total of 5 jobs.
Choice Parts To Get Optimum Performance
| Item No. | Product Name |
| 49345 | TB Evolution IV Titanium Screw Set (limited release) |
| 53709 | Fluorine Coated Suspension Ball (8 pcs.) |
| 53712 | TB Evolution IV Suspension Mount X (Blue) |
| 53713 | TB Evolution IV Suspension Mount A (Blue) |
| 53714 | TB Evolution IV Suspension Mount B (Blue) |
| 53715 | TB Evolution IV Suspension Mount C (Blue) |
| 53716 | TB Evolution IV Suspension Mount D (Blue) |
| 53717 | TB Evolution IV Suspension Mount E (Blue) |
| 53718 | TB Evolution IV Titanium Wheel Axle |
| 53719 | TB Evolution IV Lightweight Propeller Joint Shaft (F) |
| 53720 | TB Evolution IV Lightweight Propeller Joint Shaft (R) |
| 53721 | TB Evolution IV Aluminum One-Way Ring Gear |
| 53722 | TB Evolution IV Stabilizer Rod Set |
| 53723 | TB Evolution IV Aluminum Servo Mount (Blue) |
| 53724 | TB Evolution IV 46mm Lightweight Swing Shaft |
| 53726 | Dia. 6mm Shim Set (3 Types / 10pcs. Each) |
Basic Specifications
- Overall size: 366mm
- Total width: 189mm
- Clearance: 5mm
- Weight Fully-Equipped: 1,440g (Measurement includes TP-S3003 servo, TRF2002 ESC, RC-3600HV Battery and Super inventory Type-T engine)
- Wheelbase: 257mm
- Tread: 163mm (Front & Rear)
- Chassis Material: CFRP
- Chassis Shape: Double-Deck Frame
- Steering Tie Rod: 3 component
- Suspension: Double Wishbone (F&R)
- Caster Angle: 4� (F) / 0� (R)
- Camber Angle: Adjustable (F&R)
- Toe Angle: Adjustable (F) / 2-3.5� (R)
- Skid Angle: 0� (F&R)
- Damper: TRF Super Minimal Friction Dampers (F&R)
- Drive train: Shaft Driven Full-time 4WD
- Gear Ratio: 6.48:1, 6.07:1 (standard)
- Diff. gear system: One-Way (F) / Ball-Diff (R)
- Speed Controller: Electronic Speed Controller
- Tire Width: 24mm (F&R)
- Tire Diameter: 64mm (F&R)
- Tread Pattern: Slicks (F&R)
Necessary Products (Available Separately)
- Body
- RS-540 Type Engine
- R/C product: Adspec GT-I or 2-channel R/C system with electronic rate control
- Battery: Tamiya 7.2V Racing Pack or comparable
